Digital Radio Antenna Replacement

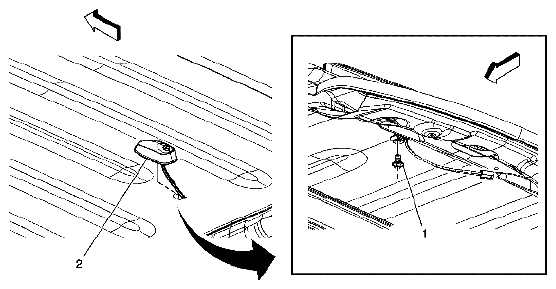

Fig 1: Identifying Digital Radio Antenna Base Assembly And Bolt

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME DESCRIPTION

Callout	Component Name
CAUTION: Refer to FASTENER NOTICE . Fastener Tightening Specifications: Refer to FASTENER TIGHTENING SPECIFICATIONS - CELLULAR, ENTERTAINMENT, AND NAVIGATION .Preliminary ProcedureLower the rear of the headliner. Refer to HEADLINING TRIM PANEL REPLACEMENT .
1	Digital Radio Antenna Base Bolt Tightening torque 5 N.m (44 lb in)
2	Digital Radio Antenna Base Assembly Tip: Disconnect electrical connections.
