Digital Radio Antenna Cable Replacement

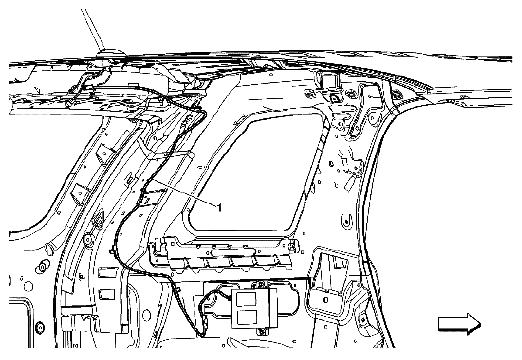

Fig 1: Identifying Digital Radio Antenna Cable

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME DESCRIPTION

Callout	Component Name
Preliminary Procedure Lower the rear of the headliner. Refer to HEADLINING TRIM PANEL REPLACEMENT .
1	Digital Radio Coaxial Cable Procedure Disconnect all electrical/antenna connections. When the original antenna is wrapped in the vehicle wiring harness perform the following steps: Cut both ends off the original antenna cable. Route the new antenna next to the vehicle wiring harness and secure with tie straps.
