Automatic Transmission Controls Schematics (Hatchback)

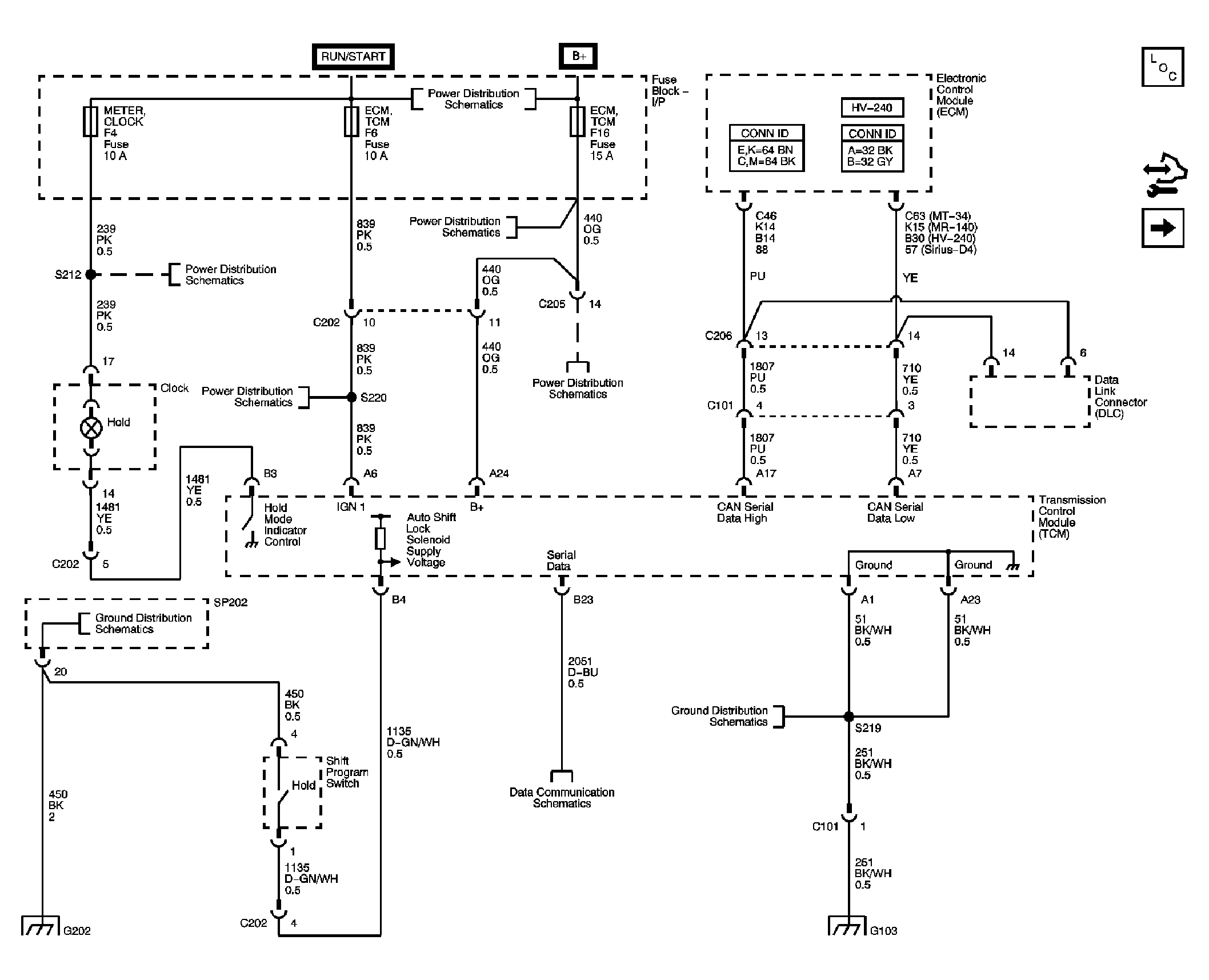

Fig 1: Transmission Control Module

Courtesy of GENERAL MOTORS CORP.

Fig 2: Stop Lamp Switch And Transaxle Valves

Courtesy of GENERAL MOTORS CORP.

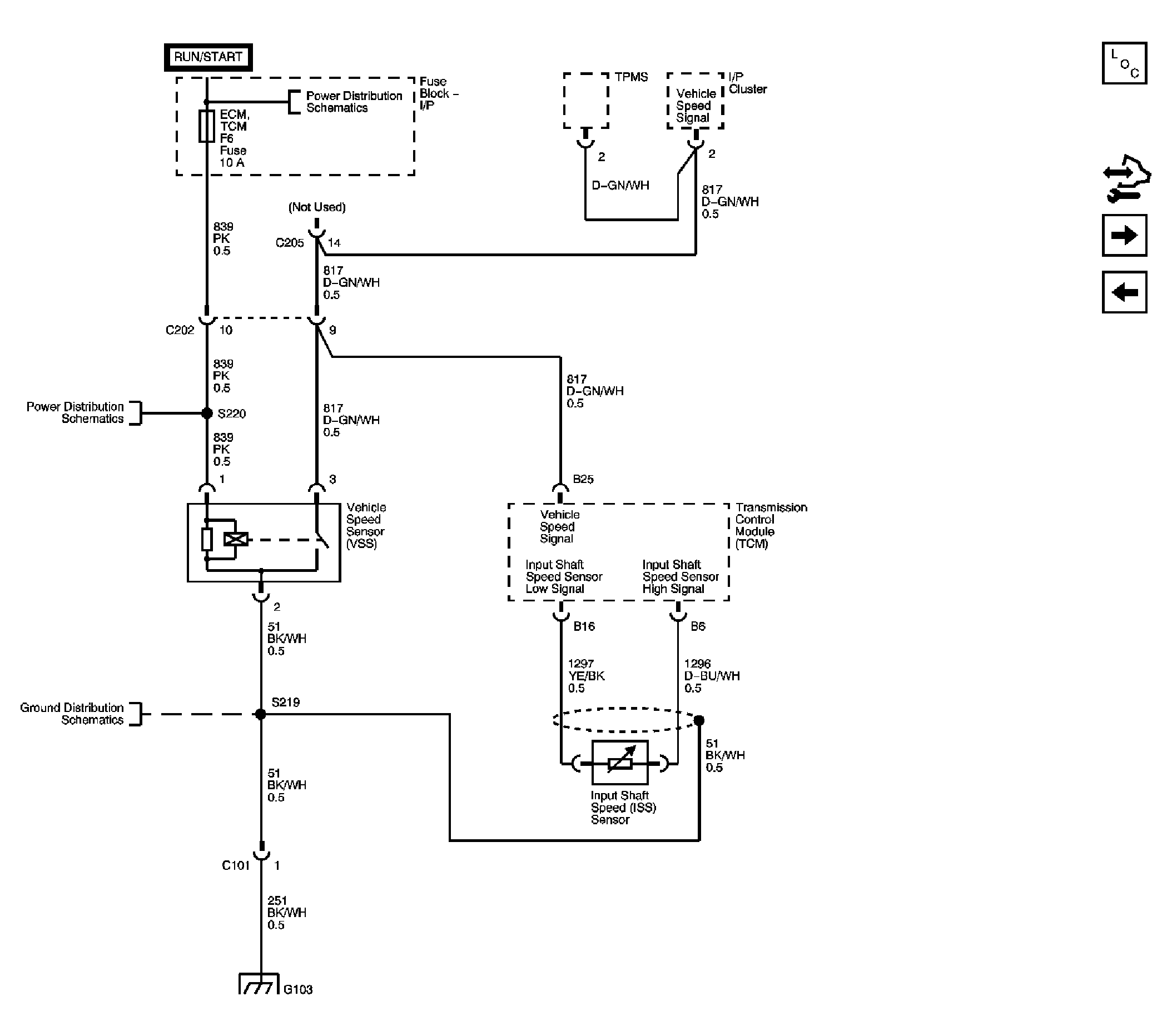

Fig 3: Transmission Control Module, VSS

Courtesy of GENERAL MOTORS CORP.

Fig 4: PNP Switch

Courtesy of GENERAL MOTORS CORP.
