Shift Select Control

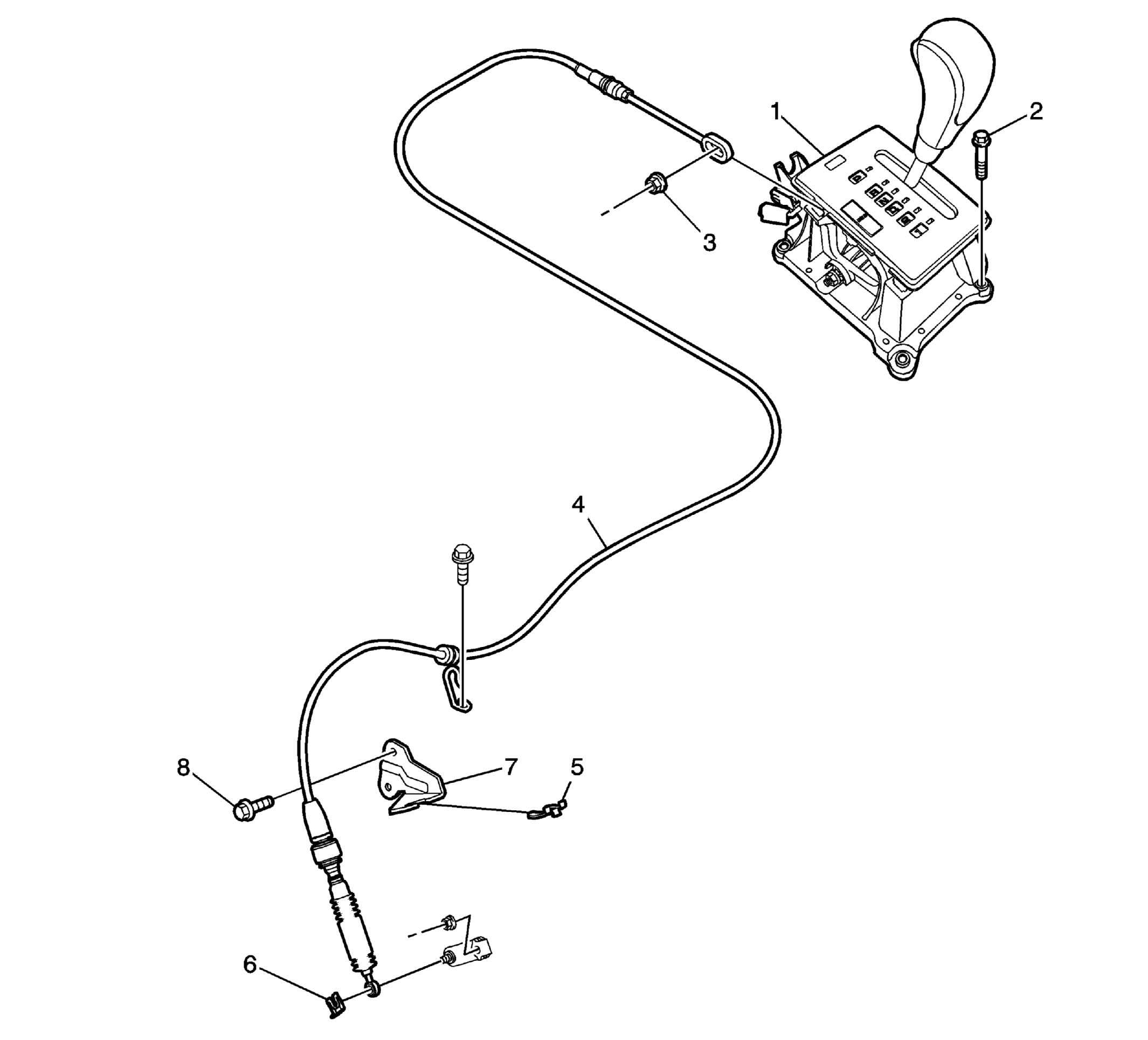

Fig 1: Shift Select Control Mechanism & Cable
GM1889746Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Select Control Lever Assembly
2 Bolt
3 Nut
4 Select Control Cable
5 Clamp
6 E-Ring
7 Cable Fastener
8 Bolt
