Installation Procedure

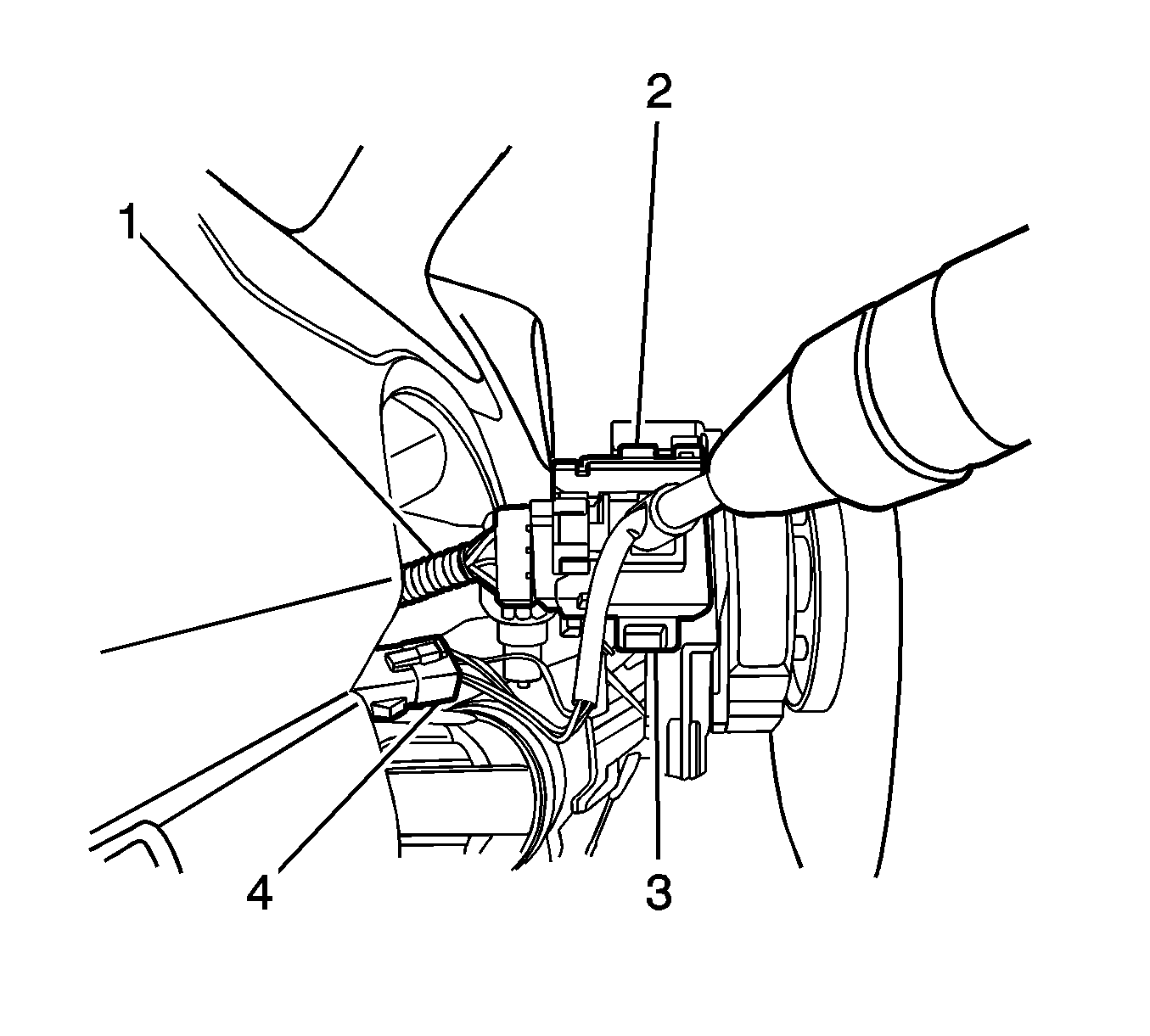

    Fig 1: Turn Signal Switch
    GM1715990Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors (1, 4) to the turn signal switch.
  2. Install the turn signal switch into the switch housing.

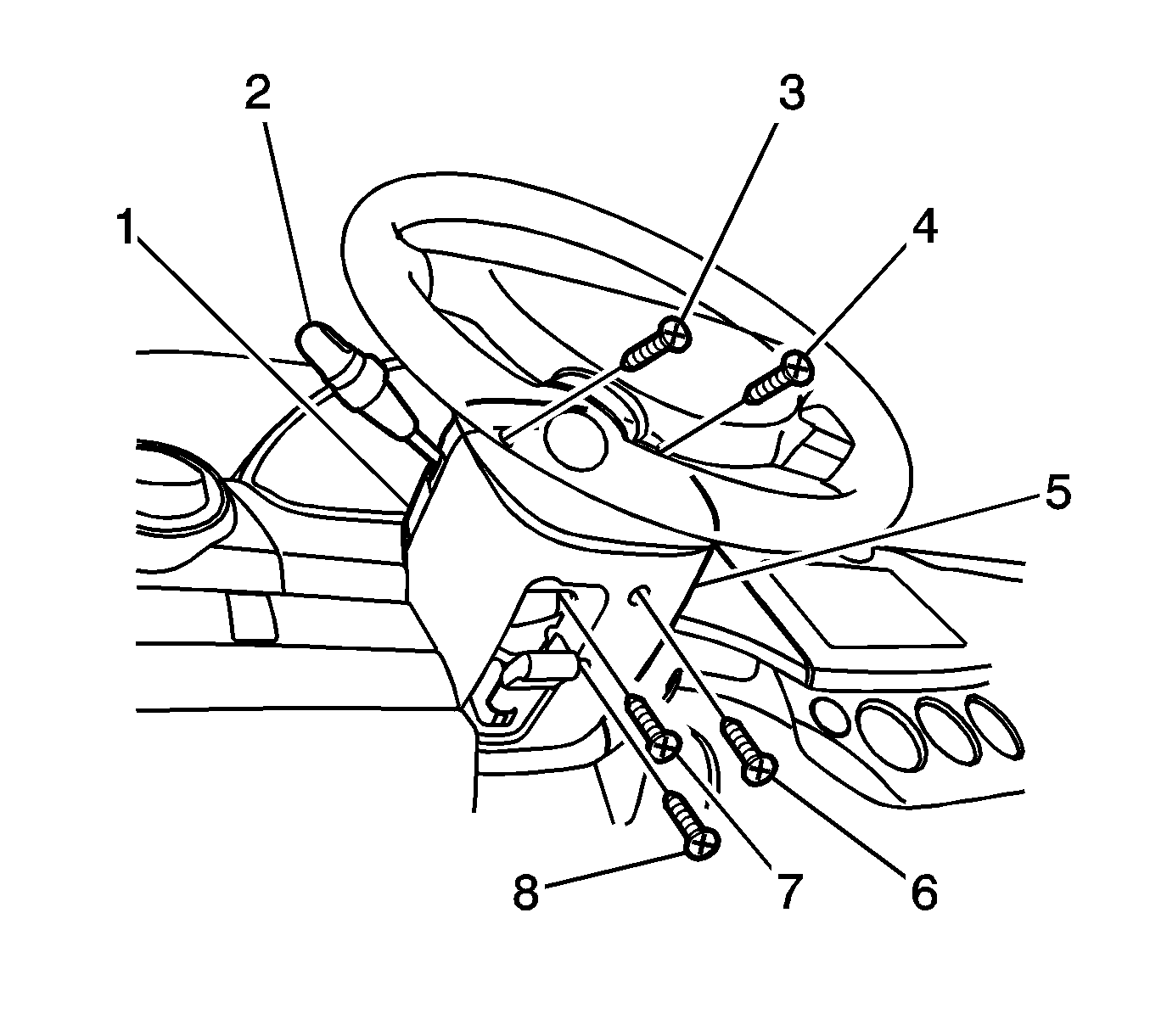

    3. Fig 2: Steering Column Panels
    GM1715979Courtesy of GENERAL MOTORS CORP.
  3. Install the upper steering column cover panel (1) and the lower steering column cover panel (5).
    4. NOTE: Refer to Fastener Notice .
  4. Install the lower steering column cover panel screws (6, 7, 8).

    Tighten:  Tighten the lower steering column cover panel screws to 3 N.m (27 lb in).

  5. Turn the steering wheel in order to access the upper steering column cover panel screw holes. Install the upper steering column cover panel screws (3, 4).

    Tighten:  Tighten the upper steering column cover panel screws to 3 N.m (27 lb in).

  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
