Inline Harness Connector End Views (Notchback)

C105 Engine Harness to ECM Harness

GM1500902Courtesy of GENERAL MOTORS CORP.
GM1500900Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651068
  • 3-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641071-1
  • 3-Way M 090-II Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 YE - Serial Data Signal 1 YE - Serial Data Signal
2 PU - Serial Data Signal 2 PU - Serial Data Signal
3 BK - Ground 3 BK - Ground
C204 I/P Harness to Engine Harness

GM1479770Courtesy of GENERAL MOTORS CORP.
GM1467071Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651350
  • 18-Way F 090-II (WH)
 Connector Part Information
  • KET MG 641353
  • 18-Way M 090-II (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 D-GN/WH - Vehicle Speed Sensor Signal 1 D-GN/WH - Vehicle Speed Sensor Signal
2 WH - Tachometer Signal 2 WH - Tachometer Signal
3 BN - Charge Indicator Lamp Output 3 BN - Charge Indicator Lamp Output
4 BN/WH - Check Engine Indicator Lamp Output 4 BN/WH - Check Engine Indicator Lamp Output
5 BN - Ignition 2 Voltage 5 BN - Ignition 2 Voltage
6 YE (M/T) - Ignition Switch Output - Crank 6 YE - Ignition Switch Output - Crank
PU (A/T) -
7 D-GN - Coolant Temperature Sensor Signal 7 D-GN - Coolant Temperature Sensor Signal
8 D-BU - Fuel Gage Sensor Signal 8 D-BU - Fuel Gage Sensor Signal
9 L-BU - Fuel Gage Sensor Ground 9 L-BU - Fuel Gage Sensor Ground
10 L-BU - Evaporator Temperature Sensor Signal 10 L-BU - Evaporator Temperature Sensor Signal
11 D-BU - Low Reference 11 D-BU - Low Reference
12 BN - Oil Pressure Switch Signal 12 BN - Oil Pressure Switch Signal
BN - Oil Pressure Switch Signal
13 BK/WH - Serial Data 13 BK/WH - Serial Data
14 PU - Fuel Gage Sensor Signal 14 PU - Fuel Gage Sensor Signal
15 D-GN/WH - Air Conditioning Request Signal 15 D-GN/WH - Air Conditioning Request Signal
16 L-GN - Backup Lamp Feed 16 L-GN - Backup Lamp Feed
17 - - Not Used 17 - - Not Used
18 YE - Hi Beam Indicator Feed 18 YE - Hi Beam Indicator Feed
C205 I/P Harness to Engine Harness (MT34)

GM1911563Courtesy of GENERAL MOTORS CORP.
GM1911562Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG611809
  • 18-Way F 090-II Series (WH)
 Connector Part Information
  • MG621807
  • 36-Way M 090-II Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 YE - EVAP Vent Solenoid Control 1 YE - EVAP Vent Solenoid Control
2 BN/BK - Fuel Tank Pressure Sensor Signal 2 BN/BK - Fuel Tank Pressure Sensor Signal
3 OG/BK - Fuel Tank Pressure Sensor Signal 5-Volt Reference 3 OG/BK - Fuel Tank Pressure Sensor Signal 5-Volt Reference
4 PU - Stop Lamp Switch Output 4 PU - Stop Lamp Switch Output
5 GY - Cruise Control Switch Signal 5 GY - Cruise Control Switch Signal
6 YE - Cruise Indicator Control 6 YE - Cruise Indicator Control
7 L-BU - CPP Switch Signal 7 L-BU - CPP Switch Signal
8 GY - 5-Volt Reference 8 GY - 5-Volt Reference
9 GY - 5-Volt Reference 9 GY - 5-Volt Reference
10 BU - APP Sensor 1 Signal 10 BU - APP Sensor 1 Signal
11 OG/BK - Low Reference 11 WH - Low Reference
12 BN - Low Reference 12 BN - Low Reference
13 L-BU - APP Sensor 2 Signal 13 L-BU - APP Sensor 2 Signal
14 L-BU - Stop Lamp Switch Output 14 L-BU - Stop Lamp Switch Output
15-18 - - Not Used 15-18 - - Not Used

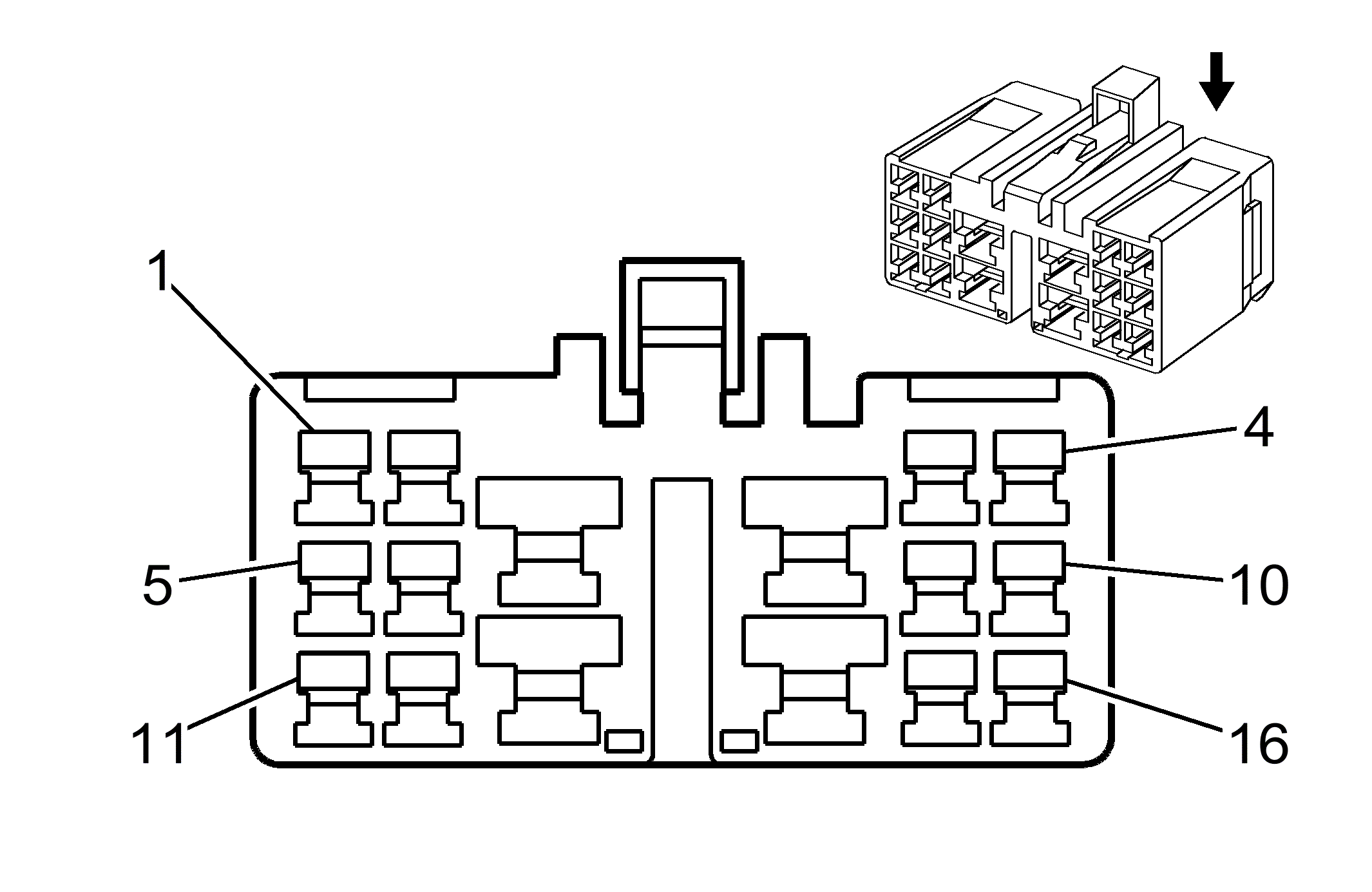

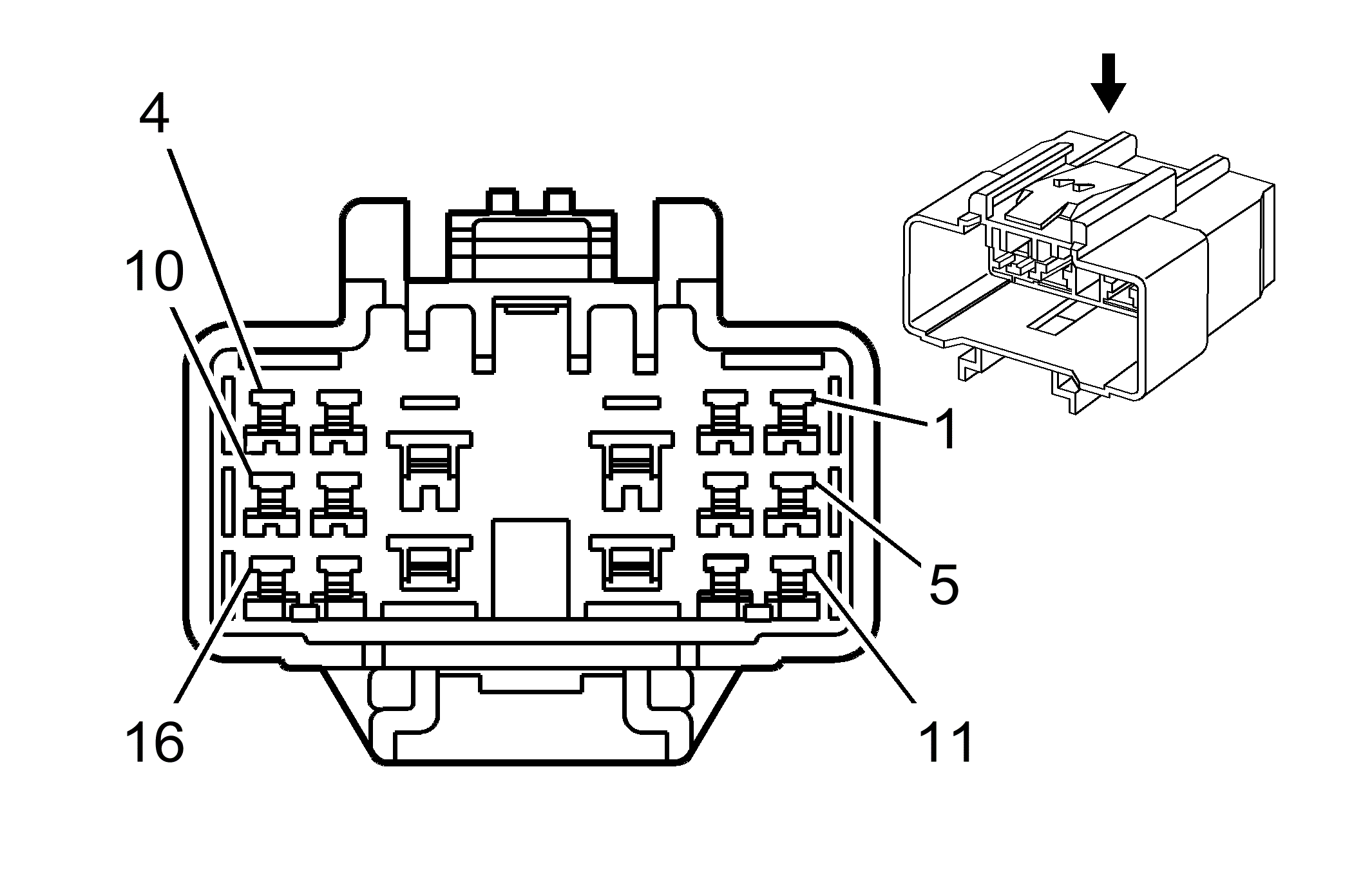

C206 TCM to I/P Harness

GM1500013Courtesy of GENERAL MOTORS CORP.
GM1500010Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651110-5
  • 10-Way F 090-II Series (BK)
 Connector Part Information
  • KET MG 641113-5
  • 10-Way M 090-II Series (BK)
Pin Wire Circuit Function Pin Wire Circuit Function
1 RD/WH - Battery Positive Voltage 1 RD/WH - Battery Positive Voltage
2 BN - Shift Solenoid Feed 2 BN - Shift Solenoid Feed
3 L-GN - Back-Up Lamp Feed 3 L-GN - Back-Up Lamp Feed
4 GN/WH - Brake Transmission Shift Interlock Solenoid Feed 4 GN/WH - Brake Transmission Shift Interlock Solenoid Feed
5 L-BU - Stop Lamp Feed 5 L-BU - Stop Lamp Feed
6 BK/WH - Serial Data 6 BK/WH - Serial Data
7 D-GN/WH - Vehicle Speed Signal 7 D-GN/WH - Vehicle Speed Signal
8 PK - Ignition 2 Voltage 8 BN - Ignition 2 Voltage
9 PK - Ignition 1 Voltage 9 PK - Ignition 1 Voltage
10 YE - Transmission Auxiliary Hold Signal 10 YE - Transmission Auxiliary Hold Signal

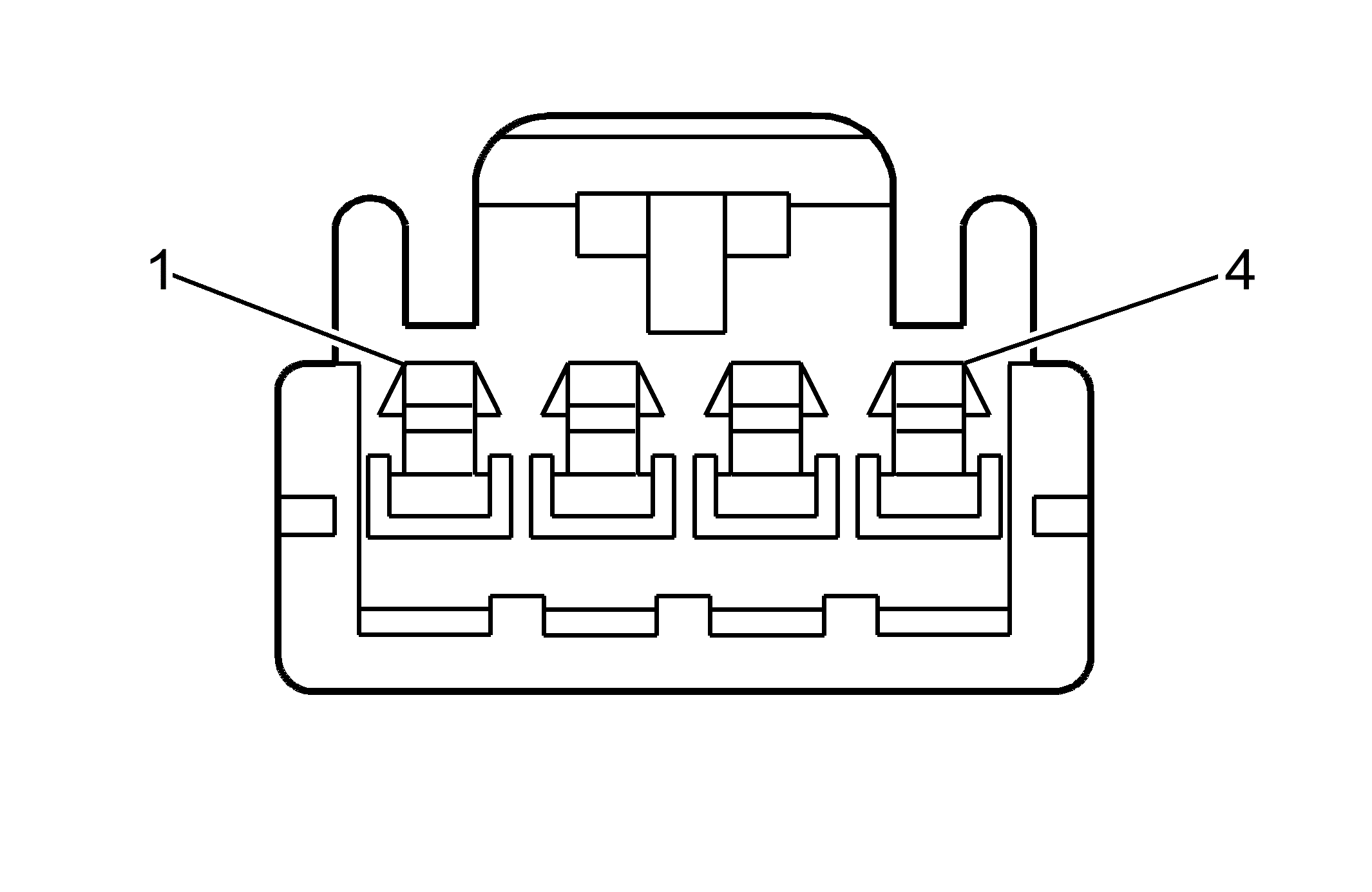

C207 Front Harness to I/P Harness (RHD)

GM1468378Courtesy of GENERAL MOTORS CORP.
GM1467103Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651926
  • 4-Way F 312-II Series (WH)
 Connector Part Information
  • KET MG 641928
  • 4-Way M 312-II Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 RD/BK - Battery Positive Voltage 1 RD/BK - Battery Positive Voltage
2 RD/BK - Battery Positive Voltage 2 RD/BK - Battery Positive Voltage
3 RD/BK - Battery Positive Voltage 3 RD/BK - Battery Positive Voltage
4 RD/WH - Battery Positive Voltage 4 RD/WH - Battery Positive Voltage

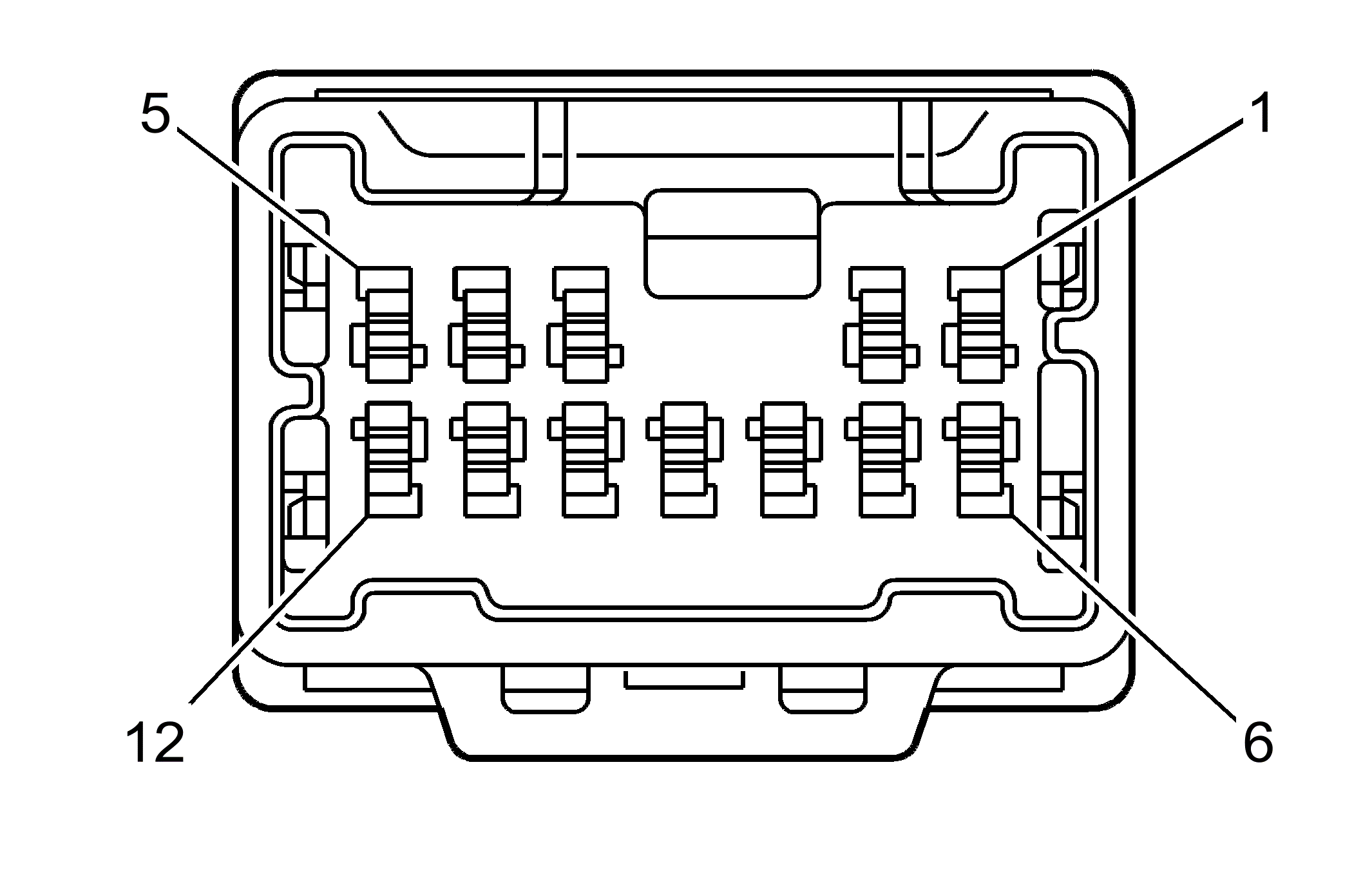

C207 Front Harness to I/P Harness (LHD)

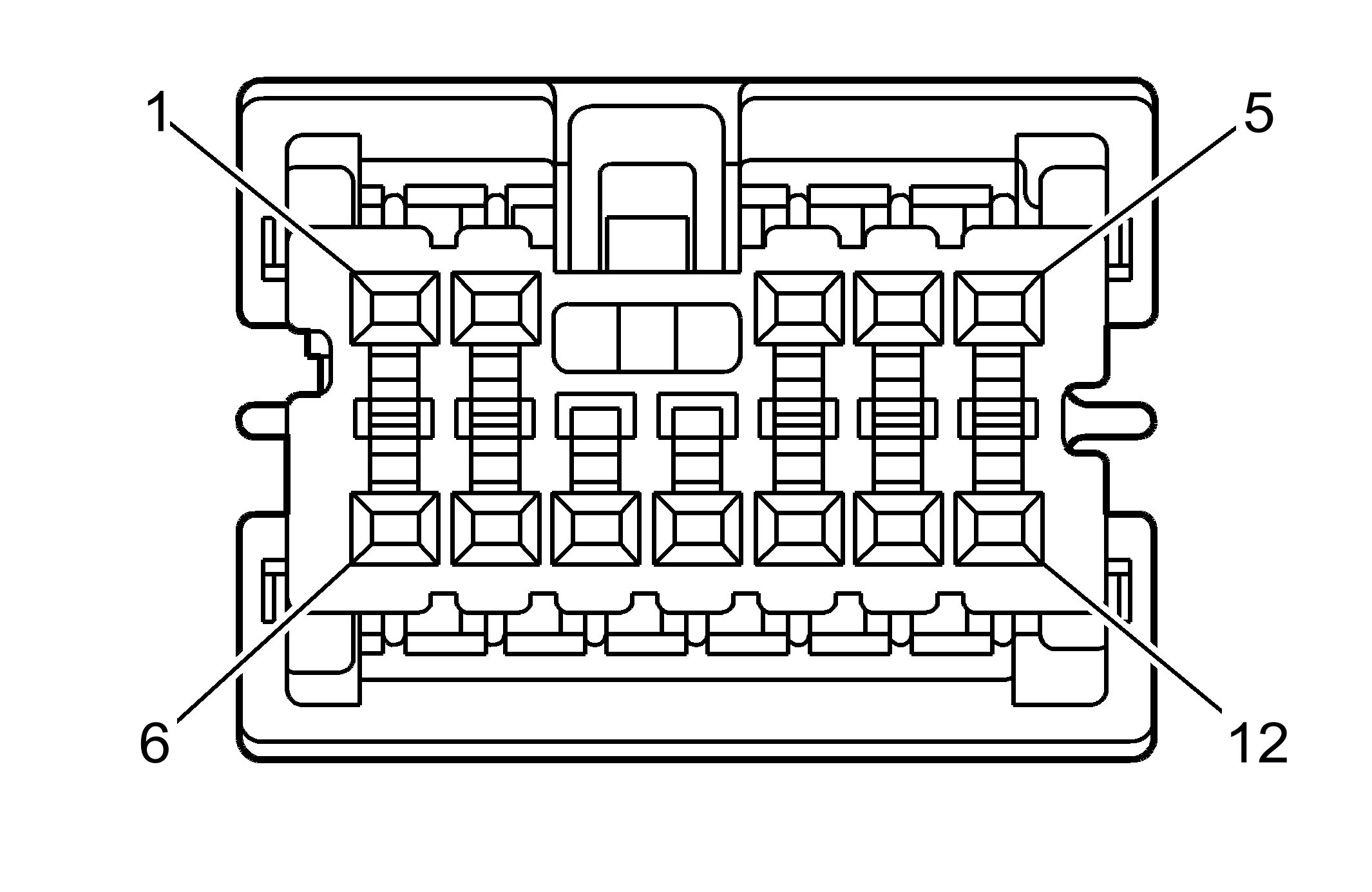

GM1908516Courtesy of GENERAL MOTORS CORP.
GM1911561Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG653012-4
  • 12-Way F 090-II Series (GY)
 Connector Part Information
  • MG643009-4
  • 12-Way M 090-II Series (GY)
Pin Wire Circuit Function Pin Wire Circuit Function
1 L-BU - Stop Lamp Switch Output 1 L-BU - Stop Lamp Switch Output
2 GN - Headlamp Leveling 2 GN - Headlamp Leveling
L-GN - SIR L-GN - SIR
3 PK/BK - Hood Open Signal 3 PK/BK - Hood Open Signal
4 YE - Siren Control 4 YE - Siren Control
5 BK/WH - Serial Data 5 BK/WH - Serial Data
6 GN/WH - Front Fog Lamp Relay Control 6 GN/WH - Front Fog Lamp Relay Control
7 YE - Front Fog Relay output 7 YE - Front Fog Relay output
8 L-GN - ABS Indicator Control 8 L-GN - ABS Indicator Control
9 YE/BK - SIR 9 YE/BK - SIR
10 YE - Ambient Temp Signal 10 YE - Ambient Temp Signal
11 L-GN/BK - Ground 11 BK - Ground
12 YE - SIR 12 YE - SIR

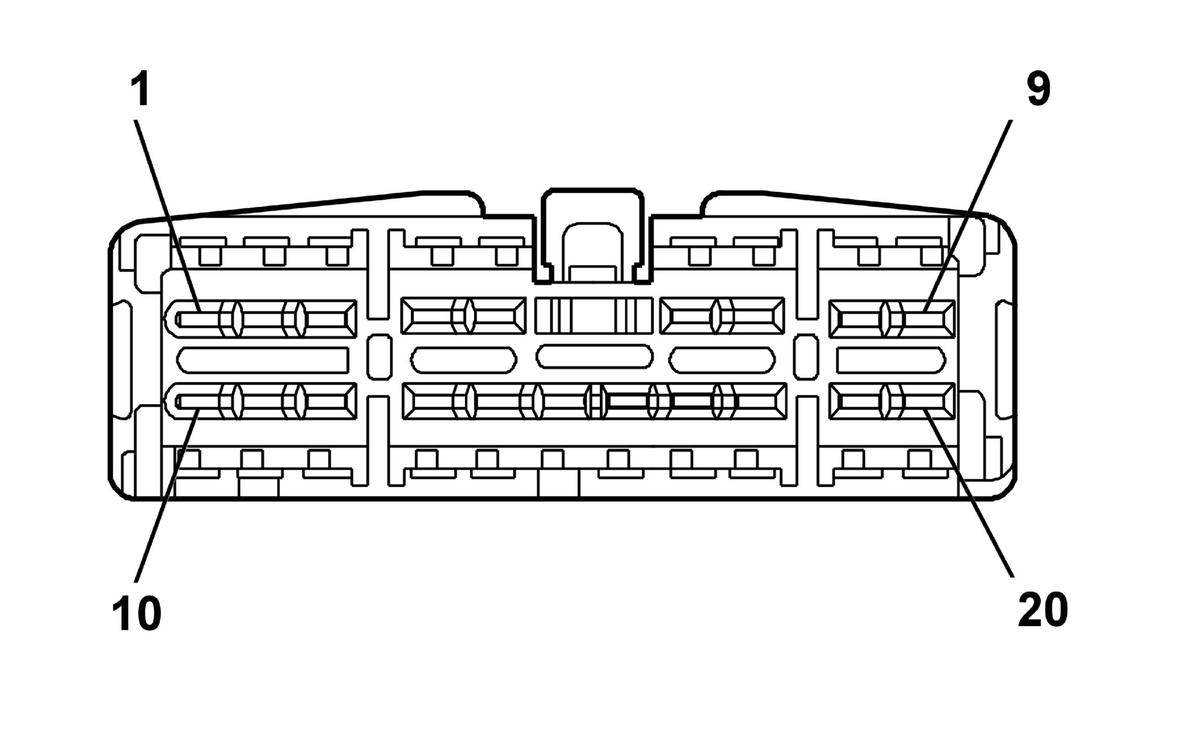

C208 I/P Harness to Front Harness (LHD)

GM1908518Courtesy of GENERAL MOTORS CORP.
GM1481271Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • HS015-20105
  • 20-Way F (OG)
 Connector Part Information
  • HS011-20105
  • 20-Way M (OG)
Pin Wire Circuit Function Pin Wire Circuit Function
1 BN - Wiper Relay Park Signal 1 BN - Wiper Relay Park Signal
2 D-GN - Front Wiper High Signal 2 D-GN - Front Wiper High Signal
3 D-BU - Hazard Switch 3 D-BU - Hazard Switch
4 L-BU - Headlamp Hi Relay Control 4 L-BU - Headlamp Hi Relay Control
5 WH - Illumination Relay Coil Supply 5 WH - Illumination Relay Coil Supply
6 BN/WH - Illumination Relay Output 6 BN/WH - Illumination Relay Output
7 L-GN/BK - Headlamp Low Relay Output 7 L-GN/BK - Headlamp Low Relay Output
8 PK - Ignition 1 Voltage 8 PK - Ignition 1 Voltage
9 PU - Front Wiper Motor Voltage 9 PU - Front Wiper Motor Voltage
10 PK - Ignition 2 Voltage 10 PK - Ignition 2 Voltage
11 BN - Brake Indicator Control 11 BN - Brake Indicator Control
12 PU - Ignition 1 Voltage 12 PU - Ignition 1 Voltage
13 BN/WH - High Beam Indicator Control 13 BN/WH - High Beam Indicator Control
14 BN - Horn Relay Output 14 BN - Horn Relay Output
15 PK - Front Washer Pump Signal 15 PK - Front Washer Pump Signal
16 RD/BK - Battery Positive Voltage 16 RD/WH - Battery Positive Voltage
17 PK - Ignition 1 Voltage 17 PK - Ignition 1 Voltage
18 RD/WH - Battery Positive Voltage 18 RD/WH - Battery Positive Voltage
19 L-BU - Left Turn Signal 19 L-BU - Left Turn Signal
20 WH - Headlamp Low Relay Control 20 WH - Headlamp Low Relay Control

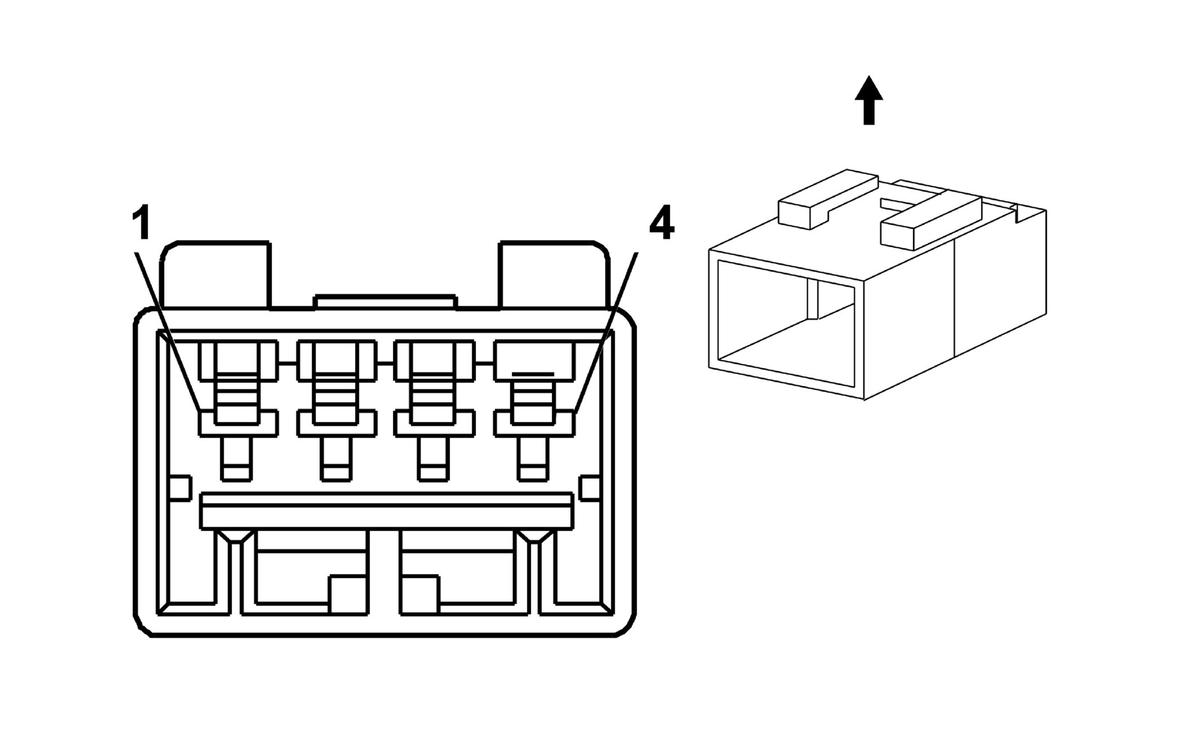

C209 Front Harness to I/P Harness (LHD)

GM1468378Courtesy of GENERAL MOTORS CORP.
GM1467103Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651926
  • 4-Way F 312-II Series (BK)
 Connector Part Information
  • KET MG 641928
  • 4-Way M 312-II Series (BK)
Pin Wire Circuit Function Pin Wire Circuit Function
1 RD/BK - Battery Positive Voltage 1 RD/BK - Battery Positive Voltage
2 RD/BK - Battery Positive Voltage 2 RD/BK - Battery Positive Voltage
3 RD/BK - Battery Positive Voltage 3 RD/BK - Battery Positive Voltage
4 - - Not Used 4 - - Not Used

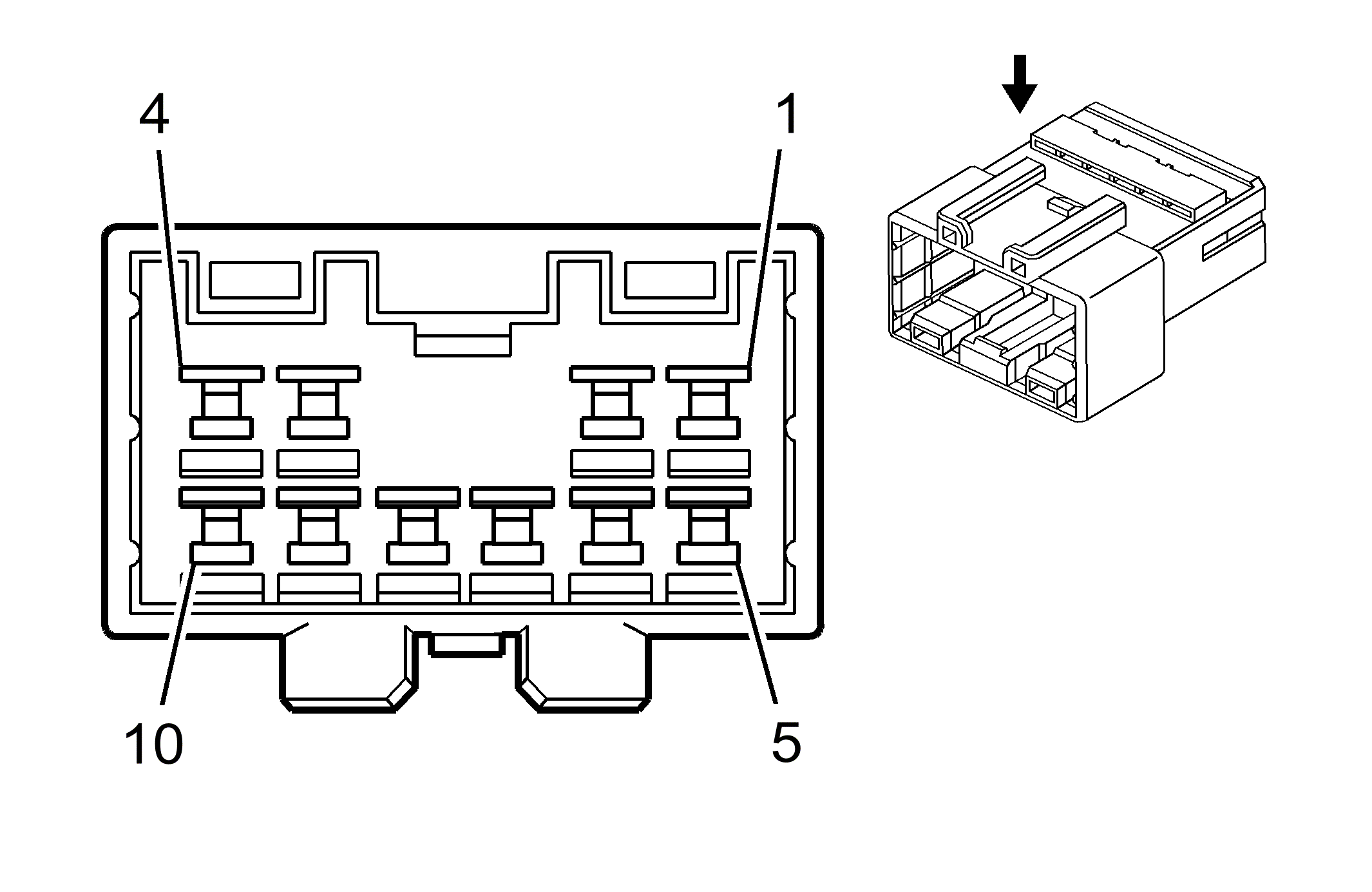

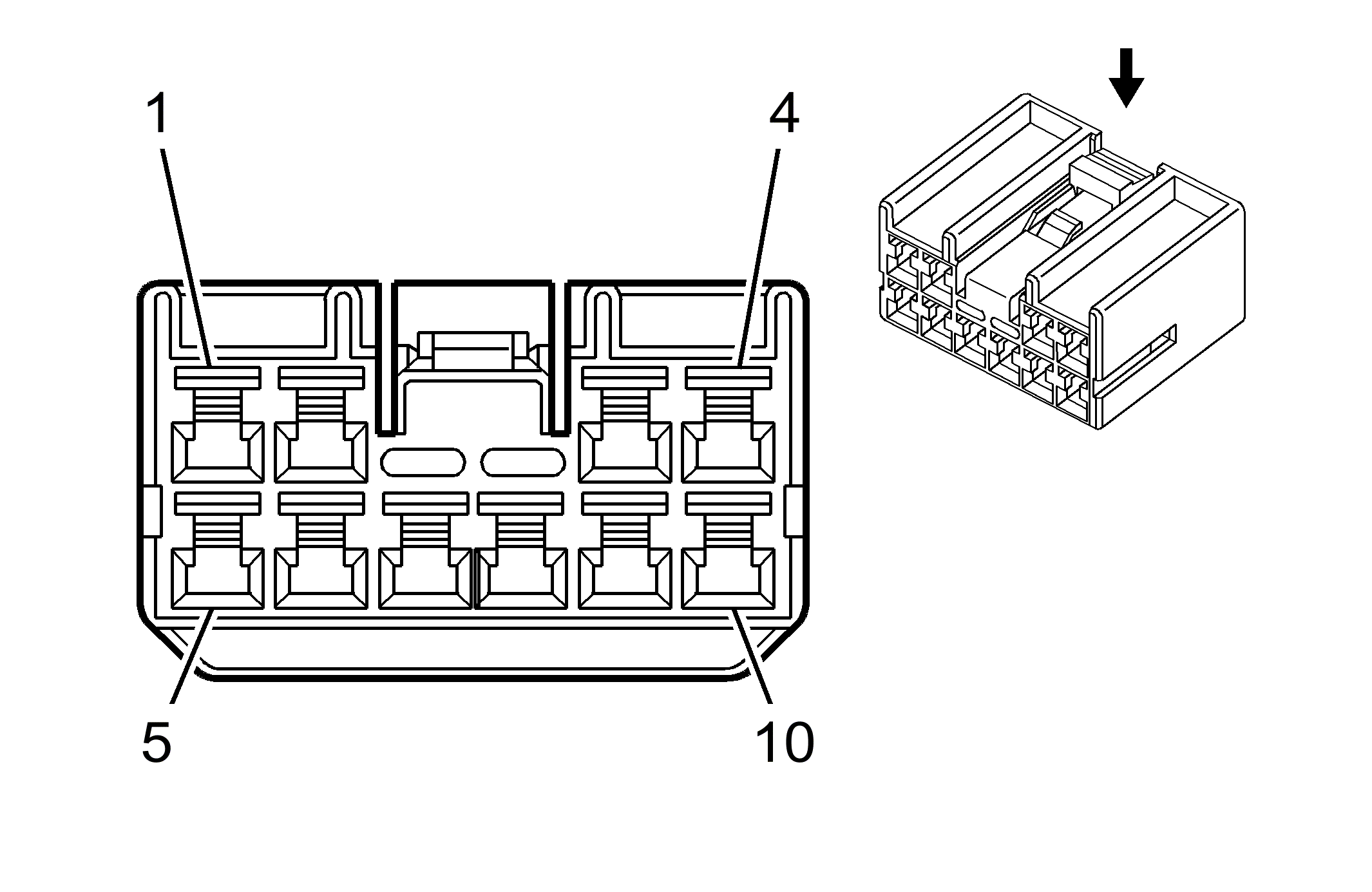

C210 Roof Harness to I/P Harness

GM1908511Courtesy of GENERAL MOTORS CORP.
GM1908512Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 936092-4
  • 10-Way F (BN)
 Connector Part Information
  • 936129-1
  • 10-Way M (NA)
Pin Wire Circuit Function Pin Wire Circuit Function
1 BK - Ground 1 BK - Ground
2 BN - Ignition 3 2 BN - Ignition 3
3 RD/WH - Fuse Output 3 RD/WH - Fuse Output
4 GY - Speaker Return - Left Front 4 GY - Speaker Return - Left Front
5 - - Not Used 5 - - Not Used
6 GY - Interior Lamp Control 6 GY - Interior Lamp Control
7 RD/WH - Battery Positive Voltage 7 RD/WH - Battery Positive Voltage
8 BN - Speaker Feed - Left Front 8 BN - Speaker Feed - Left Front
9 PU/WH - Overspeed Signal (LHD) 9 PU/WH - Overspeed Signal (LHD)
10 PU/WH - Overspeed Signal (LHD) 10 PU/WH - Overspeed Signal (LHD)
C211 I/P Harness to Floor Harness (RHD)

GM1467122Courtesy of GENERAL MOTORS CORP.
GM1467087Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 622244-3
  • 15-Way F 090-II Series (YE)
 Connector Part Information
  • KET MG 622244-3
  • 15-Way M 090-II Series (YE)
Pin Wire Circuit Function Pin Wire Circuit Function
1-2 - - Not Used 1-2 - - Not Used
3 L-GN/BK - Power Window Relay Output 3 L-GN/BK - Power Window Relay Output
4-6 - - Not Used 4-6 - - Not Used
7 L-GN/BK - Power Window Relay Output 7 L-GN/BK - Power Window Relay Output
8 - - Not Used 8 - - Not Used
9 BN - Fuel Pump Relay Output 9 BN - Fuel Pump Relay Output
10 BN - Wheel Speed Sensor Signal - Right Rear 10 BN - Wheel Speed Sensor Signal - Right Rear
11 WH - Wheel Speed Sensor Return - Right Rear 11 WH - Wheel Speed Sensor Return - Right Rear
12 BN - Wheel Speed Sensor Signal - Left Rear 12 BN - Wheel Speed Sensor Signal - Left Rear
13 OG - Wheel Speed Sensor Return - Left Rear 13 OG - Wheel Speed Sensor Return - Left Rear
14 BN/WH - Park Lamp Feed - Right 14 BN/WH - Park Lamp Feed - Right
15 PU - Park Lamp Feed - Left 15 PU - Park Lamp Feed - Left
C212 I/P Harness to Floor Harness (LHD)

GM1468399Courtesy of GENERAL MOTORS CORP.
GM1467097Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 11-Way F (BU)
 Connector Part Information
  • KET MG 641047
  • 11-Way M (BU)
Pin Wire Circuit Function Pin Wire Circuit Function
1 RD/WH - Battery Voltage 1 RD/WH - Battery Voltage
2 OG - Rear Fog Relay Output 2 OG - Rear Fog Relay Output
3 RD/WH - Battery Voltage 3 RD/WH - Battery Voltage
4 OG - Defog Relay Output 4 OG - Defog Relay Output
5 L-BU - Stop Lamp Feed 5 L-BU - Stop Lamp Feed
6 OG - Defog Relay Output 6 OG - Defog Relay Output
OG -
7 D-BU - Right Turn Signal 7 D-BU - Right Turn Signal
8 GY - Power Mirror Motor Ground 8 GY - Power Mirror Motor Ground
GY -
9 L-BU - Left Turn Signal 9 L-BU - Left Turn Signal
10 L-GN - Backup Lamp Voltage 10 L-GN - Backup Lamp Voltage
11 YE - Ignition 1 Voltage 11 YE - Ignition 1 Voltage
C212 I/P Harness to Floor Harness (RHD)

GM1467122Courtesy of GENERAL MOTORS CORP.
GM1467087Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 622244-3
  • 15-Way F 090-II Series (YE)
 Connector Part Information
  • KET MG 622244-3
  • 15-Way M 090-II Series (YE)
Pin Wire Circuit Function Pin Wire Circuit Function
1 PK - Ignition 1 Voltage 1 PK - Ignition 1 Voltage
2 D-GN/WH - Front Fog Relay Control 2 D-GN/WH - Front Fog Relay Control
D-GN/WH -
3 L-GN/BK - Power Window Relay Output 3 L-GN/BK - Power Window Relay Output
4 BN - Cigar Relay Control 4 BN - Cigar Relay Control
5 D-GN - Dome Relay Control 5 D-GN - Dome Relay Control
6 YE - HI Beam Indicator Control 6 YE - HI Beam Indicator Control
7 WH - Illumination Relay Control 7 WH - Illumination Relay Control
8 PU - Not Used 8 PU - Not Used
9 BN/WH - Illumination Relay Output 9 BN/WH - Illumination Relay Output
10 D-GN - Front Wiper High Speed 10 D-GN - Front Wiper High Speed
11 PK - Ignition 1 Voltage 11 PK - Ignition 1 Voltage
12 YE - Front Fog Relay Output 12 YE - Front Fog Relay Output
13 PK - Ignition Voltage 13 PK - Ignition Voltage
PK -
14 BN - Horn Relay Output 14 BN - Horn Relay Output
15 PU - Front Wiper Low Speed 15 PU - Front Wiper Low Speed
C213 I/P Harness to Floor Harness (RHD)

GM1479698Courtesy of GENERAL MOTORS CORP.
GM1468554Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651086-3
  • 20-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641089-3
  • 20-Way F 090-II Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 OG - Fog Lamp Feed - Rear 1 OG - Fog Lamp Feed - Rear
2 WH - Courtesy Lamp Control 2 WH - Courtesy Lamp Control
3 - - Not Used 3 - - Not Used
4 L-GN - Back-Up Lamp Feed 4 L-GN - Back-Up Lamp Feed
5 RD/WH - Battery Voltage 5 RD/WH - Battery Voltage
6 OG - Heated Mirror Element Feed 6 OG - Heated Mirror Element Feed
OG -
7 WH - Door Lock Switch Signal 7 WH - Door Lock Switch Signal
8 L-BU - Power Door Lock Relay Feed - Lock Coil 8 L-BU - Power Door Lock Relay Feed - Lock Coil
9 WH - Courtesy Lamp Output 9 WH - Courtesy Lamp Output
10 L-BU - Stop Lamp Feed 10 L-BU - Stop Lamp Feed
11 OG - Defog Relay Output 11 OG - Defog Relay Output
12 L-BU - Trunk Key Cylinder Switch Signal 12 PU - Trunk Key Cylinder Switch Signal
13 PU - Door Key Lock Cylinder Switch Signal - Passenger 13 L-GN/RD - Door Key Lock Cylinder Switch Signal - Passenger
14 PU - Door Key Lock Cylinder Switch Signal - Driver 14 BN/BK - Door Key Lock Cylinder Switch Signal - Driver
15 BN - Trunk Release Relay Feed-Coil 15 BN - Trunk Release Relay Feed-Coil
16 OG/BK - Trunk Lamp Output 16 GY/BK - Trunk Lamp Output
17 - - Not Used 17 - - Not Used
18 YE - Low Fuel Indicator Lamp Output 18 YE - Low Fuel Indicator Lamp Output
19 BN/WH - Brake Warning Indicator Lamp Control 19 BN/WH - Brake Warning Indicator Lamp Control
20 BN/WH - Seat Belt Switch Signal 20 BN/WH - Seat Belt Switch Signal
21 GY - Power Mirror Motor Feed - Right Horizontal Motor - Left Direction 21 GY - Power Mirror Motor Feed - Right Horizontal Motor - Left Direction
22 PK - Ignition 1 Voltage 22 PK - Ignition 1 Voltage
C213 I/P Harness to Floor Harness (LHD)

GM1468391Courtesy of GENERAL MOTORS CORP.
GM1468392Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 611810-41
  • 20-Way F (WH)
 Connector Part Information
  • KET MG 652426
  • 20-Way M (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 GY - Door Lock Relay Output 1 GY - Door Lock Relay Output
2 BN - Door Unlock Relay Output 2 BN - Door Unlock Relay Output
3 BN/WH - Park Brake Signal 3 BN/WH - Park Brake Signal
4 BN/WH - Seat Belt Switch Signal 4 BN/WH - Seat Belt Switch Signal
5 YE - Low Fuel Indicator Control 5 YE - Low Fuel Indicator Control
6-7 - - Not Used 6-7 - - Not Used
8 L-BU - Door Lock Switch Signal 8 L-BU - Door Lock Switch Signal
9 WH - Door Lock Switch Signal 9 WH - Door Lock Switch Signal
10 PU - Tamper Switch Signal 10 PU - Tamper Switch Signal
11 PU - Door Tamper Switch Signal - RH 11 L-GN/RD - Door Tamper Switch Signal - RH
12 PU - Door Tamper Switch Signal - LH 12 BN/BK - Door Tamper Switch Signal - LH
13 BN - Trunk Switch Signal 13 BN - Trunk Switch Signal
14 OG/BK - Trunk Open Signal 14 GY/BK - Trunk Open Signal
15 PU - Illumination Relay Output 15 PU - Illumination Relay Output
16 - - Not Used 16 - - Not Used
17 WH - Right Mirror Voltage 17 WH - Right Mirror Voltage
18 L-GN - Right Mirror Voltage 18 L-GN - Right Mirror Voltage
19 YE - Left Mirror Voltage 19 YE - Left Mirror Voltage
20 L-BU - Left Mirror Voltage 20 L-BU - Left Mirror Voltage
C214 I/P Harness to Floor Harness (LHD)

GM1479698Courtesy of GENERAL MOTORS CORP.
GM1468554Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 22-Way F (BK)
 Connector Part Information
  • KET MG 641047
  • 22-Way M (BK)
Pin Wire Circuit Function Pin Wire Circuit Function
1 L-BU - Fuel Gage Sensor Ground 1 L-BU - Fuel Gage Sensor Ground
2 D-BU - Fuel Gage Sensor Signal 2 D-BU - Fuel Gage Sensor Signal
3 - - Not Used 3 - - Not Used
4 WH - Courtesy Lamp Control 4 WH - Courtesy Lamp Control
5 WH - Driver Door Courtesy Lamp Control 5 WH - Driver Door Courtesy Lamp Control
6 GN - Radio Cassette 6 GN - Radio Cassette
7 BN - Speaker Feed - LF 7 BN - Speaker Feed - LF
8 L-GN - Speaker Feed - RF 8 L-GN - Speaker Feed - RF
9 GY - Speaker Return - LF 9 GY - Speaker Return - LF
10 D-GN - Speaker Return - RF 10 D-GN - Speaker Return - RF
11 BN - Fuel Tank Pressure Signal 11 BN - Fuel Tank Pressure Signal
12 OG - Fuel Tank Pressure 5-Volt Reference 12 OG - Fuel Tank Pressure 5-Volt Reference
13 PK - Ignition 1 Voltage 13 PK - Ignition 1 Voltage
14 YE - Undefined 14 YE - Undefined
15-18 - - Not Used 15-18 - - Not Used
19 BN - Speaker Feed - LR 19 BN - Speaker Feed - LR
20 YE - Speaker Feed - LR 20 YE - Speaker Feed - LR
21 D-BU - Speaker Feed - RR 21 D-BU - Speaker Feed - RR
22 L-BU - Speaker Feed - RR 22 L-BU - Speaker Feed - RR
C214 I/P Harness to Floor Harness (RHD)

GM1500013Courtesy of GENERAL MOTORS CORP.
GM1500010Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651056-5
  • 10-Way F 090-II Series (BK)
 Connector Part Information
  • KET MG 641059-5
  • 10-Way M 090-II Connector (BK)
Pin Wire Circuit Function Pin Wire Circuit Function
1 BN - Power Door Lock Motor Feed - Unlock 1 BN - Power Door Lock Motor Feed - Unlock
2 L-BU - Left Turn Signal 2 L-BU - Left Turn Signal
3 WH - Headlamp Relay Control 3 WH - Headlamp Relay Control
4 YE - Ignition 1 Voltage 4 YE - Ignition 1 Voltage
5 GY - Power Door Lock Motor Feed - Lock 5 GY - Power Door Lock Motor Feed - Lock
6 D-BU - Turn Signal Lamp Feed - Right Front 6 D-BU - Turn Signal Lamp Feed - Right Front
7 WH - Power Mirror Motor Feed - Left Horizontal Motor - Right Direction 7 WH - Power Mirror Motor Feed - Left Horizontal Motor - Right Direction
8 L-GN - Power Mirror Motor Feed - Left Vertical Motor - Down Direction 8 L-GN - Power Mirror Motor Feed - Left Vertical Motor - Down Direction
9 L-BU - Power Mirror Motor Feed - Left Horizontal Motor - Left Direction 9 L-BU - Power Mirror Motor Feed - Left Horizontal Motor - Left Direction
10 YE - Power Mirror Motor Feed - Left Vertical Motor - Up Direction 10 YE - Power Mirror Motor Feed - Left Vertical Motor - Up Direction
C215 Air Bag Harness to I/P Harness (MT34)

GM1908514Courtesy of GENERAL MOTORS CORP.
GM1248788Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 368501-1
  • 4-Way F .070 MLC Series (WH)
 Connector Part Information
  • 174929-1
  • 4-Way M .070 MLC Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 PU - Front Discriminating Sensor - Left - High 1 PU - Front Discriminating Sensor - Left - High
2 RD - Front Discriminating Sensor - Left - Low 2 RD - Front Discriminating Sensor - Left - Low
3 BK - Front Discriminating Sensor - Right - High 3 BK - Front Discriminating Sensor - Right - High
4 GN - Front Discriminating Sensor - Right - Low 4 GN - Front Discriminating Sensor - Right - Low
C216 Air Bag Harness to I/P Harness

GM1480200Courtesy of GENERAL MOTORS CORP.
GM1480201Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651068
  • 12-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641071
  • 12-Way M 090-II Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 GY/BK - Passenger Air Bag On Indicator Control (Advanced Air Bag) 1 GY/BK - Passenger Air Bag On Indicator Control (Advanced Air Bag)
2 L-BU - Vehicle Speed Sensor Signal 2 L-BU - Vehicle Speed Sensor Signal
3 D-GN/WH - Driver Information Center Switch Signal 3 GB/WH - Driver Information Center Switch Signal
4 YE - Accessory Fuse 4 YE - Accessory Fuse
5 YE - Accessory Fuse 5 YE - Accessory Fuse
6 L-GN - SIR Chime Signal 6 L-GN - SIR Chime Signal
7 PK - Ignition 1 Voltage 7 PK - Ignition 1 Voltage
8 L-BU - Diagnostic Signal - SIR 8 YE/BK - Diagnostic Signal - SIR
9 BN - SIR Indicator Lamp Control 9 BN - SIR Indicator Lamp Control
10 PK - Ignition 1 Voltage (LHD) 10 PK - Ignition 1 Voltage (LHD)
11 D-GN - Seat Belt Switch Signal 11 BN/WH - Seat Belt Switch Signal
12 D-GN/WH - Passenger Air Bag Indicator Control 12 D-GN/WH - Passenger Air Bag Indicator Control
C217 I/P Harness to HVAC Harness

GM1500016Courtesy of GENERAL MOTORS CORP.
GM1500015Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG651006
  • 16-Way F 1809 Series (WH)
 Connector Part Information
  • MG620397
  • 16-Way M Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 PU - Windshield Wiper Motor Feed - High Speed 1 YE/BK - Windshield Wiper Motor Feed - High Speed
2 D-GN/WH - Vehicle Speed Signal 2 L-GN - Vehicle Speed Signal
3 BN/WH - Park Lamp Feed - Right 3 D-GN/WH - Park Lamp Feed - Right
4 BN/WH - Instrument Panel Lamps Dimmer Module 4 D-GN/BK - Instrument Panel Lamps Dimmer Module
5 RD/WH - Battery Voltage 5 WH/RD - Battery Voltage
6 BN - Ignition 2 Voltage 6 YE/WH - Ignition 2 Voltage
7 WH - Rear Defogger Relay Output - Coil 7 BN/RD - Rear Defogger Relay Output - Coil
8 GN/WH - Air Conditioning Request Signal 8 YE/D-GN - Air Conditioning Request Signal
9 BK - Outside Ambient Temperature Sensor Signal 9 D-BU/WH - Outside Ambient Temperature Sensor Signal
10 YE - Outside Ambient Temperature Sensor Return 10 D-GN/YE - Outside Ambient Temperature Sensor Return
11 - - Not Used 11 - - Not Used
12 BN - Not Used 12 L-GN/RD - Not Used
13 BK - Ground 13 BK - Ground
14 OG - Ignition Switch Output - Ignition 3 14 RD/WH - Ignition Switch Output - Ignition 3
15 - - Not Used 15 D-GN - Fan Switch Signal
16 - - Not Used 16 RD/YE - PTC
C218 I/P Harness to Floor Harness (RHD)

GM1468391Courtesy of GENERAL MOTORS CORP.
GM1468392Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 611810-41
  • 20-Way F (WH)
 Connector Part Information
  • KET MG 652426
  • 20-Way M (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 L-BU - Fuel Gage Sensor Signal - Right 1 L-BU - Fuel Gage Sensor Signal - Right
2 D-BU - Fuel Gage Sensor Signal - Left 2 D-BU - Fuel Gage Sensor Signal - Left
3-8 - - Not Used 3-8 - - Not Used
9 D-GN - Power Antenna Relay Feed-Coil 9 D-GN - Power Antenna Relay Feed-Coil
10 BN - Speaker Feed - Left Front 10 BN - Speaker Feed - Left Front
11 - - Not Used 11 - - Not Used
12 GY - Speaker Return - Left Front 12 GY - Speaker Return - Left Front
13 - - Not Used 13 - - Not Used
14 D-GN - Speaker Return - Right Front 14 D-GN - Speaker Return - Right Front
15 L-GN - Speaker Feed - Right Front 15 L-GN - Speaker Feed - Right Front
16 BN - Speaker Feed - Left Rear 16 BN - Speaker Feed - Left Rear
17 YE - Speaker Return - Left Rear 17 YE - Speaker Return - Left Rear
18 D-BU - Speaker Feed - Right Rear 18 D-BU - Speaker Feed - Right Rear
19 L-BU - Speaker Return - Right Rear 19 L-BU - Speaker Return - Right Rear
20 L-GN/BK - Headlamp Low Relay Output 20 L-GN/BK - Headlamp Low Relay Output
C219 I/P Harness to Floor Harness

GM1467046Courtesy of GENERAL MOTORS CORP.
GM1467067Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 8-Way F (BU)
 Connector Part Information
  • KET MG 641047
  • 8-Way M (BU)
Pin Wire Circuit Function Pin Wire Circuit Function
1 YE - Outside Ambient Temperature Sensor Return 1 YE - Outside Ambient Temperature Sensor Return
2 L-GN - ABS Failure Indicator Lamp Output 2 L-GN - ABS Failure Indicator Lamp Output
3 YE - Security Signal - Arm Alarm 3 YE - Security Signal - Arm Alarm
4 BK/WH - Serial Data 4 BK/WH - Serial Data
5 BU - Turn Signal Lamp Feed - Right Front 5 BU - Turn Signal Lamp Feed - Right Front
6 BK - Ground 6 L-GN/BK - Ground
7 RD/WH - Battery Voltage 7 RD/WH - Battery Voltage
8 PK/BK - Hood Ajar Switch Signal 8 PK/BK - Hood Ajar Switch Signal
C220 I/P Harness to Floor Harness (RHD)

GM1479698Courtesy of GENERAL MOTORS CORP.
GM1468554Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 22-Way F (BK)
 Connector Part Information
  • KET MG 641047
  • 22-Way M (BK)
Pin Wire Circuit Function Pin Wire Circuit Function
1 BN - Brake Warning Indicator Lamp Output 1 BN - Brake Warning Indicator Lamp Output
2 RD/BK - Battery Voltage 2 RD/BK - Battery Voltage
3 PU - Power Window Enable Relay Output - N.O. Contact 3 PU - Power Window Enable Relay Output - N.O. Contact
4 L-GN/BK - Headlamp Low Relay Output 4 L-GN/BK - Headlamp Low Relay Output
5 WH - Headlamp Relay Control 5 WH - Headlamp Relay Control
6 GN - Headlamp Leveling Motor Feed 6 GN - Headlamp Leveling Motor Feed
7 YE - Outside Ambient Temperature Sensor Return 7 YE - Outside Ambient Temperature Sensor Return
8 L-GN - ABS Failure Indicator Lamp Output 8 L-GN - ABS Failure Indicator Lamp Output
9 PK/BK - Hood Ajar Switch Signal 9 PK/BK - Hood Ajar Switch Signal
10 YE - Security Signal - Arm Alarm 10 YE - Security Signal - Arm Alarm
11 L-GN/BK - Outside Ambient Temperature Sensor Signal 11 L-GN/BK - Outside Ambient Temperature Sensor Signal
12 GN/WH - Fog Lamp Relay Control 12 GN/WH - Fog Lamp Relay Control
13 - - Not Used 13 - - Not Used
14 BN/WH - Park Lamp Feed - Right 14 BN/WH - Park Lamp Feed - Right
15 L-BU - Headlamp Relay Output - N.O. Contact 15 L-BU - Headlamp Relay Output - N.O. Contact
16 L-BU - Stop Lamp Feed 16 L-BU - Stop Lamp Feed
17 BK/WH - Serial Data 17 BK/WH - Serial Data
18 - - Not Used 18 - - Not Used
19 WH - Illumination Relay Control 19 WH - Illumination Relay Control
20 D-BU - Turn Signal Lamp Feed - Right Front 20 D-BU - Turn Signal Lamp Feed - Right Front
21 L-BU - Turn Signal Lamp Feed - Left Front 21 L-BU - Turn Signal Lamp Feed - Left Front
22 PK - Windshield Washer Signal 22 PK - Windshield Washer Signal
C221 Front Harness to Floor Harness (RHD)

GM1468399Courtesy of GENERAL MOTORS CORP.
GM1467097Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG651044
  • 11-Way F (BU)
 Connector Part Information
  • MG641047
  • 11-Way M (BU)
Pin Wire Circuit Function Pin Wire Circuit Function
1 PK - Ignition 1 Voltage 1 PK - Ignition 1 Voltage
2 PK - Ignition 1 Voltage 2 PK - Ignition 1 Voltage
3 YE - Front Fog Relay output 3 YE - Front Fog Relay output
4 GN - Windshield Wiper Motor High Speed 4 GN - Windshield Wiper Motor High Speed
5 PU - Windshield Wiper Motor Low Speed 5 PU - Windshield Wiper Motor Low Speed
6 - - Not Used 6 - - Not Used
7 BN - Windshield Wiper Switch Signal - Pulse Delay 7 BN - Windshield Wiper Switch Signal - Pulse Delay
8 - - Not Used 8 - - Not Used
9 BN - Horn Relay Output 9 BN - Horn Relay Output
10 YE - HI Beam Indicator Control 10 YE - HI Beam Indicator Control
11 PK - Ignition 1 Voltage 11 PK - Ignition 1 Voltage
C351 Body Harness to Left Front Door Harness

GM1467050Courtesy of GENERAL MOTORS CORP.
GM1468552Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610692
  • 29-Way F Door (WH)
 Connector Part Information
  • KET MG 620693
  • 29-Way M Door Connector (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 L-GN/BK - Power Window Relay Output 1 L-GN/BK - Power Window Relay Output
2 D-BU - Power Window Master Switch Output - Lockout 2 D-BU - Power Window Master Switch Output - Lockout
3 L-BU - Power Window Master Switch Output - Pass Front Window - Up 3 L-BU - Power Window Master Switch Output - Pass Front Window - Up
4 BN - Power Window Master Switch Output - Pass Front Window - Down 4 BN - Power Window Master Switch Output - Pass Front Window - Down
5 D-GN - Power Window Master Switch Output - Left Rear Window - Up 5 D-GN - Power Window Master Switch Output - Left Rear Window - Up
6 PU - Power Window Master Switch Output - Left Rear Window - Down 6 PU - Power Window Master Switch Output - Left Rear Window - Down
7 BK - Ground 7 BK - Ground
8 L-GN/BK - Power Window Relay Output 8 L-GN/BK - Power Window Relay Output
9 YE (LHD) - Power Mirror Motor Feed - Left Vertical Motor - Up Direction 9 YE - Power Mirror Motor Feed - Left Vertical Motor - Up Direction
L-GN (RHD) -
10 GY - Power Mirror Motor Feed - Right Horizontal Motor - Left 10 GN - Power Mirror Motor Feed - Right Horizontal Motor - Left
11 L-BU - Power Mirror Motor Feed - Left Horizontal Motor - Left Direction 11 L-BU - Power Mirror Motor Feed - Left Horizontal Motor - Left Direction
12 OG - Heated Mirror Element Feed 12 OG - Heated Mirror Element Feed
13 L-GN - Power Window Master Switch Output - Right Rear Window - Up 13 L-GN - Power Window Master Switch Output - Right Rear Window - Up
14 PU - Power Window Master Switch Output - Right Rear Window - Down 14 PU - Power Window Master Switch Output - Right Rear Window - Down
15 RD/WH - Battery Voltage 15 RD/WH - Battery Voltage
16 BN - Trunk Release Relay Feed-Coil 16 BN - Trunk Release Relay Feed-Coil
17 - - Not Used 17 - - Not Used
18 BN/BK - Driver Door Switch Return 18 L-GN/RD - Driver Door Switch Return
19 GY - Speaker Return - Left Front 19 GN - Speaker Return - Left Front
20 BN - Speaker Feed - Left Front 20 BN - Speaker Feed - Left Front
21 WH - HVAC Mode Switch Output 21 WH - HVAC Mode Switch Output
22 RD/BK - Battery Voltage 22 RD/BK - Battery Voltage
23 - - Not Used 23 - - Not Used
24 WH - Power Door Lock Relay Feed - Unlock Coil 24 WH - Power Door Lock Relay Feed - Unlock Coil
25 L-BU - Power Door Lock Relay Feed - Lock Coil 25 L-BU - Power Door Lock Relay Feed - Lock Coil
26 BN - Power Door Lock Motor Feed - Unlock 26 BN - Power Door Lock Motor Feed - Unlock
27 GN - Power Door Lock Motor Feed - Lock 27 GN - Power Door Lock Motor Feed - Lock
28-29 - - Not Used 28-29 - - Not Used
C361 Body Harness to Right Front Door Harness

GM1467050Courtesy of GENERAL MOTORS CORP.
GM1468552Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG610692
  • 29-Way F Door (WH)
 Connector Part Information
  • MG620693
  • 29-Way M Door Connector (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 D-BU - Power Window Relay Output 1 D-BU - Power Window Relay Output
2 - - Not Used 2 - - Not Used
3 L-BU - Power Window Master Switch Output - Pass Front Window - Up 3 L-BU - Power Window Master Switch Output - Pass Front Window - Up
4 BN - Power Window Master Switch Output - Pass Front Window - Down 4 PU - Power Window Master Switch Output - Pass Front Window - Down
5-6 - - Not Used 5-6 - - Not Used
7 BK - Ground 7 BK - Ground
8 - - Not Used 8 - - Not Used
9 L-GN (LHD) - Power Mirror Motor Feed - Left Vertical Motor - Down Direction 9 L-GN - Power Mirror Motor Feed - Left Vertical Motor - Down Direction
YE (RHD) -
10 GY - Power Mirror Motor Feed - Right Horizontal Motor - Left Front 10 GN - Power Mirror Motor Feed - Right Horizontal Motor - Left Front
11 WH - Power Mirror Motor Feed - Left Horizontal Motor - Right Direction 11 WH - Power Mirror Motor Feed - Left Horizontal Motor - Right Direction
12 OG - Heated Mirror Element Feed 12 OG - Heated Mirror Element Feed
13-17 - - Not Used 13-17 - - Not Used
18 BN/BK - Door Key Lock Cylinder Switch Signal - Passenger 18 L-GN/RD - Door Key Lock Cylinder Switch Signal - Passenger
19 D-GN - Speaker Return - RF 19 GY - Speaker Return - RF
20 L-GN - Speaker Feed - Right Front 20 L-GN - Speaker Feed - Right Front
21-25 - - Not Used 21-25 - - Not Used
26 BN - Power Door Lock Motor Feed - Unlock 26 BN - Power Door Lock Motor Feed - Unlock
27 GY - Power Door Lock Motor Feed - Lock 27 GY - Power Door Lock Motor Feed - Lock
28 L-BU - Power Door Lock - Lock 28 L-BU - Power Door Lock - Lock
29 WH - Power Door Lock - Unlock 29 WH - Power Door Lock - Unlock
C371 Body Harness to Left Rear Door Harness

GM1467115Courtesy of GENERAL MOTORS CORP.
GM1467083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 6-Way F 090 II Series (WH)
 Connector Part Information
  • KET MG 641047
  • 6-Way M 090 II Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 GY - Power Door Lock Motor Feed - Lock 1 GY - Power Door Lock Motor Feed - Lock
2 BN - Power Door Lock Motor Feed - Unlock 2 BN - Power Door Lock Motor Feed - Unlock
3 PU - Power Window Master Switch Output - Left Rear Window - Down 3 PU - Power Window Master Switch Output - Left Rear Window - Down
4 D-GN - Power Window Master Switch Output - Left Rear Window - Up 4 D-GN - Power Window Master Switch Output - Left Rear Window - Up
5 D-BU - Power Window Master Switch Output - Lockout 5 D-BU - Power Window Master Switch Output - Lockout
6 - - Not Used 6 - - Not Used
C381 Body Harness to Left Rear Door Harness

GM1467115Courtesy of GENERAL MOTORS CORP.
GM1467083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651044
  • 6-Way F 090 II Series (WH)
 Connector Part Information
  • KET MG 641047
  • 6-Way M 090 II Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 GY - Power Door Lock Motor Feed - Lock 1 GY - Power Door Lock Motor Feed - Lock
2 BN - Power Door Lock Motor Feed - Unlock 2 BN - Power Door Lock Motor Feed - Unlock
3 PU - Power Window Master Switch Output - Right Rear Window - Down 3 PU - Power Window Master Switch Output - Right Rear Window - Down
4 D-GN - Power Window Master Switch Output - Right Rear Window - Up 4 D-GN - Power Window Master Switch Output - Right Rear Window - Up
5 D-BU - Power Window Master Switch Output - Lockout 5 D-BU - Power Window Master Switch Output - Lockout
6 - - Not Used 6 - - Not Used
C401 Floor Harness to Trunk Harness

GM1467046Courtesy of GENERAL MOTORS CORP.
GM1467067Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG610402
  • 8-Way F Series Sealed (WH)
 Connector Part Information
  • MG620403
  • 8-Way M Series Sealed (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 BN/WH - Park Lamp Feed - Right 1 PU - Park Lamp Feed - Right
2 L-GN - Backup Lamp Feed 2 L-GN - Backup Lamp Feed
3 OG - Fog Lamp Feed - Rear 3 OG - Fog Lamp Feed - Rear
4 PU - Park Lamp Feed - Left 4 PU - Park Lamp Feed - Left
5 L-BU - Turn Signal Lamp Feed - Left Front 5 L-BU - Turn Signal Lamp Feed - Left Front
6 D-BU - Turn Signal Lamp Feed - Right Front 6 D-BU - Turn Signal Lamp Feed - Right Front
7 L-BU - Stop Lamp Feed 7 L-BU - Stop Lamp Feed
8 - - Not Used 8 - - Not Used
C402 Trunk Lid Harness to Floor Harness

GM1467115Courtesy of GENERAL MOTORS CORP.
GM1467083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 6-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641053
  • 6-Way M 090-II Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 BN - Trunk Release Relay Feed-Coil 1 BN - Trunk Release Relay Feed-Coil
2 L-BU - Stop Lamp Feed 2 L-BU - Stop Lamp Feed
3 PU - Park Lamp Feed - Left 3 PU - Park Lamp Feed - Left
4 L-BU - Tamper Switch Signal 4 L-BU - Tamper Switch Signal
5 GY/BK - Trunk Lamp Output 5 GY/BK - Trunk Lamp Output
6 BK - Ground 6 BK - Ground
C415 Rear Harness to Left Tail Lamp Jumper

GM1467021Courtesy of GENERAL MOTORS CORP.
GM1501859Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
 Connector Part Information
  • KET MG 620153
  • 6-Way M 090 (2.3 mm) Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 BK 450 Ground 1 BK 450 Ground
2 BK 450 Ground 2 BK/YE 450 Ground
3 L-GN 24 Backup Lamp Supply Voltage (w/Backup Lamp) 3 WH 24 Backup Lamp Supply Voltage
RD 122 Rear Fog Lamp Supply Voltage w/Rear Fog Lamp (RHD) WH 122 Rear Fog Lamp Supply Voltage w/Rear Fog Lamp
4 L-BU 14 Left Turn Signal Lamps Supply Voltage 4 YE 14 Left Turn Signal Lamps Supply Voltage
5 PU 709 Left Park Lamp Supply Voltage 5 D-BU 709 Left Park Lamp Supply Voltage
6 BN 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal 6 RD 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
C416 Rear Harness to Right Tail Lamp Jumper (Notchback)

GM1467021Courtesy of GENERAL MOTORS CORP.
GM1501859Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
 Connector Part Information
  • KET MG 620153
  • 6-Way M 090 (2.3 mm) Series (WH)
Pin Wire Circuit Function Pin Wire Circuit Function
1 BK 450 Ground 1 BK 450 Ground
2 BK 450 Ground 2 BK/YE 450 Ground
3 L-GN 24 Backup Lamp Supply Voltage (w/Backup Lamp) 3 WH 24 Backup Lamp Supply Voltage
RD 122 Rear Fog Lamp Supply Voltage w/Rear Fog Lamp (RHD) WH 122 Rear Fog Lamp Supply Voltage w/Rear Fog Lamp
4 D-BU 15 Right Turn Signal Lamps Supply Voltage 4 YE 15 Right Turn Signal Lamps Supply Voltage
5 PU/BK 309 Right Park Lamp Supply Voltage 5 D-BU 709 Right Park Lamp Supply Voltage
6 YE 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal 6 RD 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
C417 Rear Harness to Marker Lamp Jumper

GM1467028Courtesy of GENERAL MOTORS CORP.
GM1480207Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
 Connector Part Information
  • KET MG 640322
  • 2-Way SWP Series (BK)
Pin Wire Circuit Function Pin Wire Circuit Function
1 PU 709 Park Lamp Supply Voltage 1 BN 709 Park Lamp Supply Voltage
2 BK 250 Ground 2 BK 250 Ground
scientia non olet · About LEMON Manuals
