Fuse Block - Underhood Label (North America): Notes

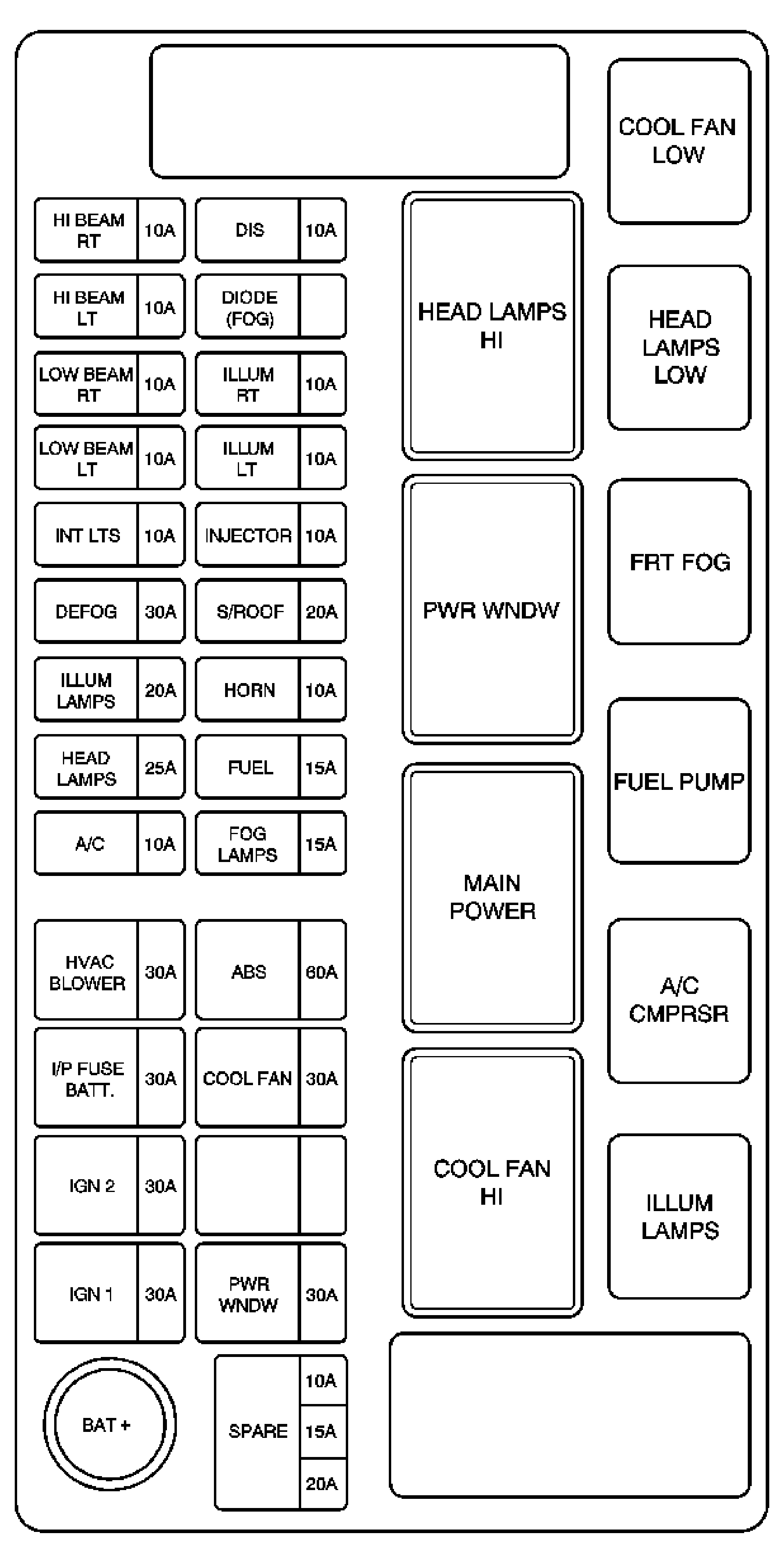

Fuse Block - Underhood Label Usage
| Device | Rating | Description |
|---|---|---|
| PWR WNDW Fuse (EF1) | 30A | PWR WNDW Relay |
| MAIN RELAY Fuse (EF2) | 20A | MAIN POWER Relay (1.2L) |
| COOL FAN Fuse (EF3) | 30A | COOL FAN HI Relay and COOL FAN LOW Relay |
| ABS Fuse (EF4) | 60A | Electronic Brake Control Module (EBCM) |
| IGN 1 Fuse (EF5) | 30A | Ignition Switch |
| IGN 2 Fuse (EF6) | 30A | Ignition Switch |
| I/P FUSE BATT. Fuse (EF7) | 30A | CLK RADIO Fuse, CLSTR HAZRD Fuse, ECM TCM Fuse, DR/LCK Fuse, HORN REAR/FOG Fuse and STOP Fuse |
| HVAC BLOWER Fuse (EF8) | 20A | Blower Relay |
| FOG LAMPS Fuse (EF9) | 15A | FRT FOG Relay |
| FUEL Fuse (EF10) | 15A | FUEL PUMP Relay |
| HORN Fuse (EF11) | 10A | Horn, Hood Ajar Switch, and Theft Deterrent Alarm |
| S/ROOF Fuse (EF12) | 20A | Sunroof Module |
| INJECTOR Fuse (EF13) (North America) | 10A | Camshaft Position (CMP) Sensor, COOL FAN HI Relay, COOL FAN LOW Relay, Engine Control Module (ECM), Exhaust Gas Recirculation (EGR) Valve, Fuel Injector 1-4, and Intake Manifold Tuning Valve |
| ILLUM LT Fuse (EF14) | 10A | License Lamp, Park Position Lamp - Left (Except North America), Park/Turn Signal Lamp - LF, Side Marker Lamp - LF, Side Marker Lamp - LR, Side Marker Lamp - RR, and Tail/Stop Lamp - Left |
| ILLUM RT Fuse (EF15) | 10A | Ashtray Lamp, Clock, Defogger Switch, DRL Control Module, DRL Relay, Fog Lamp Switch - Front, Fog Lamp Switch - Rear, Hazard Switch, HVAC Control, Instrument Cluster, Multifunction Alarm Module, Park Position Lamp - Right (Except North America), Park/Turn Signal Lamp - RF, Radio, Shift Indicator Lamp, Side Marker Lamp - RF, and Tail/Stop Lamp - Right |
| DIODE (FOG) (EF16) | - | HI BEAM RT Fuse |
| DIS Fuse (EF17) | 10A | A/C CMPRSR Relay, Engine Control Module (ECM), EVAP Canister Purge Solenoid Valve, Heated Oxygen Sensor 1 (HO2S1), Heated Oxygen Sensor 2 (HO2S2), and Ignition Coil Module |
| A/C Fuse (EF18) | 20A | A/C CMPRSR Relay |
| HEAD LAMPS Fuse (EF19) | 25A | DRL Module, HEAD LAMPS LOW Relay, and HEAD LAMPS HI Relay |
| ILLUM LAMPS Fuse (EF20) | 20A | ILLUM LAMPS Relay |
| DEFOG Fuse (EF21) | 30A | Defog Relay |
| INT LTS Fuse (EF22) | 10A | Courtesy/Reading Lamp (w/o Sunroof), Rear Compartment Lamp, and Sunroof Switch (w/Sunroof) |
| LOW BEAM LT Fuse (EF23) | 10A | Headlamp Leveling Motor - LH and Headlamp Low Beam - Left |
| LOW BEAM RT Fuse (EF24) | 10A | Headlamp Leveling Motor - RH and Headlamp Low Beam - Right |
| HI BEAM LT Fuse (EF25) | 10A | Headlamp High Beam - Left |
| HI BEAM RT Fuse (EF26) | 10A | Headlamp High Beam - Right |
| A/C CMPRSR Relay | - | A/C Compressor Clutch and Engine Control Module (ECM) |
| COOL FAN HI Relay | - | Cooling Fan Resistor (1.2L, 1.6L), Cooling Fan (1.2L, 1.6L), Cooling Fan - Main (1.4L, 1.5L) and Engine Control Module (ECM) |
| COOL FAN LOW Relay | - | Cooling Fan Resistor (1.2L, 1.6L), Cool Fan - Auxiliary (1.4L, 1.5L) and Engine Control Module (ECM) |
| FRT FOG Relay | - | Fog Lamp - LF, Fog Lamp - RF, and Headlamp |
