Removal Procedure

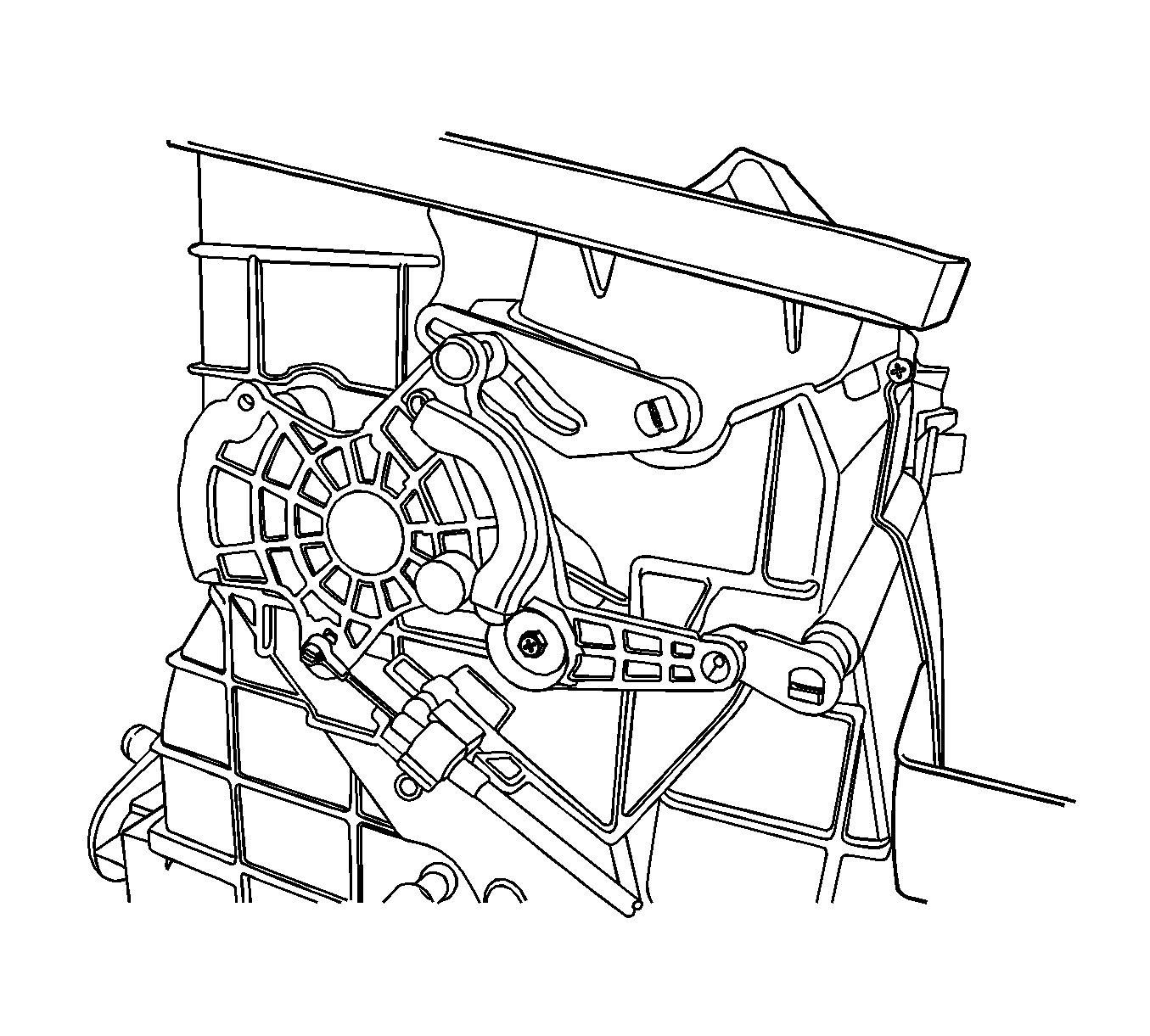

    Fig 1: Linkage Screw At Lower Heater Core Cover Post
    GM1895094Courtesy of GENERAL MOTORS CORP.
  1. Raise the hood.
    2. CAUTION: Refer to Battery Disconnect Caution .
  2. Disconnect the negative battery cable.
  3. Remove the instrument panel assembly from the vehicle. Refer to Instrument Panel Assembly Replacement (Notchback) or Instrument Panel Assembly Replacement (Hatchback) .
  4. Remove the heater/air distribution case from the vehicle. Refer to HVAC Module Assembly Replacement .
  5. Remove the linkage screw from the lower heater core cover post.
  6. Remove the linkage lever. Note the position of all the levers to facilitate reassembly.

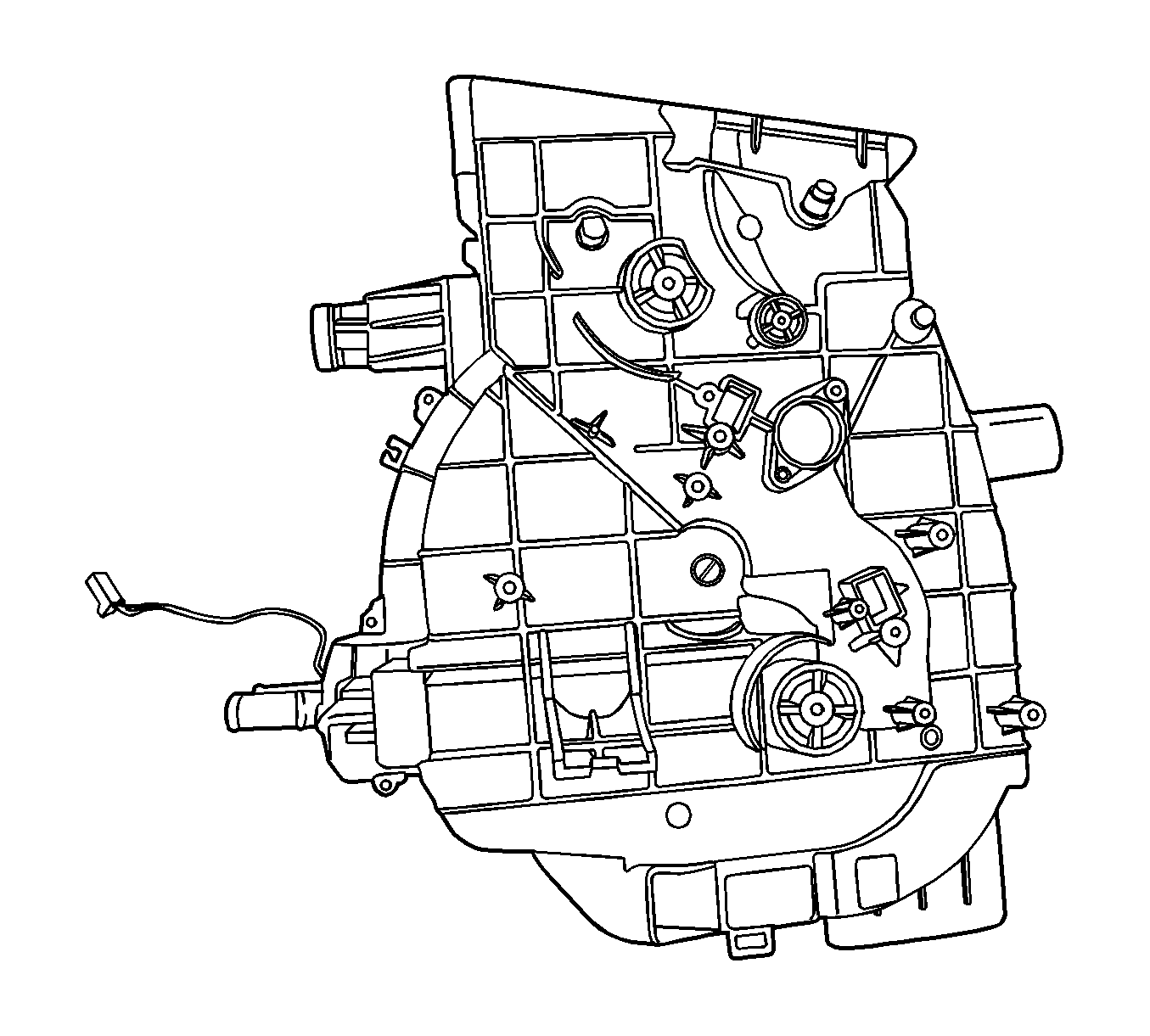

    7. Fig 2: Handle Case Carefully To Avoid Damage To Linkage Levers
    GM1895113Courtesy of GENERAL MOTORS CORP.
    NOTE: Handle the case carefully to avoid damage to the linkage levers.
  7. Remove the screws that secure the heater core cover.

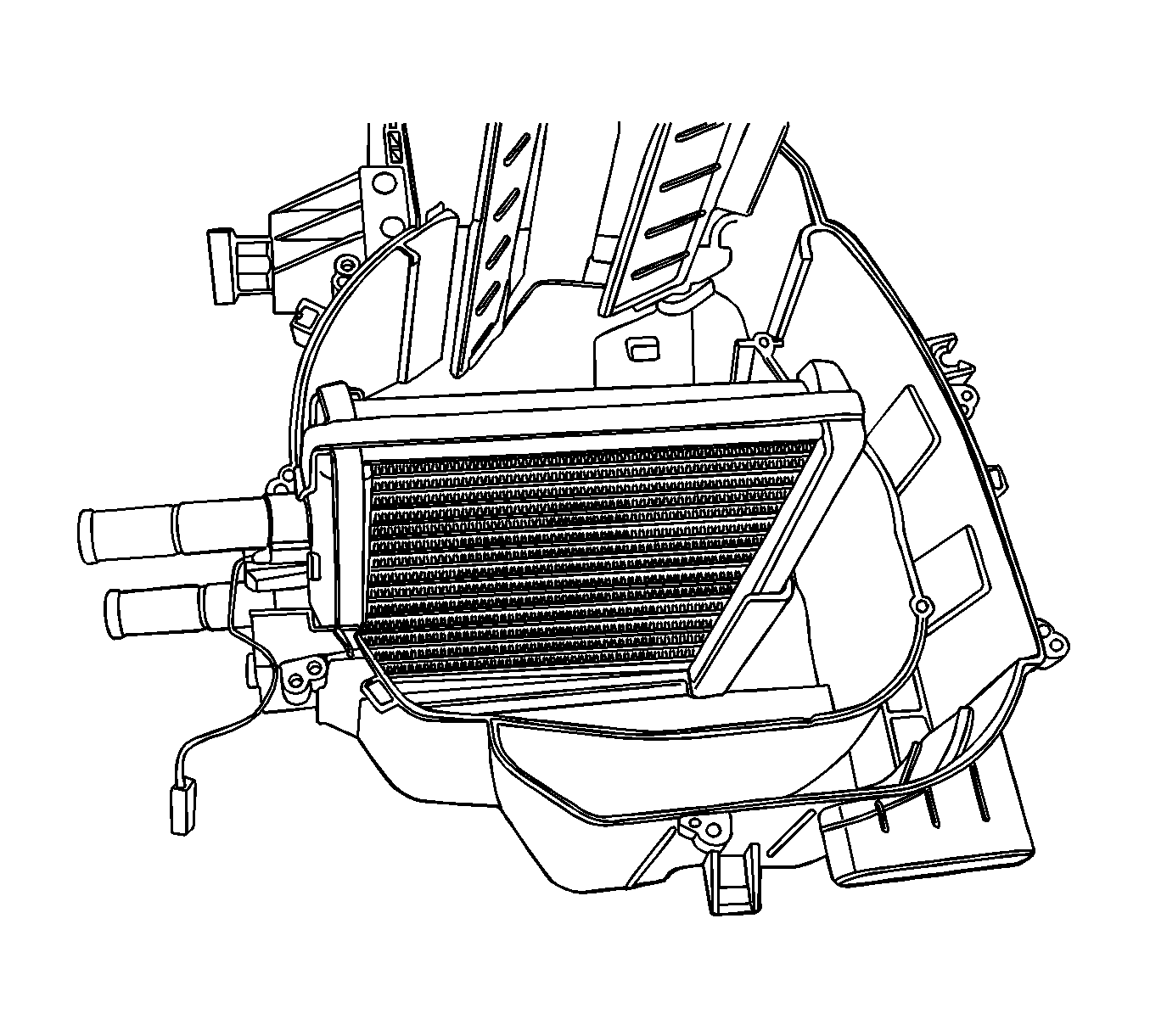

    8. Fig 3: Heater Core
    GM1895125Courtesy of GENERAL MOTORS CORP.
  8. Slowly separate the lower heater core cover from the rest of the assembly. Retain the sealant.
  9. Remove the screw and the bracket clamp that secure the heater core lines to the case.
  10. Remove the spring clamp that secures the heater core body to the case.
  11. Remove the heater core from the case.
