Removal Procedure

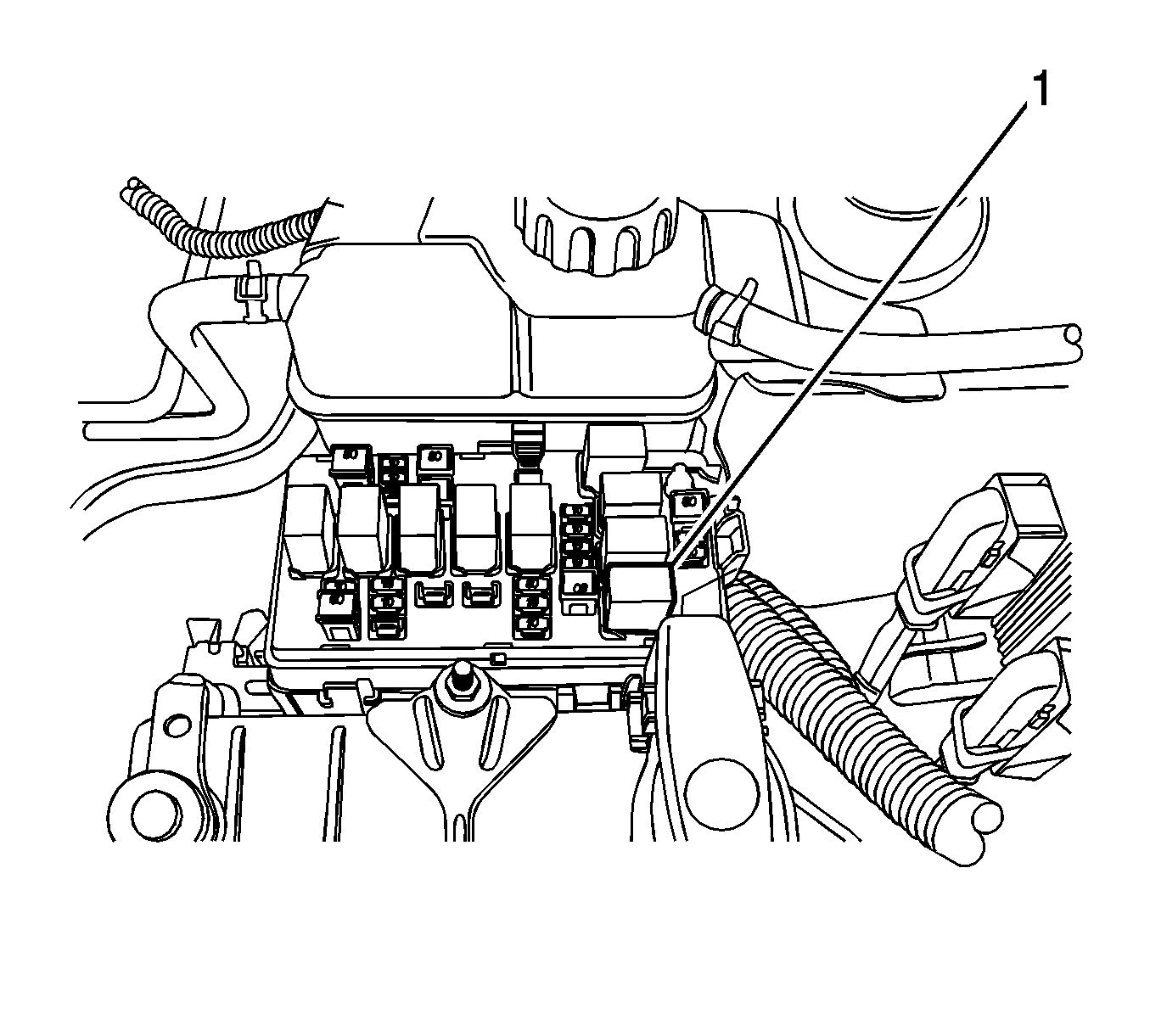

    Fig 1: Compressor Relay
    GM1892676Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. The relay is located in the fuse junction box in the engine compartment on the right-hand side.
  3. Pull the relay (1) straight up and out.
