Compressor Clutch Plate and Hub Assembly Removal (SP10 Compressor): Removal

    Fig 1: Using DW-610-010 & Clutch Hub Holding Tool
    GM1886996Courtesy of GENERAL MOTORS CORP.
  1. Remove the compressor. Refer to Compressor Replacement .
  2. Use the DW-610-010  clutch hub holding tool (1) to keep the clutch drive assembly from turning. See Special Tools .
  3. Remove the shaft bolt.

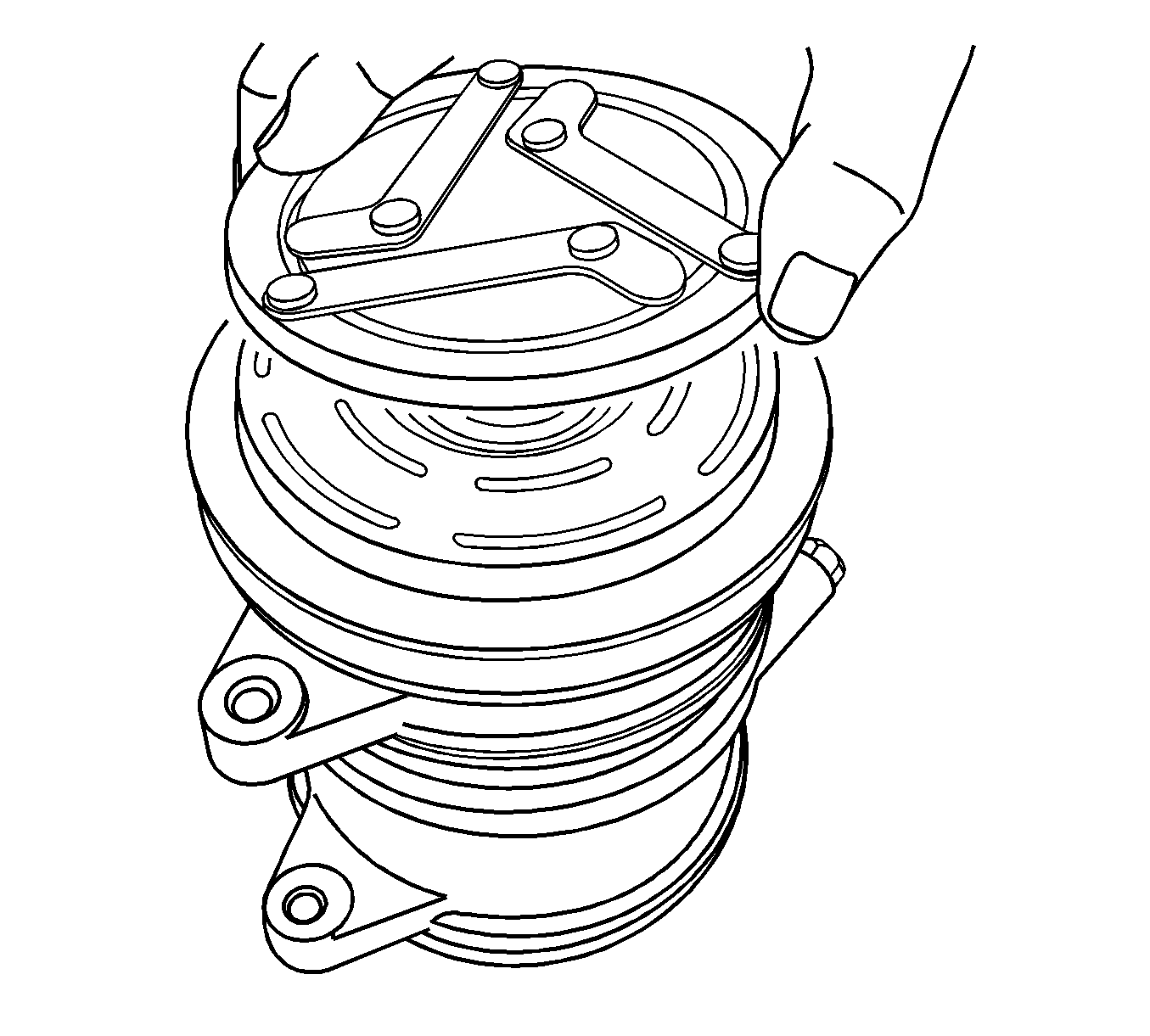

    4. Fig 2: Clutch Drive
    GM1886997Courtesy of GENERAL MOTORS CORP.
  4. Pull the clutch drive assembly up by hand.
