Message Reset

After the engine timing belt has been replaced, reset the CHANGE TIMING BELT message by locating and removing the fuses that supply power to the Instrument Cluster, for two minutes.

• 2011-16 Cruze  : Fuse #21 (F21DA) Under Dash (Fig 1)
• 2012-16 Sonic  : Fuse #F26 (F26DA) Under Dash (lower-left of dash - Fig 2)

Fig 1: Instrument Panel Fuses (Cruze)

Courtesy of GENERAL MOTORS CORP.

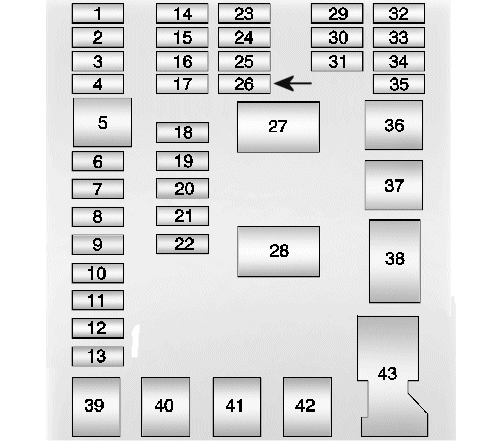

Fig 2: Instrument Panel Fuses (Sonic)

Courtesy of GENERAL MOTORS CORP.
