Removal Procedure

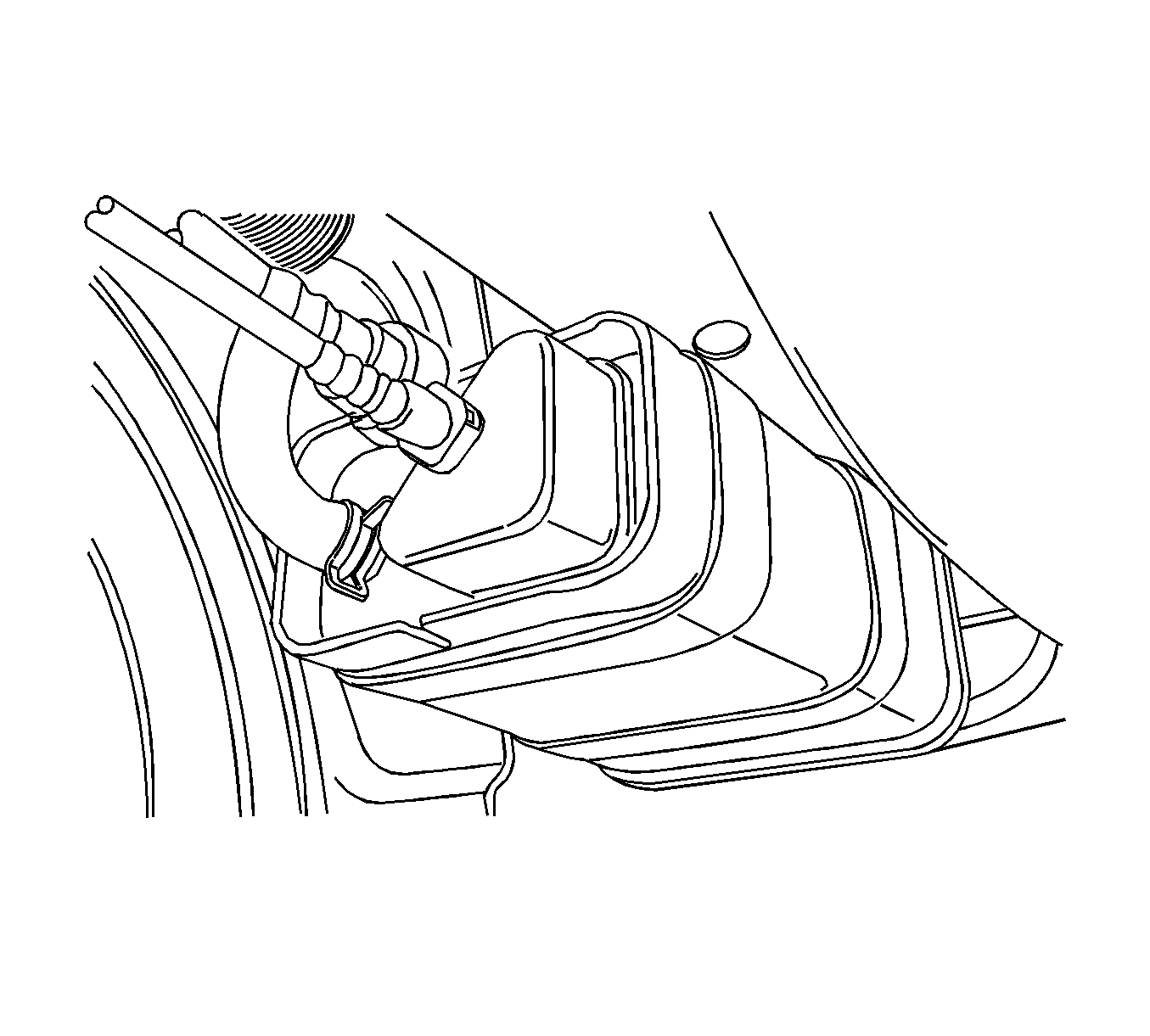

    Fig 1: Evaporative Emission Canister
    GM1921210Courtesy of GENERAL MOTORS CORP.
    CAUTION: Do not allow smoking or the use of open flames in the area where work on the fuel or EVAP system is taking place. Anytime work is being done on the fuel system, disconnect the negative battery cable, except for those tests where battery voltage is required.
  1. Disconnect the canister fuel vapor hoses.
  2. Remove the bolt that secures the canister flange to the vehicle.
  3. Slide the canister out of the track holder.
  4. Remove the canister.
