Starting and Charging Schematics (Hatchback)

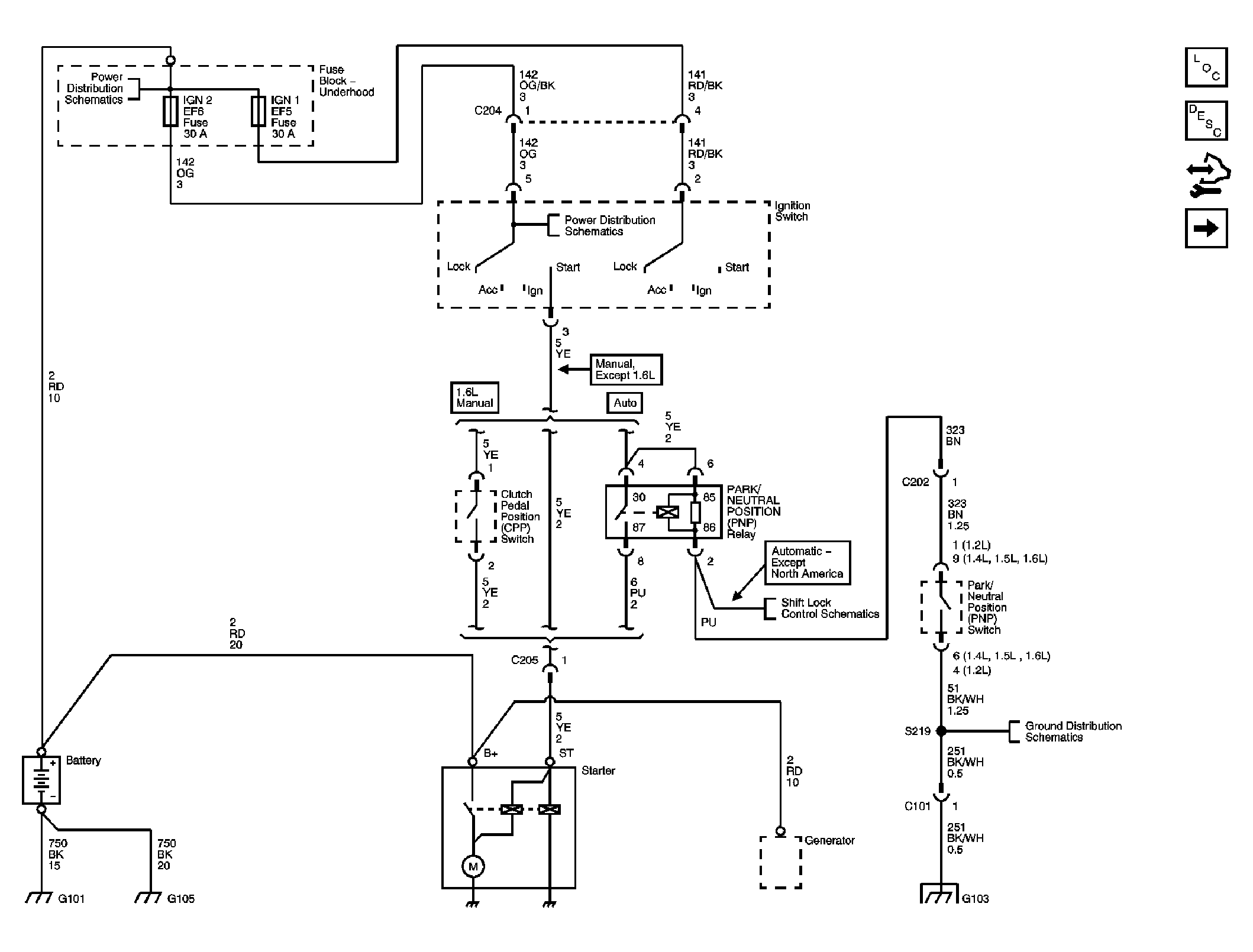

Fig 1: Starting System
GM1907802Courtesy of GENERAL MOTORS CORP.

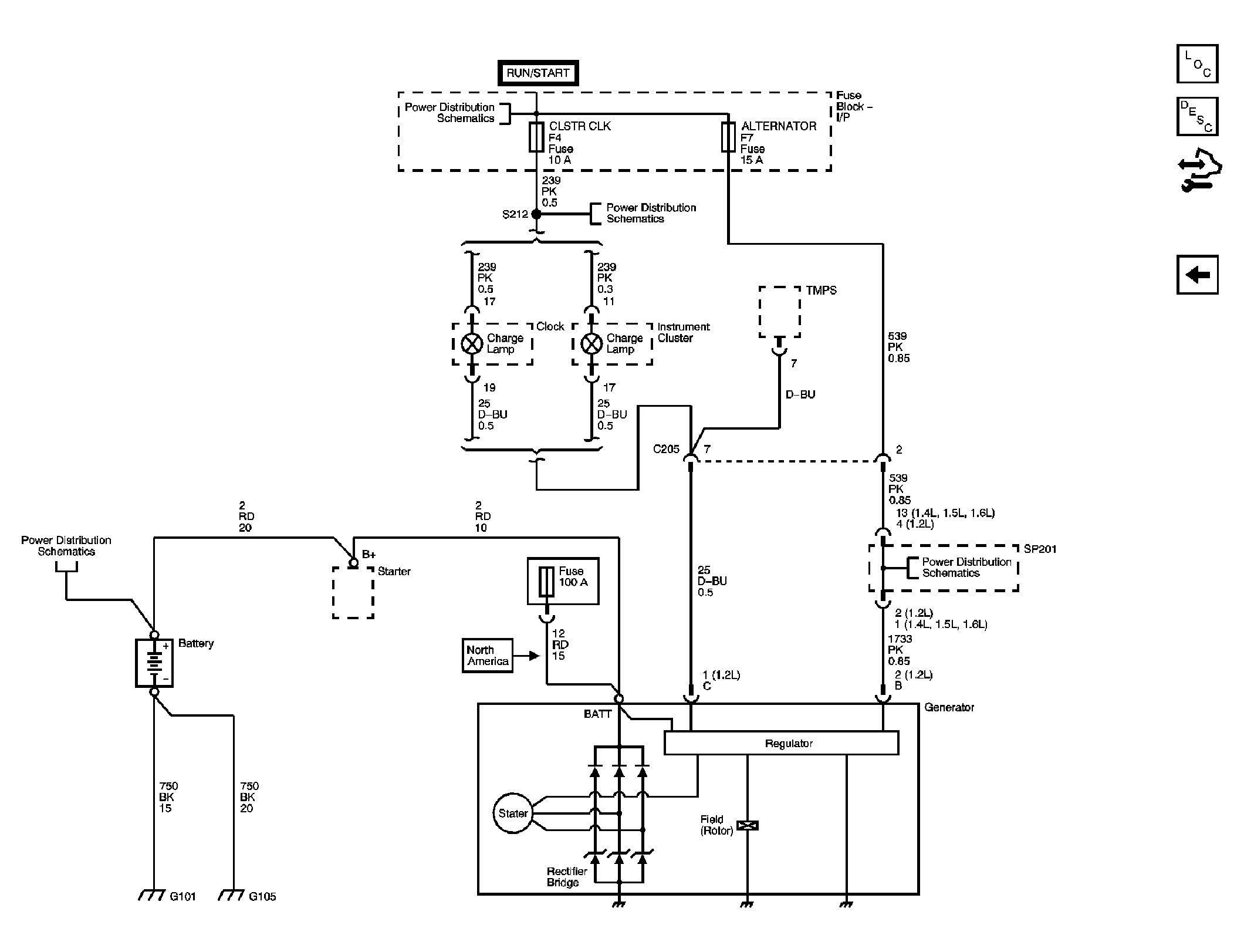

Fig 2: F4, F7, Generator
GM1945967Courtesy of GENERAL MOTORS CORP.
