Engine Electrical Connector End Views (Hatchback)

Clutch Start Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		MG 630676 2-Way F 250 Series
Pin	Wire Color	Circuit No.	Function
1	YE	5	Crank Voltage
2	PU	5	Clutch Start Switch Signal

Generator (1.2L)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12040753 2-Way F Metri-Pack 150 Series Sealed, Pull To Seat (BK)
Pin	Wire Color	Circuit No.	Function
A	D-BU	25	Charge Indicator Signal
B	PK	39	Ignition 1 Voltage

Generator (1.4L, 1.5L, 1.6L)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12186568 4-Way F Metri-Pack 150 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used
B	D-BU	25	Charge Indicator Signal
C	PK	39	Ignition 1 Voltage
D	-	-	Not Used

Ignition Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		MG 650887 6-Way F 250 III Series (WH)
Pin	Wire Color	Circuit No.	Function
1	RD/BK	341	Ignition 3 Voltage
2	RD/BK	141	Ignition 3 Voltage
3	YE	5	Crank Voltage
4	PK	3	Ignition 1 Voltage
5	OG	142	Battery Positive Voltage
6	YE	4	Accessory Voltage

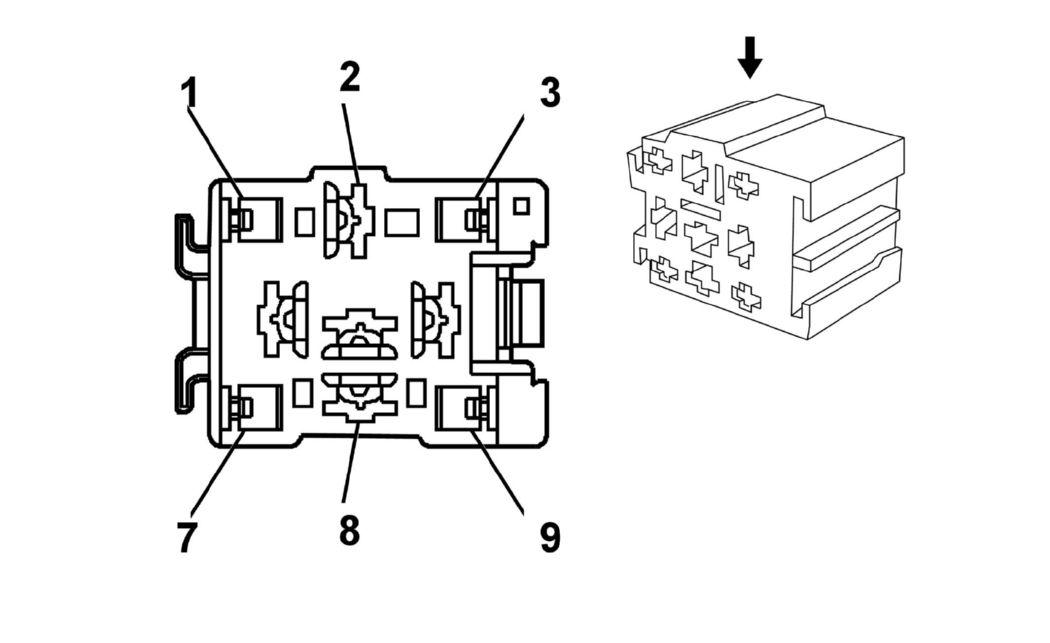

Park/Neutral Position (PNP) Relay (Automatic Transmission)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AK36905 9-Way F Relay Connector (BU)
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	BN	323	Park/Neutral Position (PNP) Signal
2	PU	434	Automatic Transmission Shift Lock Control (RHD)
3	-	-	Not Used
4	YE	5	Crank Voltage
4	YE	5	Crank Voltage
5	-	-	Not Used
6	YE	5	Crank Voltage
7	-	-	Not Used
8	PU	6	Starter Solenoid Crank Voltage
9	-	-	Not Used
