Outside Rearview Mirror Schematics (Notchback)

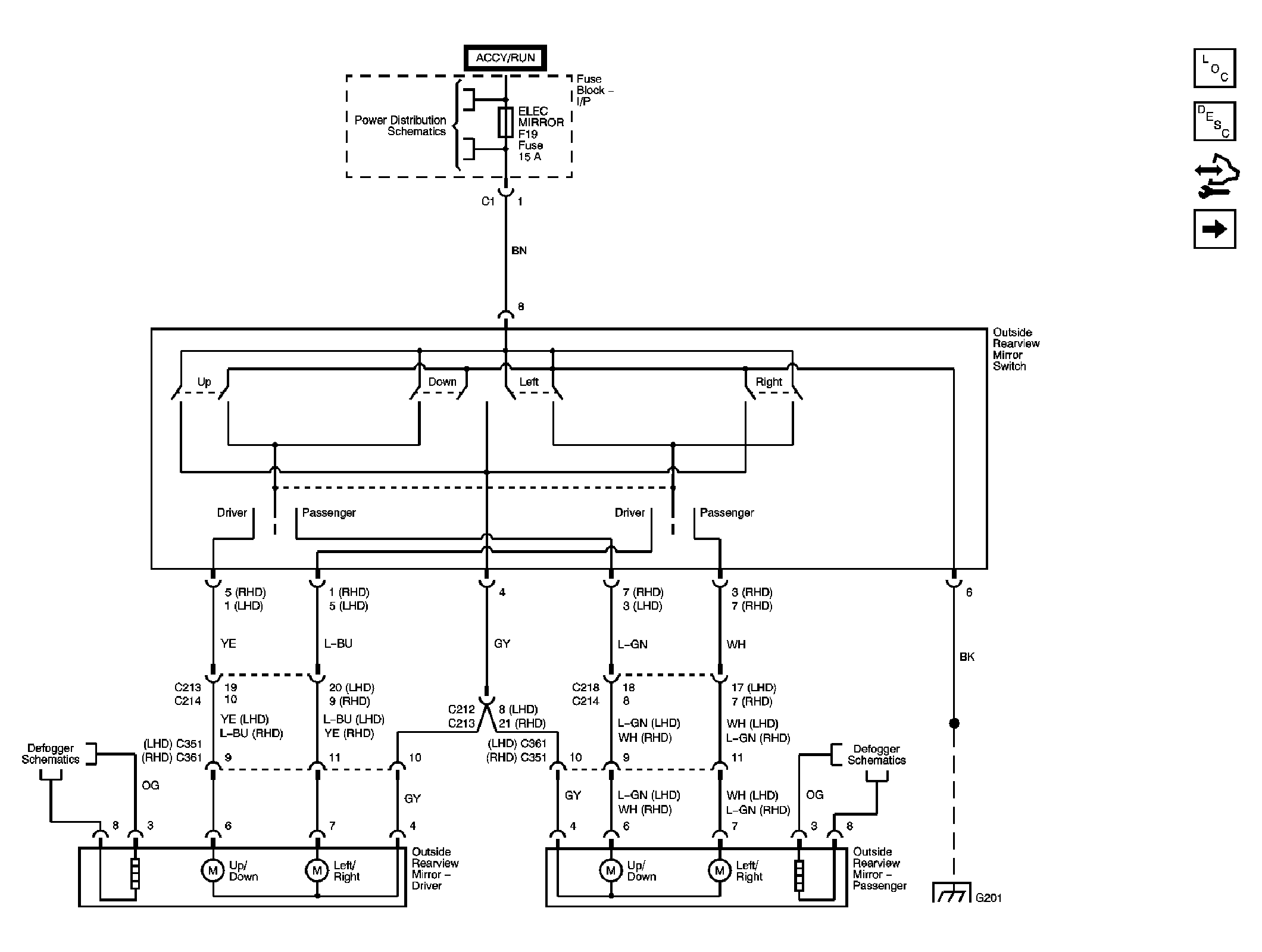

Fig 1: Power Mirrors
GM1736664Courtesy of GENERAL MOTORS CORP.

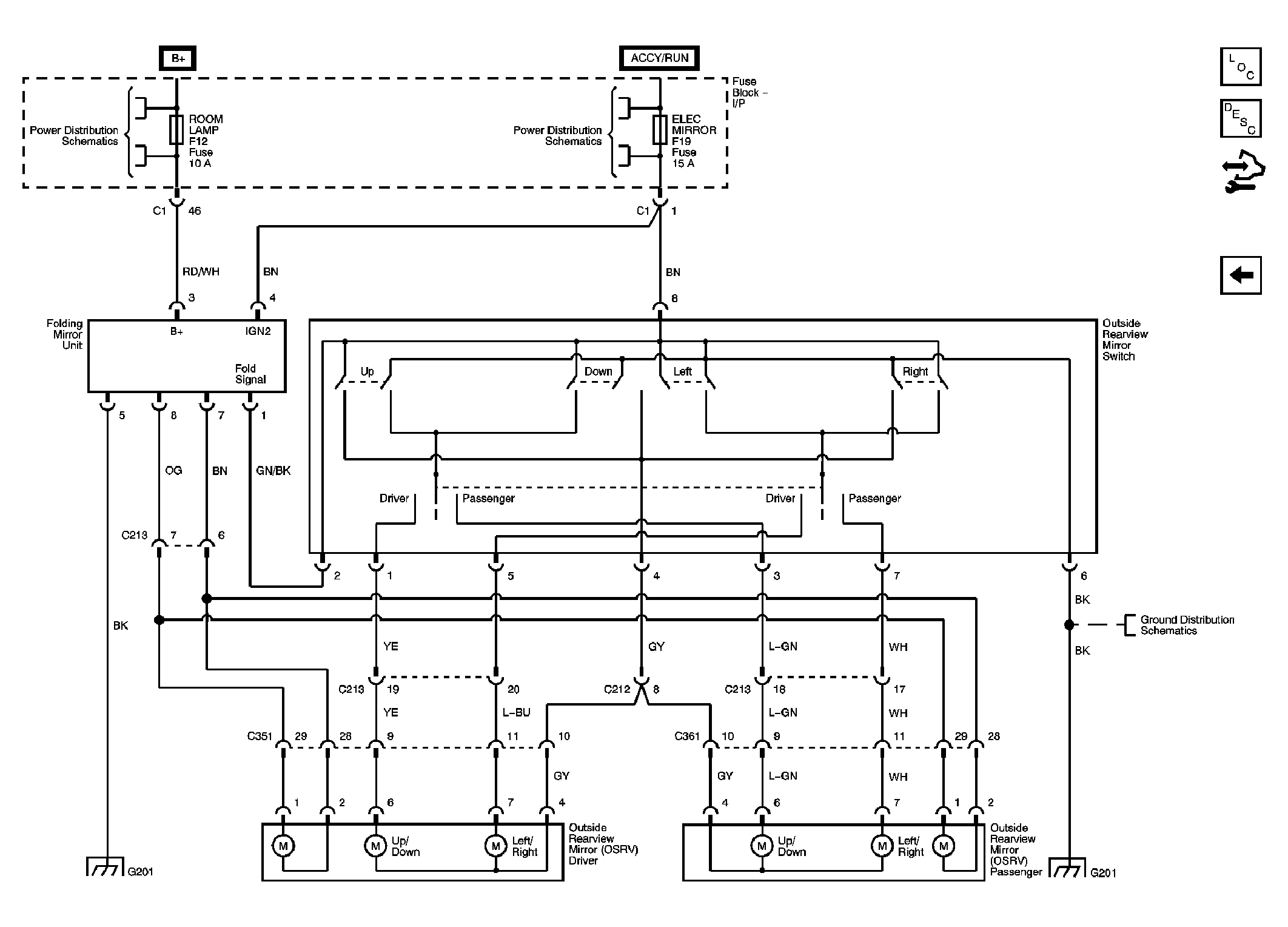

Fig 2: Folding Mirrors
GM1750575Courtesy of GENERAL MOTORS CORP.
