Harness Routing Views (Notchback)

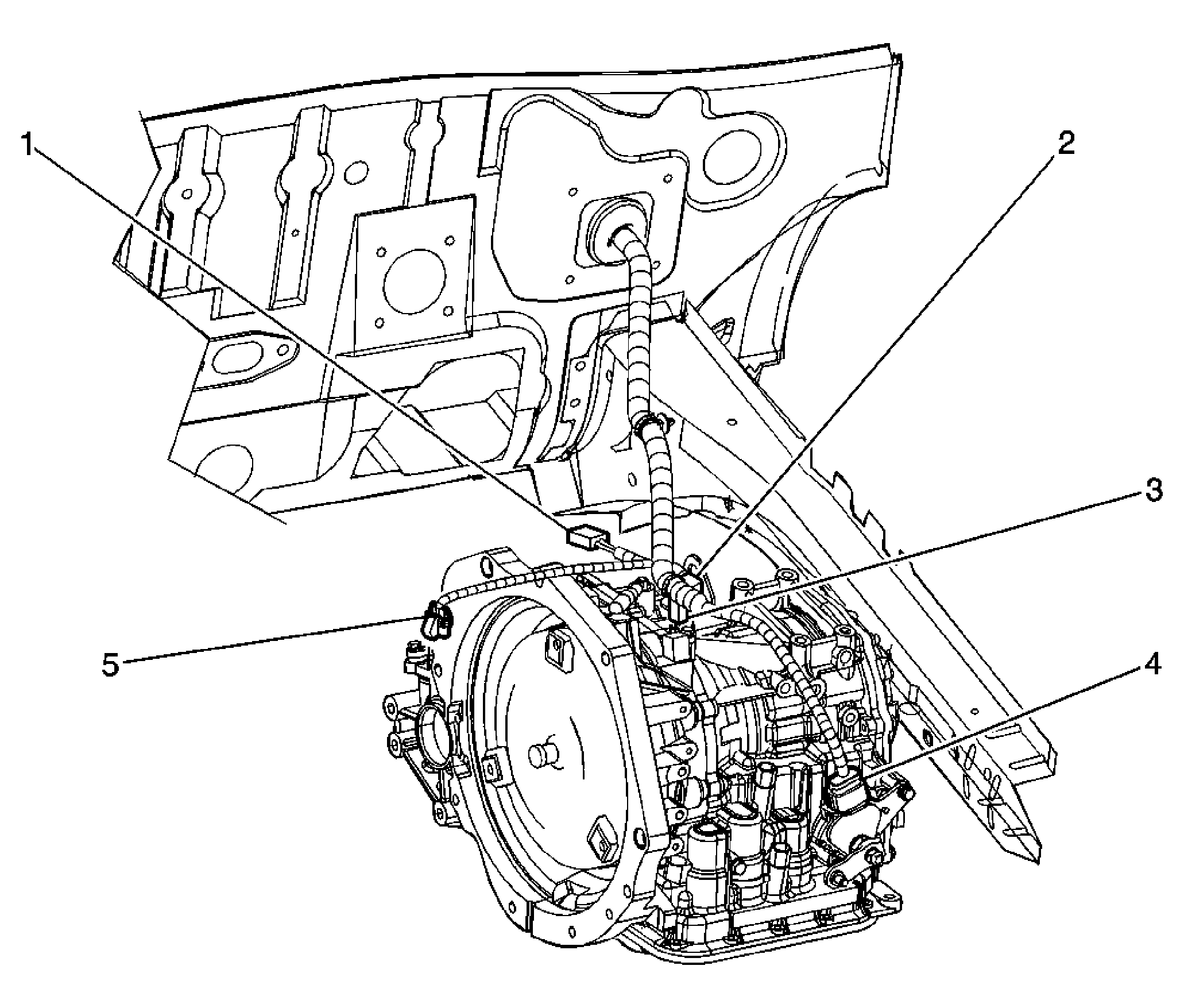

Fig 1: Transmission Harness Routing View
GM1728359Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C105
2 Transmission Connector
3 Input Speed Sensor
4 PNP Switch
5 Vehicle Speed Sensor

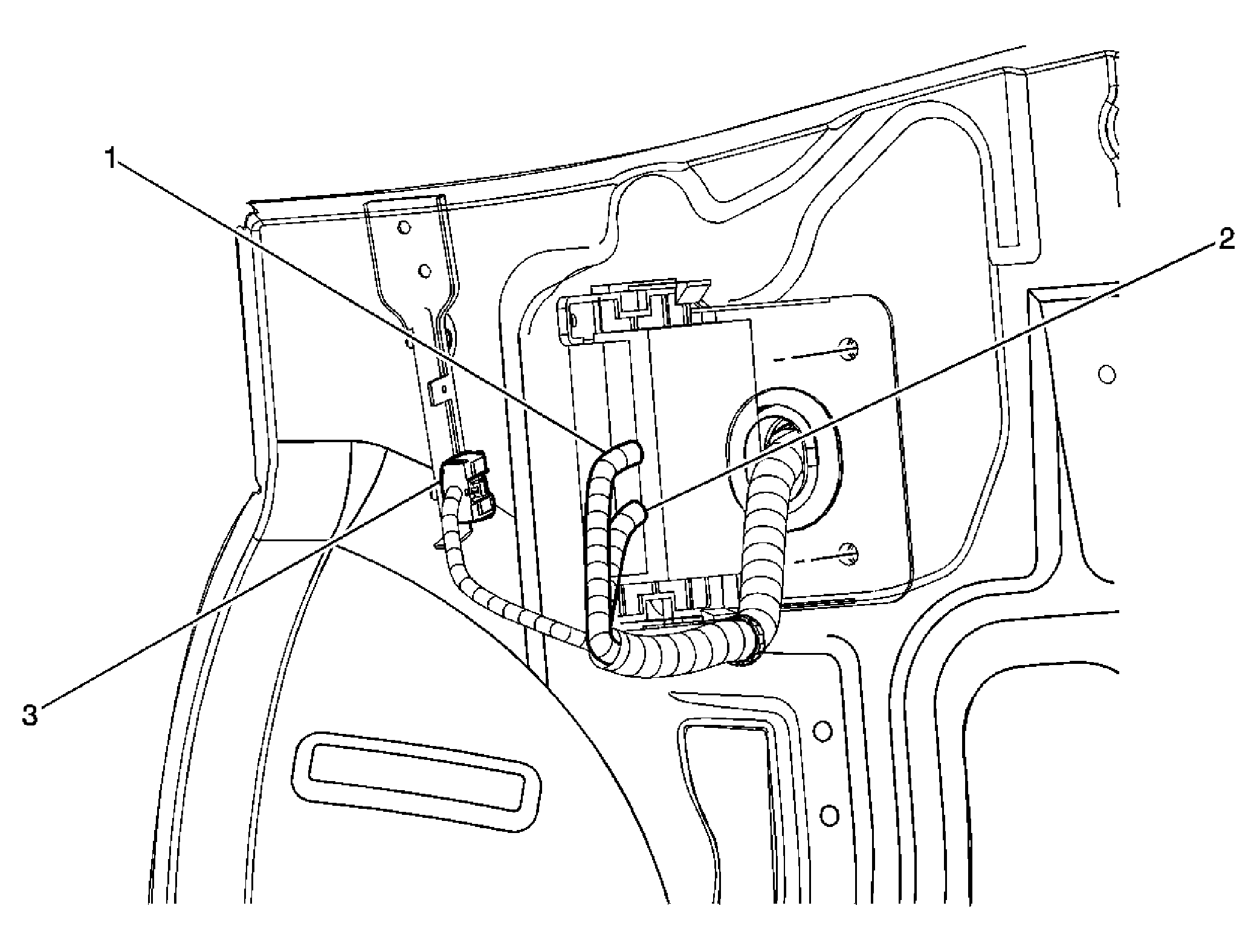

Fig 2: TCM Harness
GM1728374Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 TCM Connector A
2 TCM Connector B
3 C206

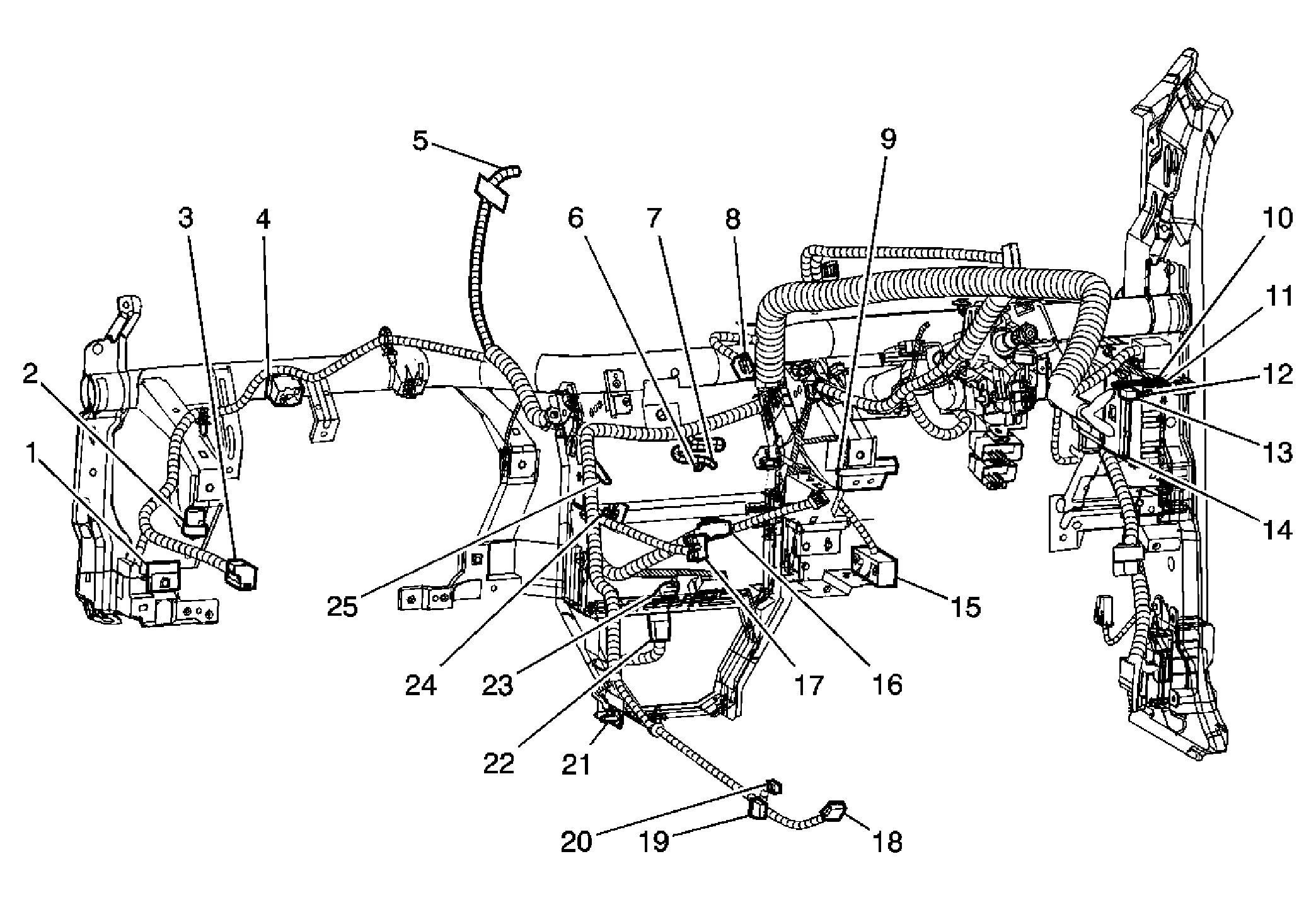

Fig 3: I/P Harness Routing View
GM1728416Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor
2 Blower Resistor
3 C217
4 Intake Actuator
5 Clock
6 Radio Connector B
7 Radio Connector A
8 Brake Switch
9 Contact Coil
10 G202
11 Power Mirror Control Switch
12 PNP Relay
13 Dimmer Control Switch
14 C201
15 DLC
16 Blower Switch
17 Hazard Switch
18 Automatic Transmission Lever Connector
19 Hold Switch
20 Transmission Shifter Illumination
21 G203
22 Ashtray
23 C216
24 A/C Switch
25 Antenna Cable

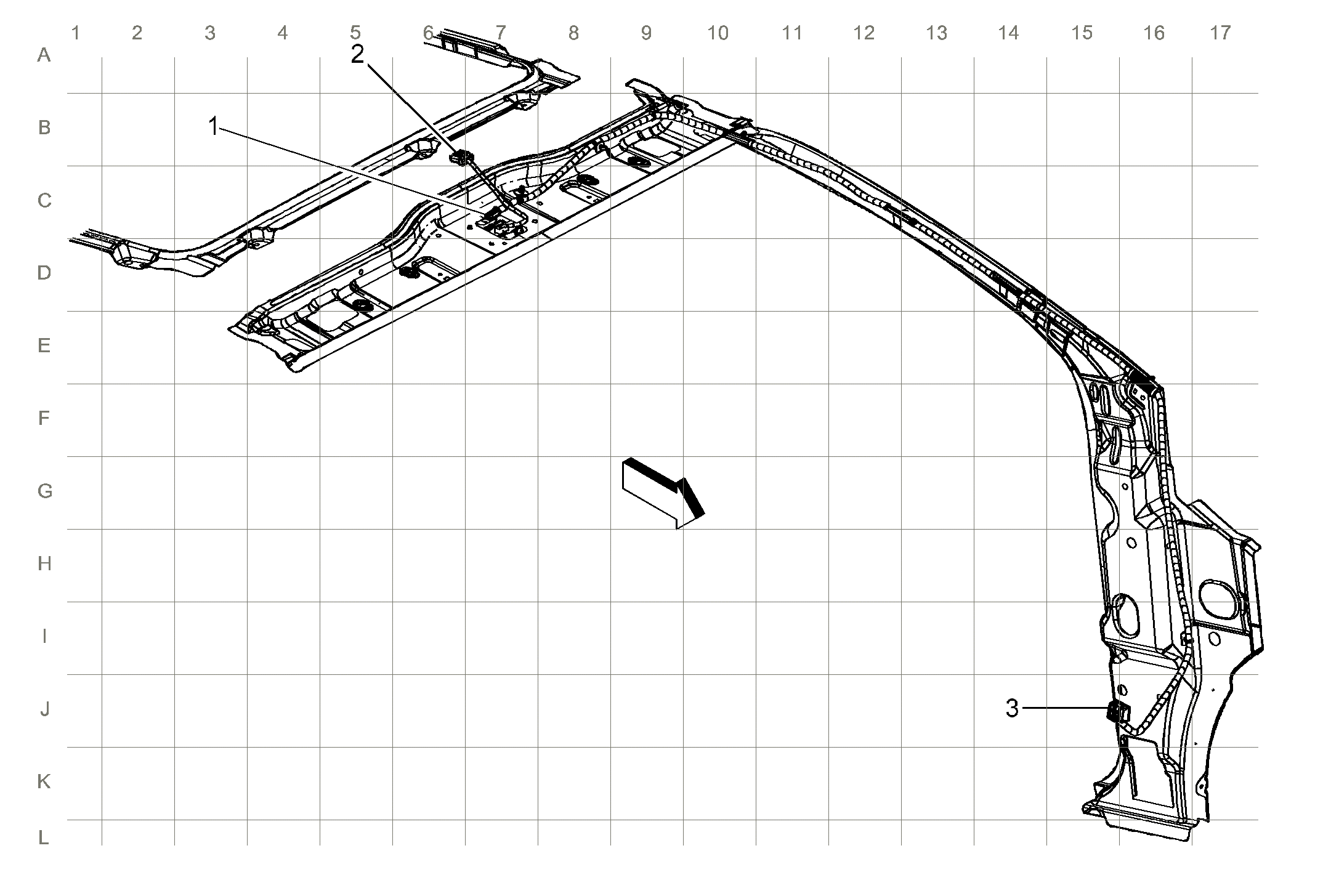

Fig 4: Roof Harness Routing View
GM1728384Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome Lamp
2 Sunroof Module
3 C210

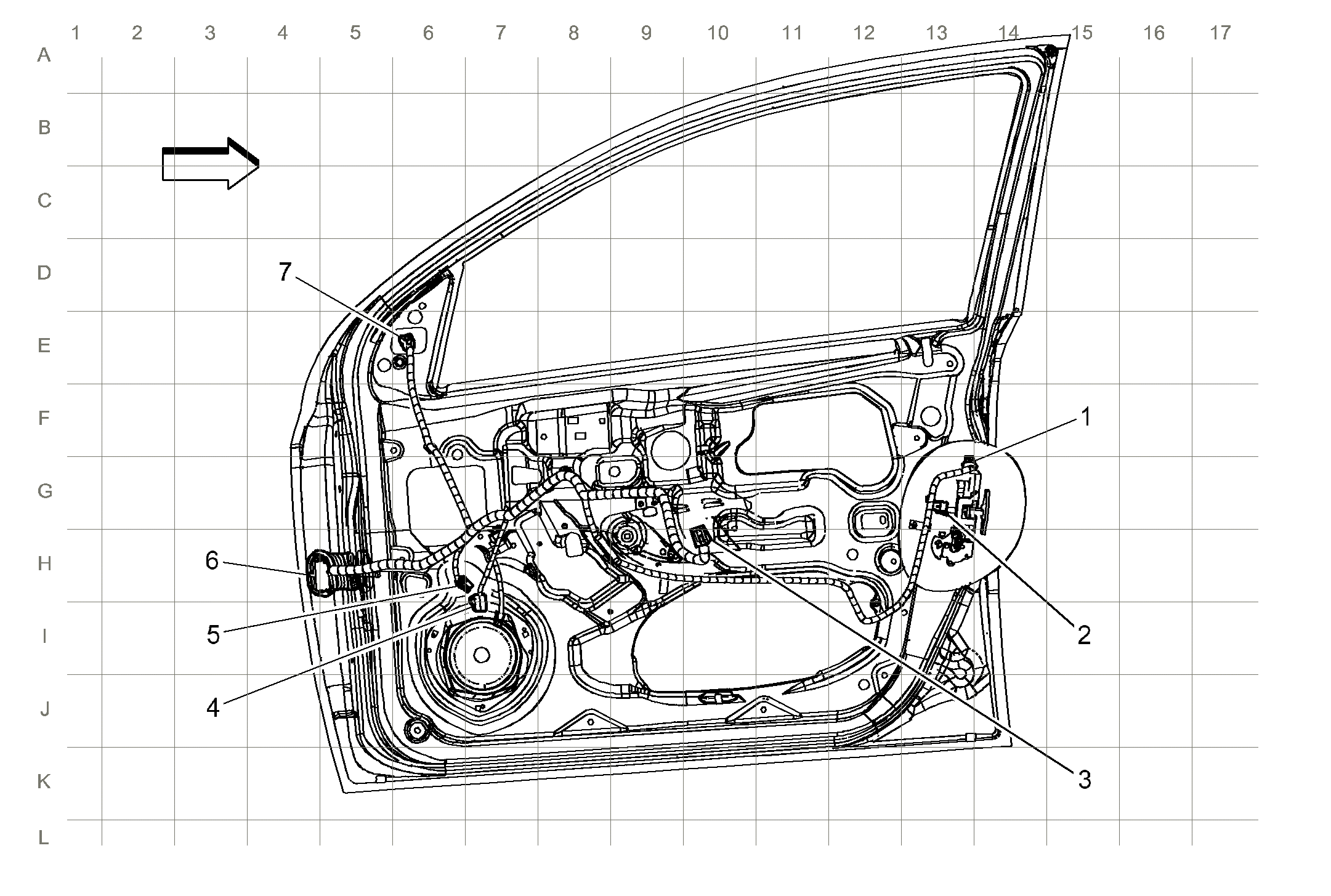

Fig 5: Front Door
GM1728369Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Door Lock Switch
2 Power Door Lock Actuator
3 Power Window Switch
4 Speaker
5 Decklid Release Switch
6 C351/C361
7 Power Mirror Connector

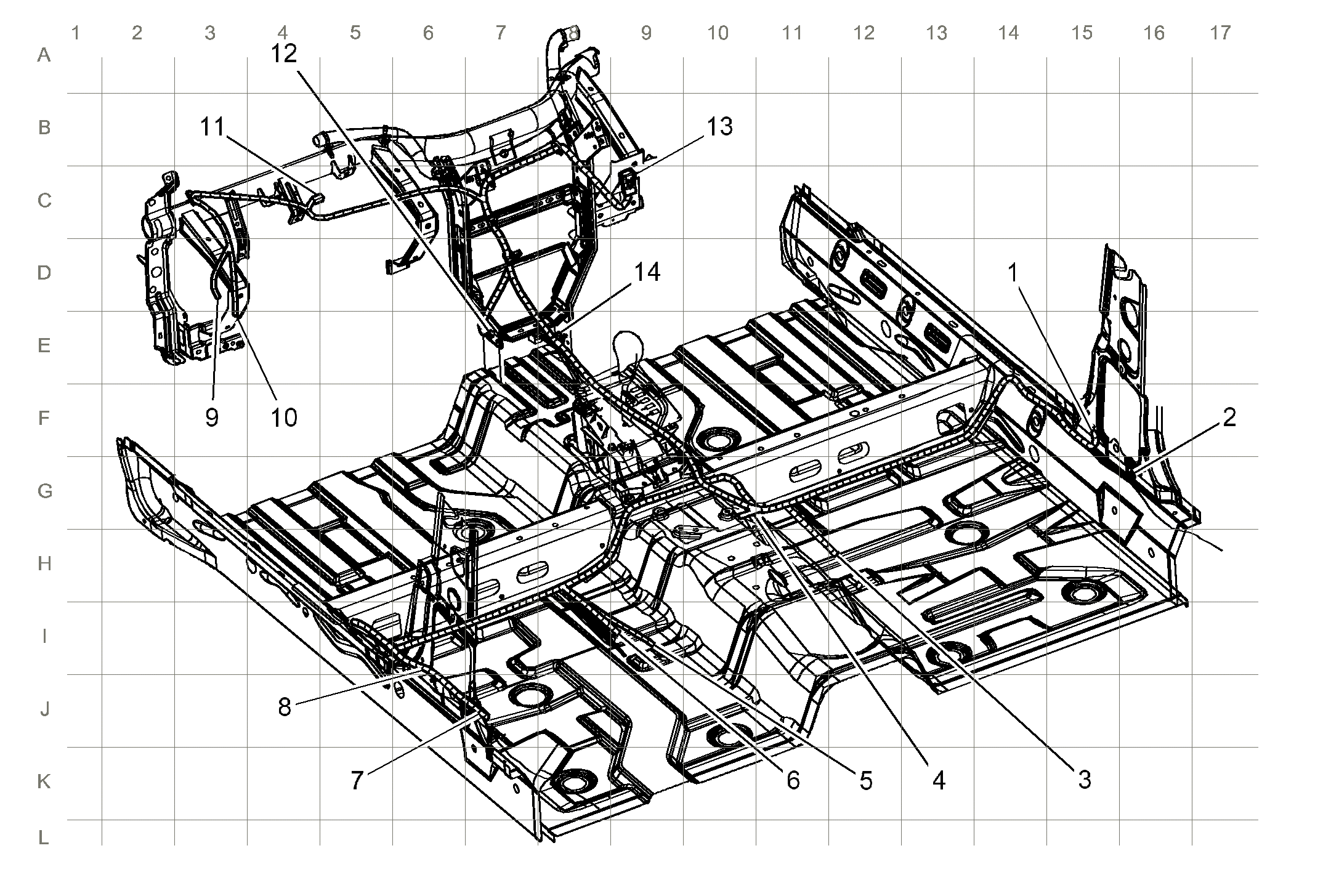

Fig 6: Floor Harness Routing View
GM1728378Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Side Impact Sensor - Right
2 Seat Belt Pretensioner - Right
3 Inflatable Restraint Side Impact Module - Right
4 Inflatable Restraint Sensing and Diagnostic Module (SDM)
5 Passenger Pressence System (PPS) Sensor
6 Inflatable Restraint Side Impact Module - Left
7 Seat Belt Pretensioner - Left
8 Infltable Restraint Side Impact Sensor - Left
9 Passenger Airbag Disable Switch
10 Glove Box Switch
11 Inflatable Restraint - I/P Module
12 C216
13 Inflatable Restraint Steering Wheel Module
14 G203

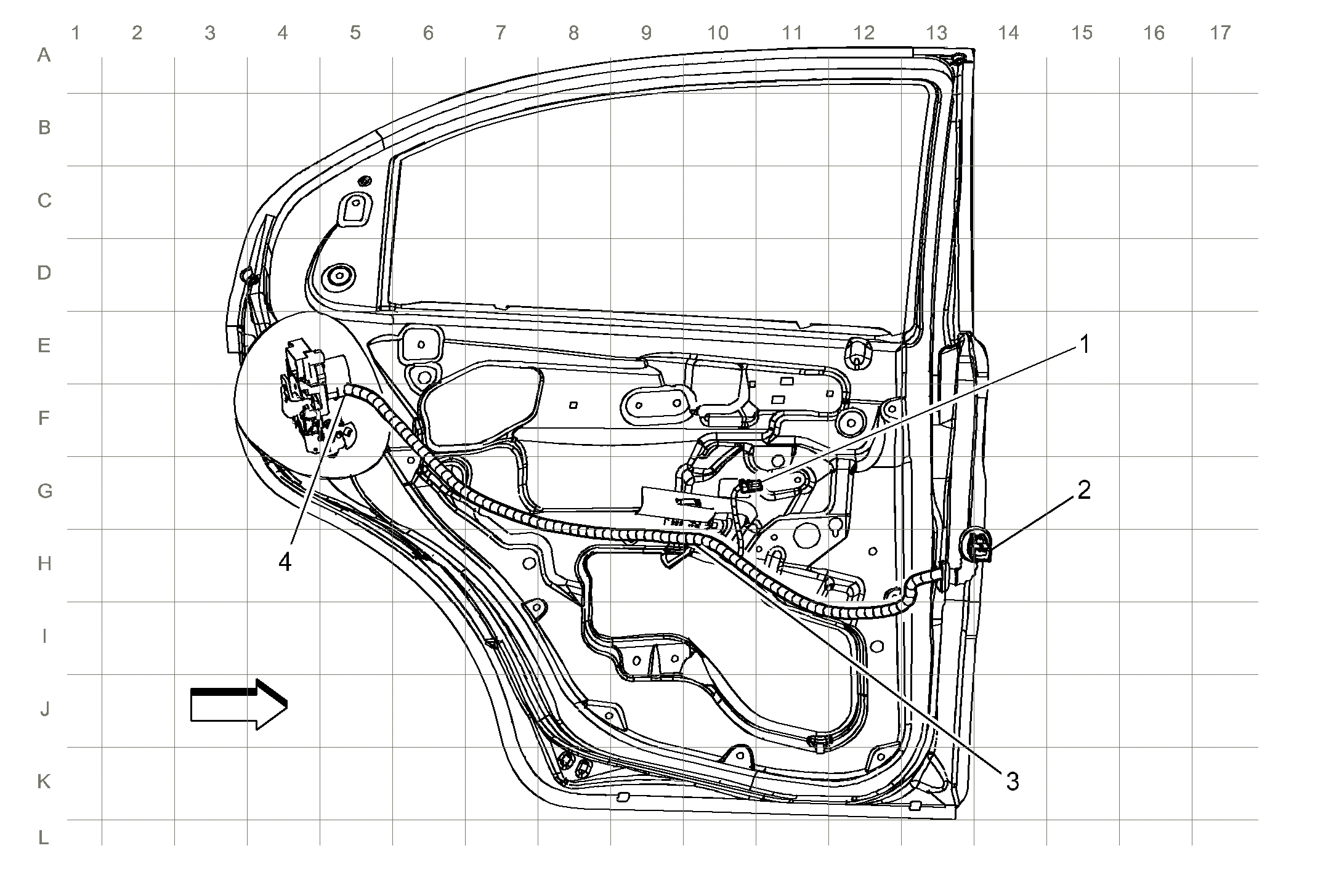

Fig 7: Rear Door
GM1728371Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Window Motor
2 C372/381
3 Power Window Switch
4 Power Door Lock Actuator

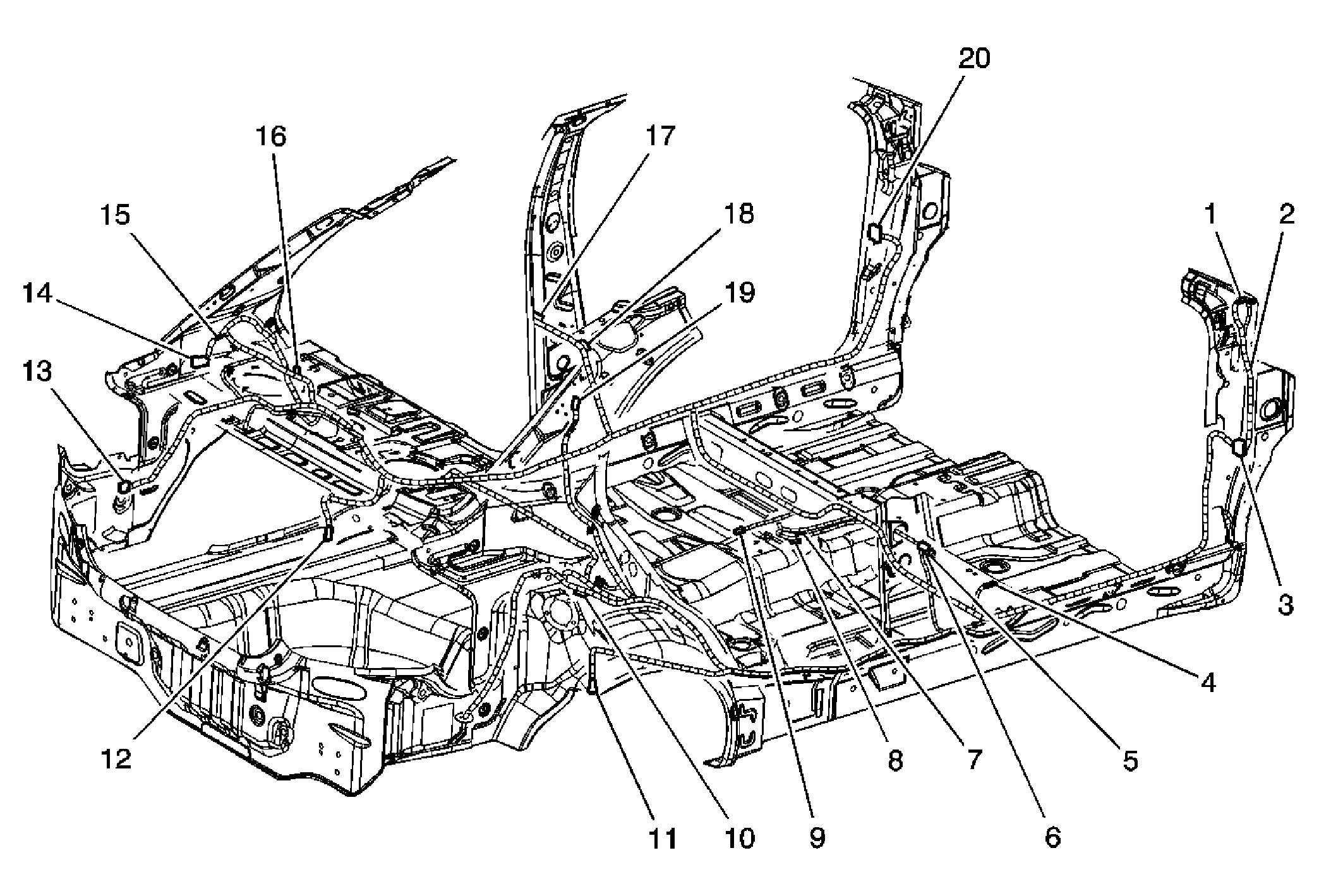

Fig 8: Floor Harness View
GM1728424Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Tweeter
2 C361
3 G204
4 C361
5 Passenger Front Door Switch
6 C381
7 Power Outlet
8 Parking Brake Switch
9 Seatbelt Switch
10 Fuel Pump
11 Passenger Rear Door Switch
12 Wheel Speed Sensor
13 C401
14 C402
15 G401
16 Driver Rear Door Switch
17 C371
18 Driver Front Door Switch
19 Radio Antenna
20 C351

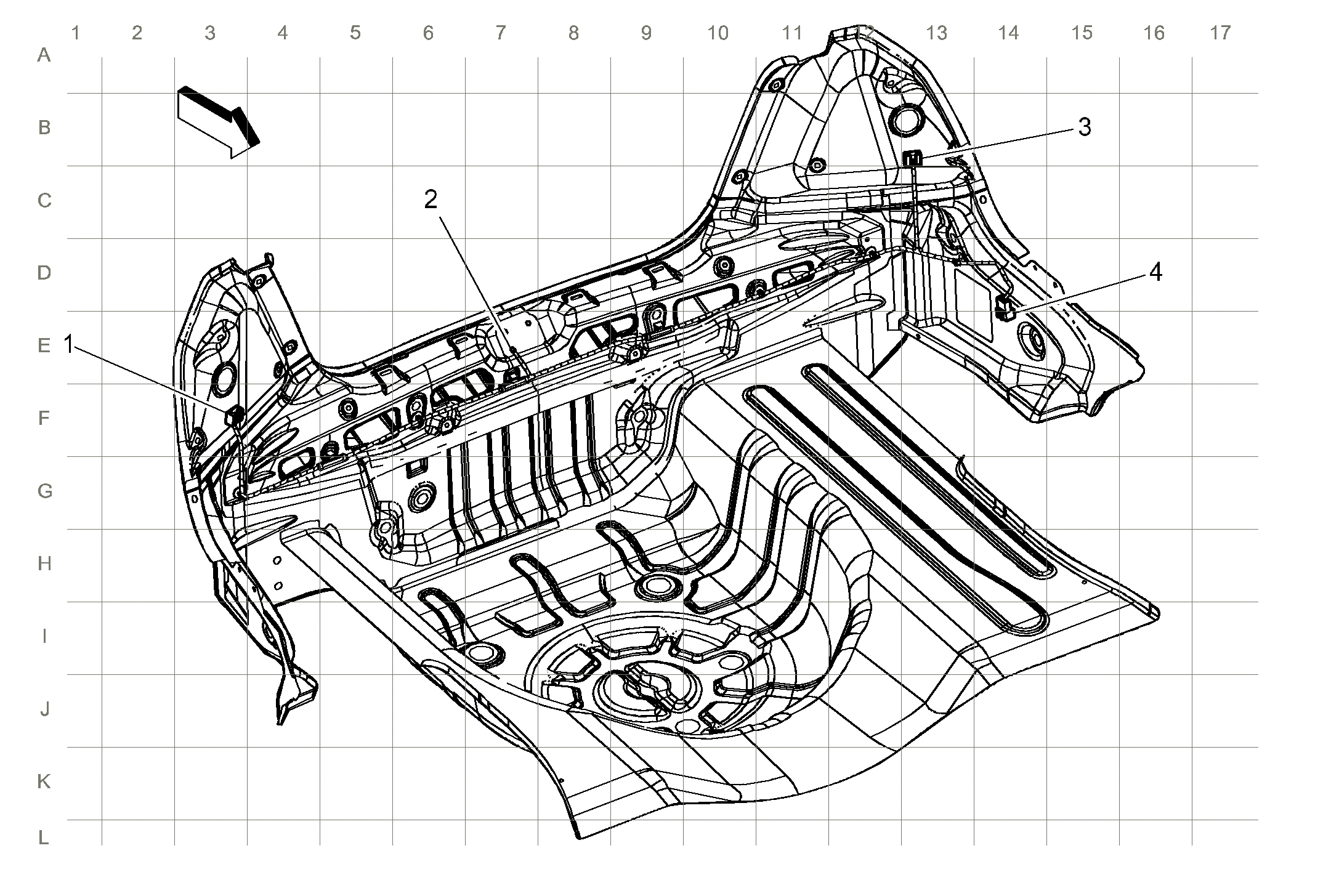

Fig 9: Trunk Floor Harness
GM1728380Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RH Tail Lamp
2 G402
3 LH Tail Lamp
4 C401

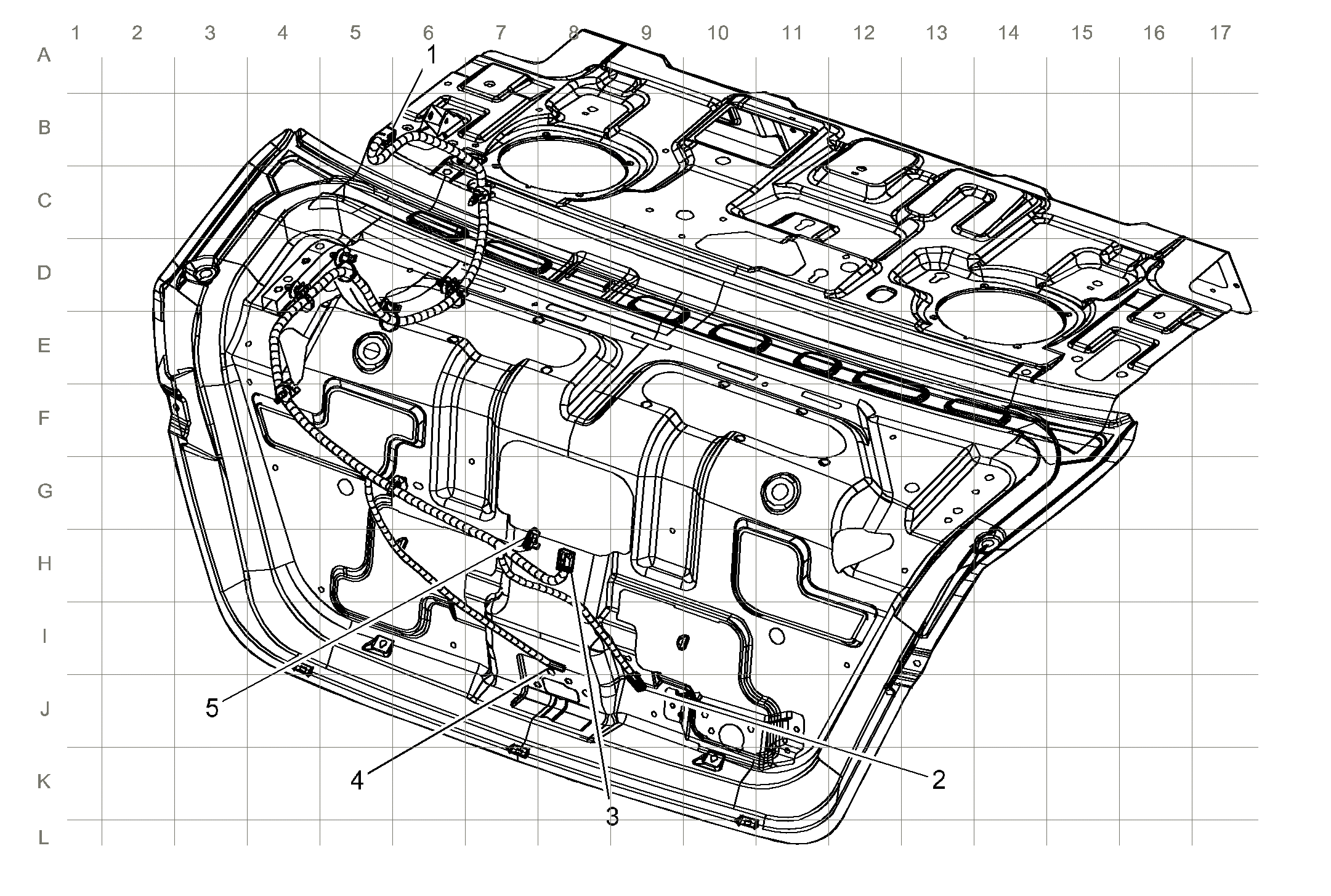

Fig 10: Trunk Harness View
GM1728382Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C402
2 Decklid Tamper Switch
3 Decklid Actuator Switch
4 Latch
5 License Plate Lamp
