Ground Distribution Schematics (Notchback)

Fig 1: G100, G101, G103

GM1729709

Courtesy of GENERAL MOTORS CORP.

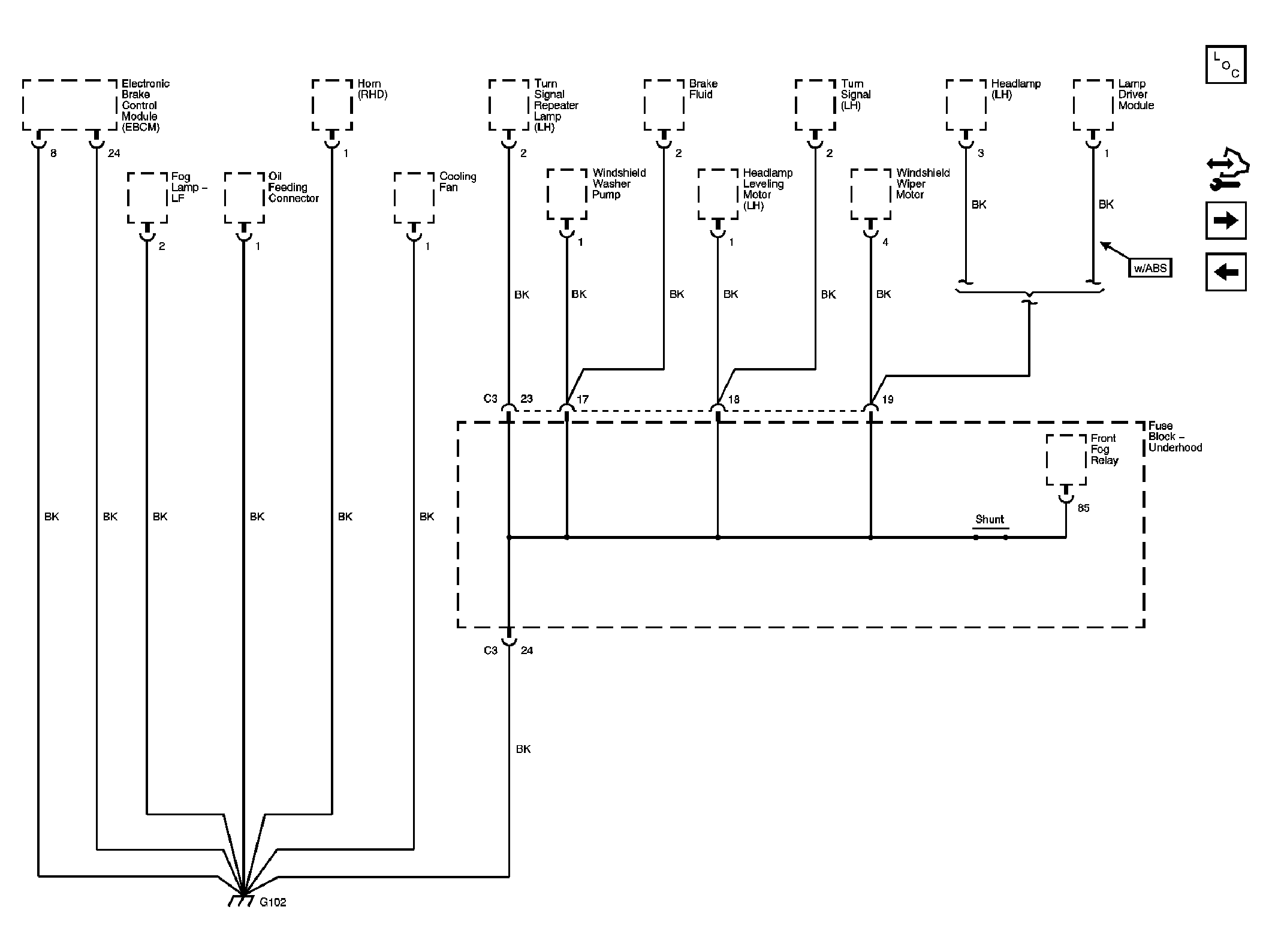

Fig 2: G102

GM1729711

Courtesy of GENERAL MOTORS CORP.

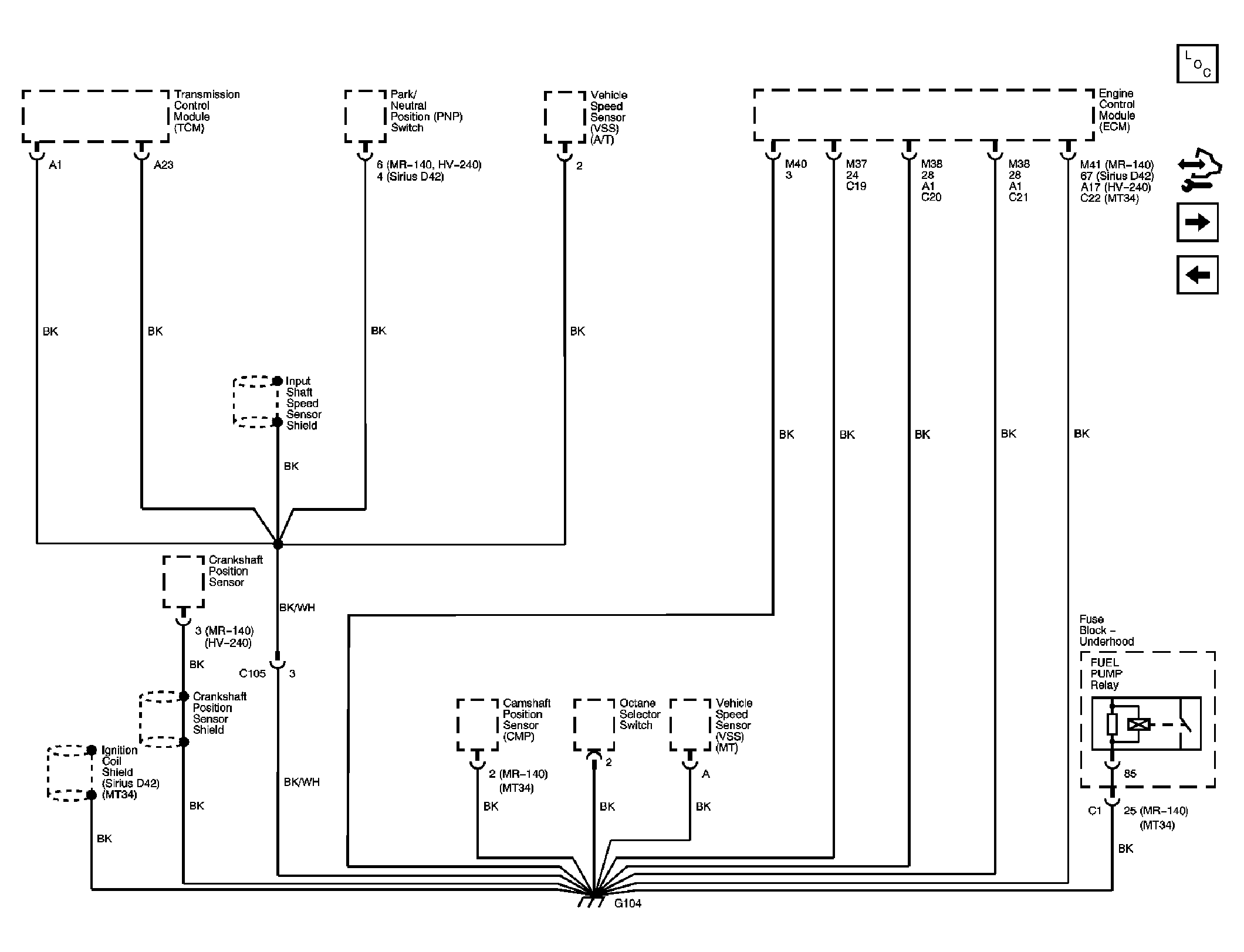

Fig 3: G104

GM1729713

Courtesy of GENERAL MOTORS CORP.

Fig 4: G202 (1 of 3)

GM1729718

Courtesy of GENERAL MOTORS CORP.

Fig 5: G201 (2 of 3)

GM1729719

Courtesy of GENERAL MOTORS CORP.

Fig 6: G201 (3 of 3), G202

GM1729717

Courtesy of GENERAL MOTORS CORP.

Fig 7: G203

GM1729722

Courtesy of GENERAL MOTORS CORP.

Fig 8: G204, G301

GM1729723

Courtesy of GENERAL MOTORS CORP.

Fig 9: G401, G402

GM1729724

Courtesy of GENERAL MOTORS CORP.
