Ground Distribution Schematics (Hatchback)

Fig 1: G101, G102 and G105

GM1679685

Courtesy of GENERAL MOTORS CORP.

Fig 2: G102 cont.

GM1679688

Courtesy of GENERAL MOTORS CORP.

Fig 3: G103 - 1.2L

GM1679691

Courtesy of GENERAL MOTORS CORP.

Fig 4: G103 - 1.4L

GM1679756

Courtesy of GENERAL MOTORS CORP.

Fig 5: G103 - 1.5L

GM1679759

Courtesy of GENERAL MOTORS CORP.

Fig 6: G103 - 1.6L

GM1679763

Courtesy of GENERAL MOTORS CORP.

Fig 7: G104

GM1679764

Courtesy of GENERAL MOTORS CORP.

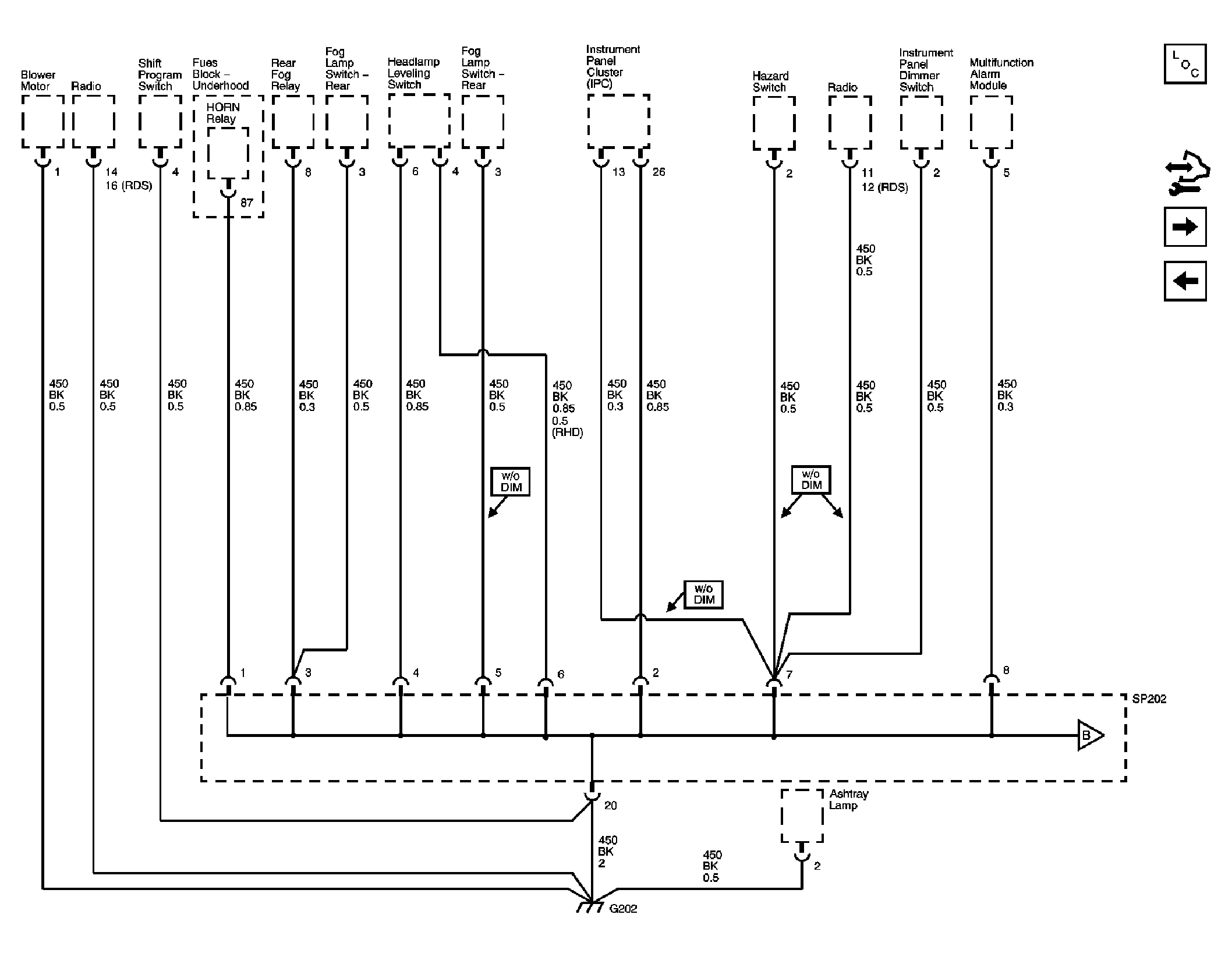

Fig 8: G202 - 1 of 3

GM1910600

Courtesy of GENERAL MOTORS CORP.

Fig 9: G202 - 2 of 3

GM1679792

Courtesy of GENERAL MOTORS CORP.

Fig 10: G201 and G202 - 3 of 3

GM1910483

Courtesy of GENERAL MOTORS CORP.

Fig 11: G301

GM1679796

Courtesy of GENERAL MOTORS CORP.

Fig 12: G401 (Hatchback) / G901 Schematics

GM1456562

Courtesy of GENERAL MOTORS CORP.

Fig 13: G402 (Hatchback and Notchback Schematics

GM1456553

Courtesy of GENERAL MOTORS CORP.
