Frame Door Opening - Front (Notch Back)

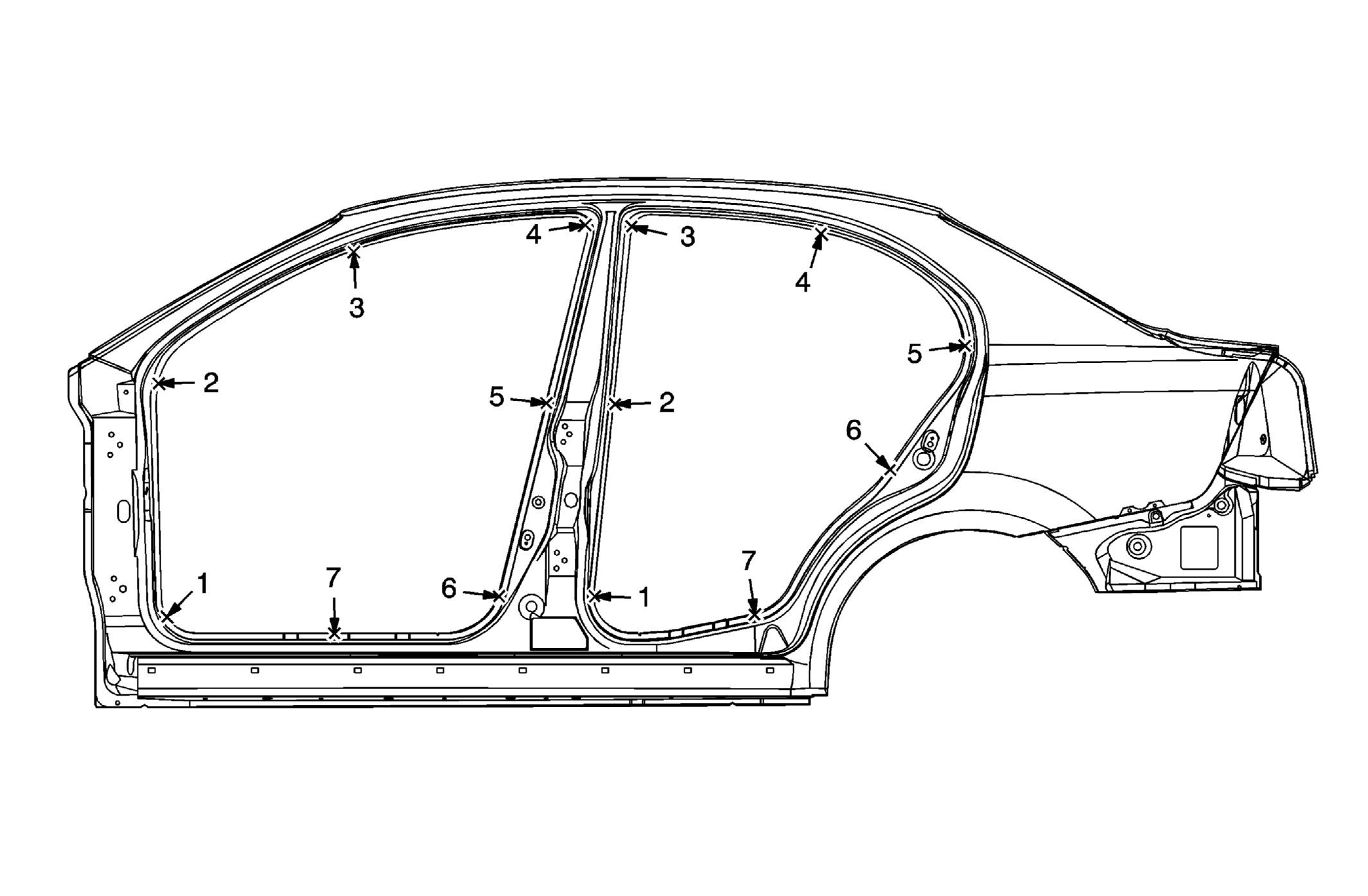

Fig 1: Frame Door Opening Dimensions (Notch Back)

Courtesy of GENERAL MOTORS CORP.

Frame Door Opening - Front (Notch Back) Dimensions

Points	Dimensions (mm)	Dimensions (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
1	1,400	55.12
2	1,355	53.35
3	1,191	46.89
4	1,119	44.06
5	1389	54.69
6	1,402	55.20
7	1,404	55.20
