Special Tools

Illustration Tool Number/ Description

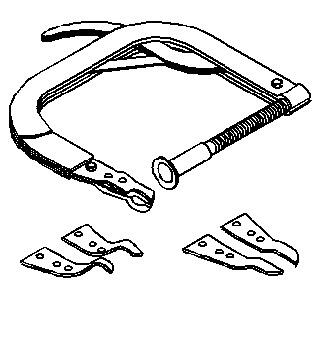

GM3414Courtesy of GENERAL MOTORS CORP.
 J-8062
(KM-348)
Valve Spring Compressor

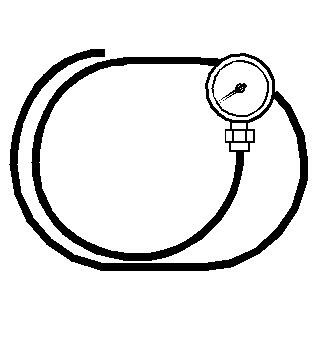

GM29339Courtesy of GENERAL MOTORS CORP.
 J-21867
(KM-498-B)
Pressure Gage
GM5115Courtesy of GENERAL MOTORS CORP.
 J-24086-B
(KM-427)
Piston Pin Remover/Installer Set
GM190562Courtesy of GENERAL MOTORS CORP.
 J-28467-B
(DW-117)
Universal Engine Support Fixture

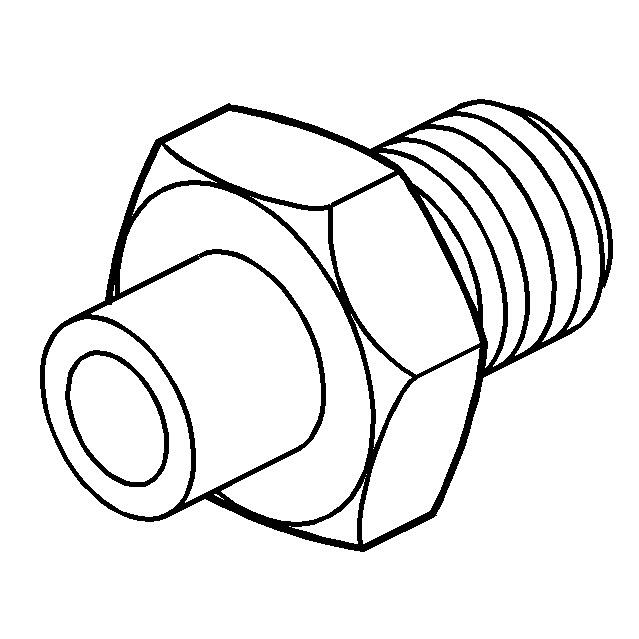

GM1197695Courtesy of GENERAL MOTORS CORP.
 J- 21867-6
(KM-135)
Adapter
GM1282419Courtesy of GENERAL MOTORS CORP.
 J-36972
Crankshaft Rear Oil Seal Installer
GM62293Courtesy of GENERAL MOTORS CORP.
 J-38722
Compression Tester
GM1256928Courtesy of GENERAL MOTORS CORP.
 J-42492-A
(KM-421-A)
Timing Belt Adjuster

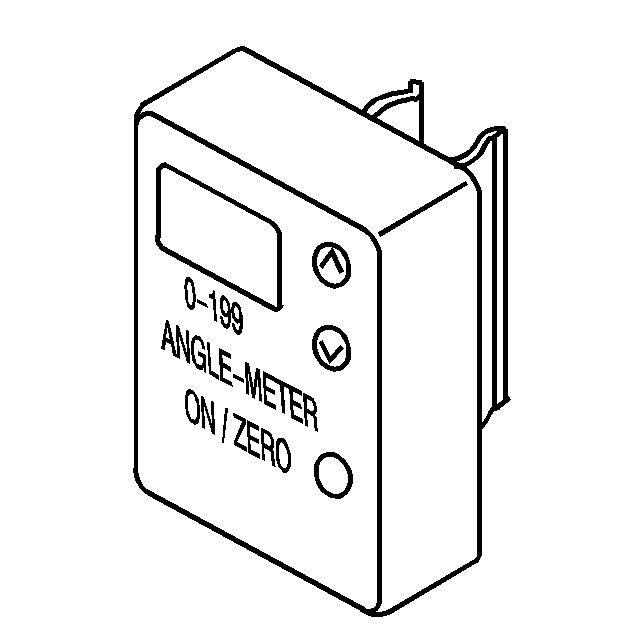

GM1197696Courtesy of GENERAL MOTORS CORP.
 J-45059
Angle Meter
GM1282415Courtesy of GENERAL MOTORS CORP.
 KM-340-1-C
Cutter Set
GM1281167Courtesy of GENERAL MOTORS CORP.
 KM-412
(OTC 1726)
Engine Overhaul Stand

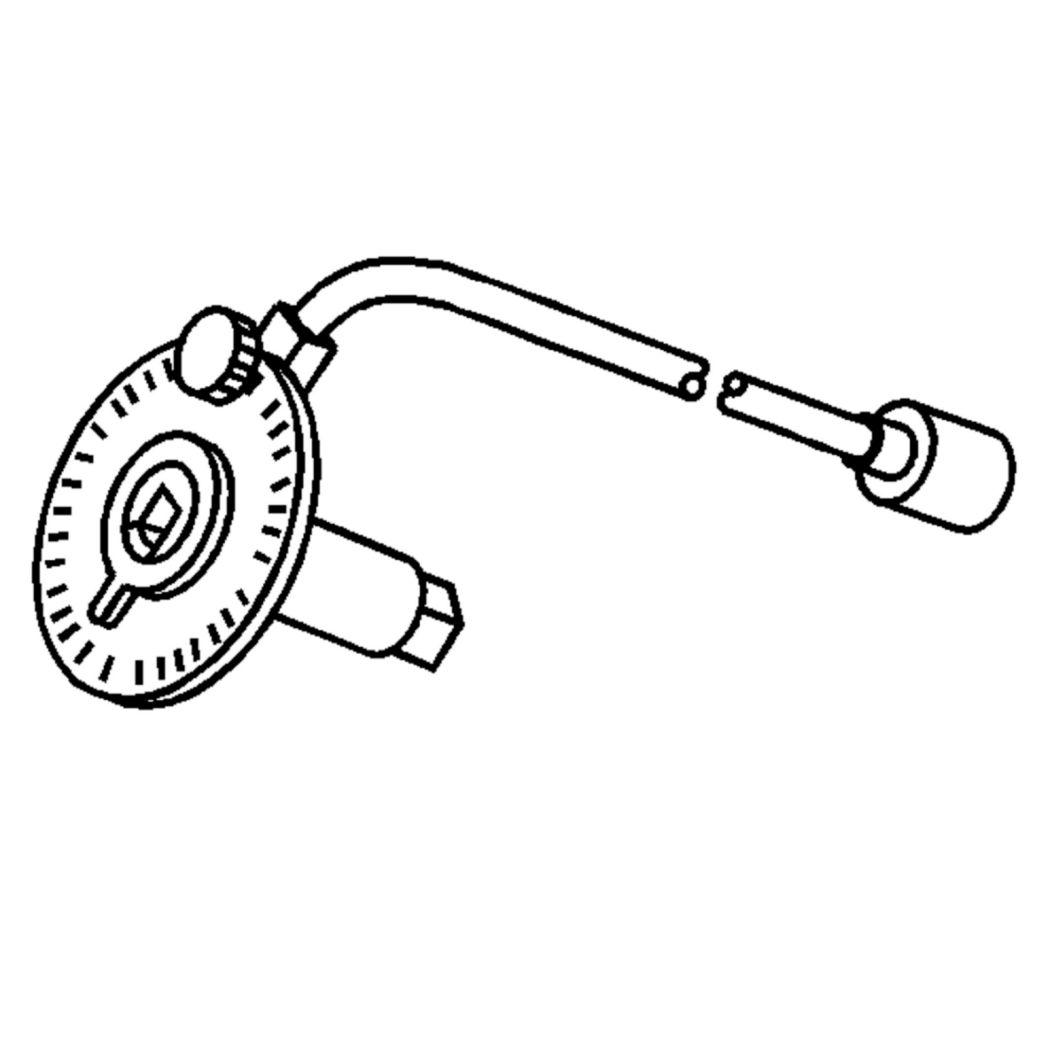

GM1282416Courtesy of GENERAL MOTORS CORP.
 KM-470-B
Angular Torque Gage
GM1282418Courtesy of GENERAL MOTORS CORP.
 KM-571-B
Gage
GM1282420Courtesy of GENERAL MOTORS CORP.
 KM-635
Crankshaft Rear Oil Seal Installer
GM1308688Courtesy of GENERAL MOTORS CORP.
 KM-653-A
Adapter
GM1282417Courtesy of GENERAL MOTORS CORP.
 KM-805
Valve Guide Reamer
