Engine Controls Schematics (MT34 w/Throttle Actuator Control)

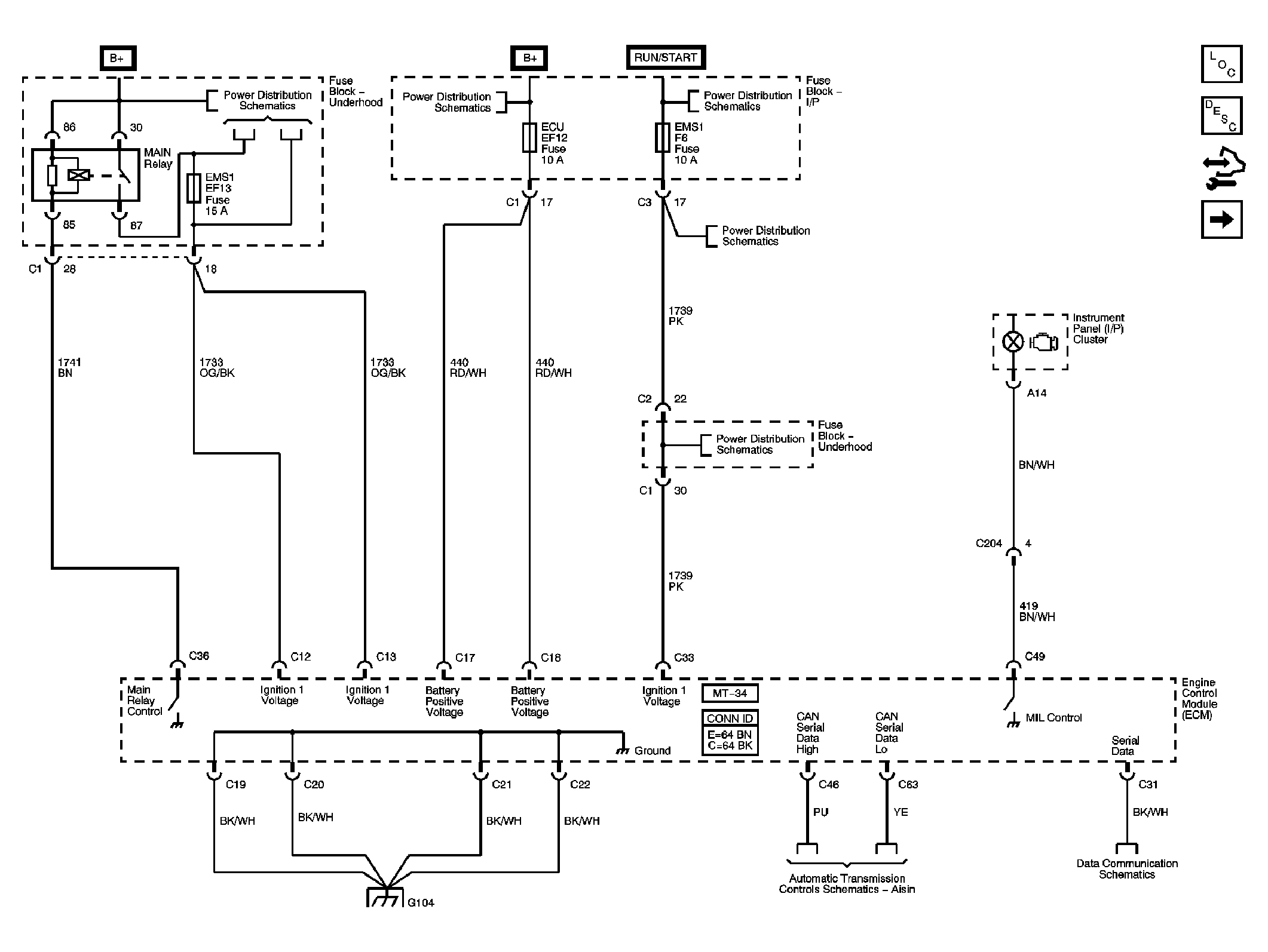

Fig 1: Engine Control Module Power, Ground, MIL

Courtesy of GENERAL MOTORS CORP.

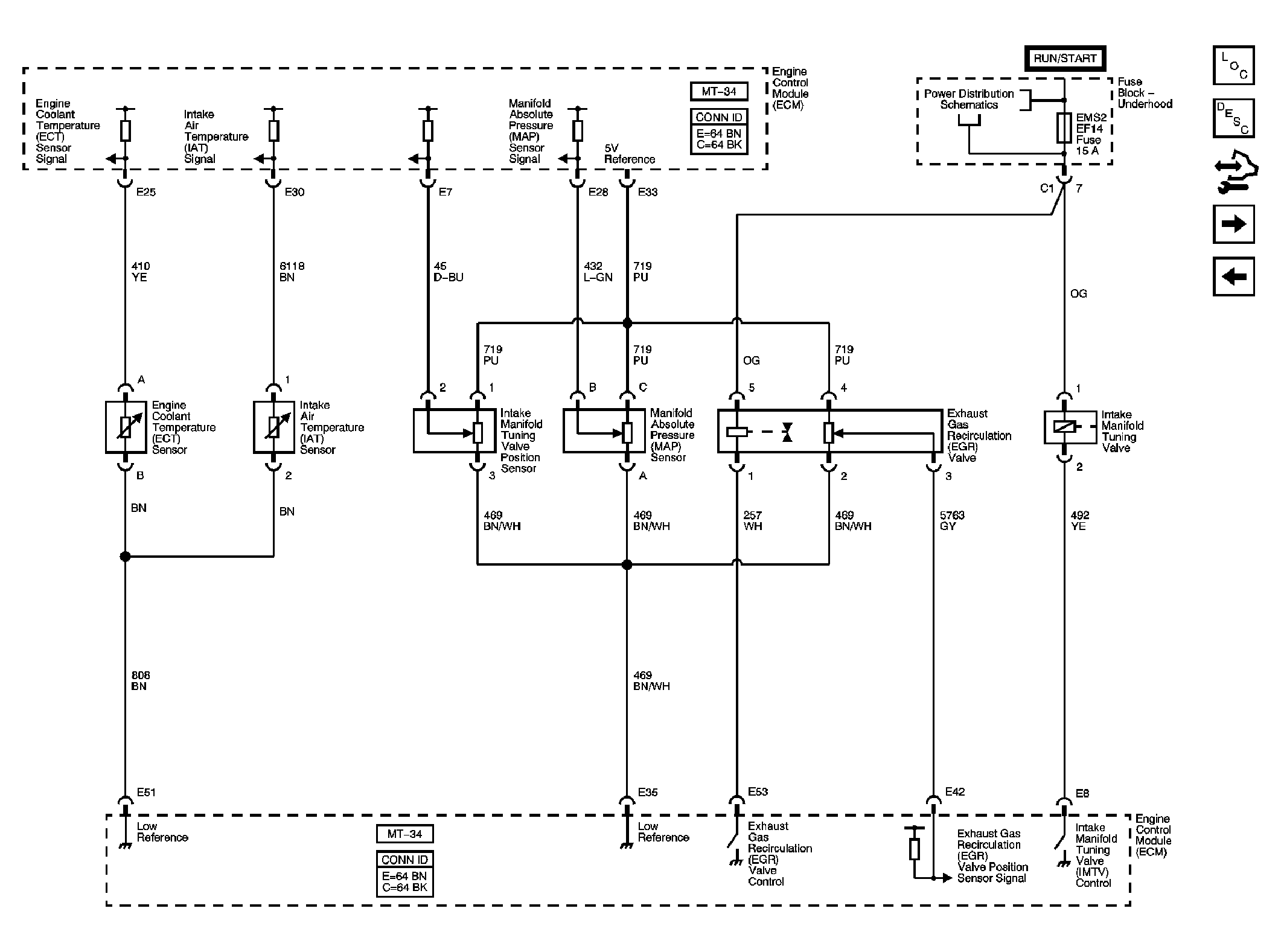

Fig 2: ECT, IAT, MAP, Sensors, Intake Manifold Tuning Valve and Position Sensor, EGR Valve

Courtesy of GENERAL MOTORS CORP.

Fig 3: Electronic Throttle Control (ETC)

Courtesy of GENERAL MOTORS CORP.

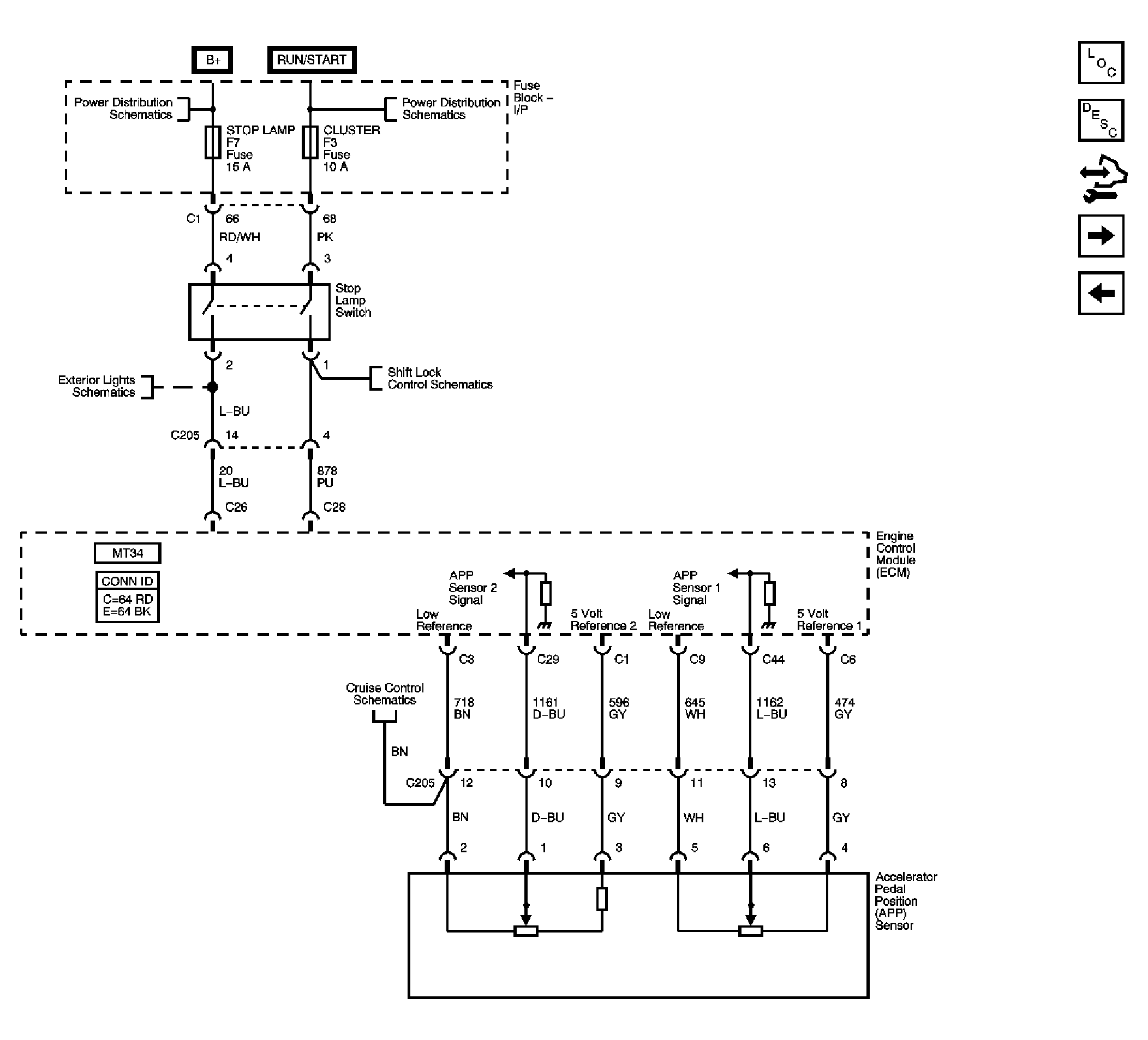

Fig 4: Accelerator Pedal Position (APP) Sensor, Cruise Control Switch

Courtesy of GENERAL MOTORS CORP.

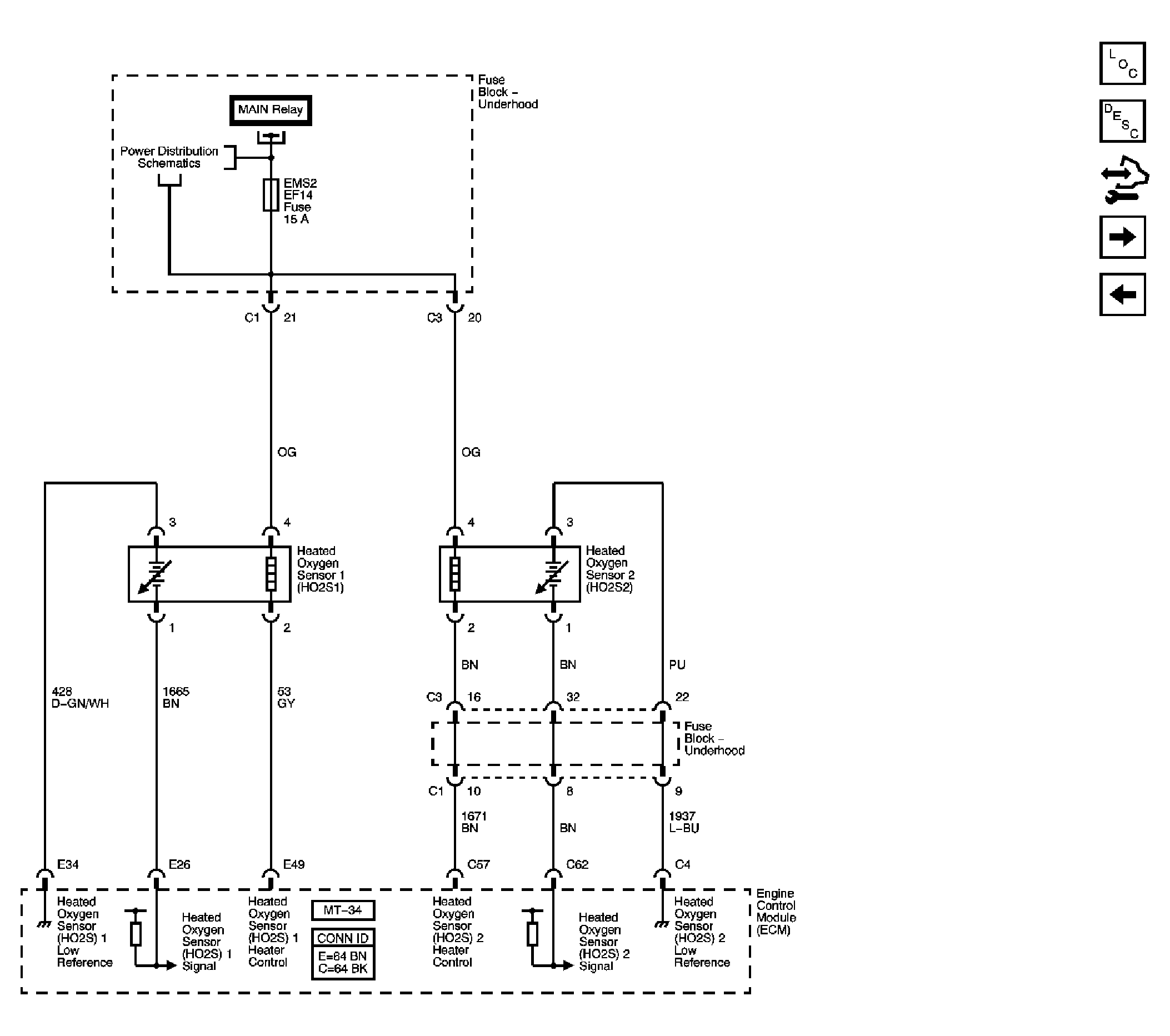

Fig 5: Heated Oxygen Sensors (HO2S)

Courtesy of GENERAL MOTORS CORP.

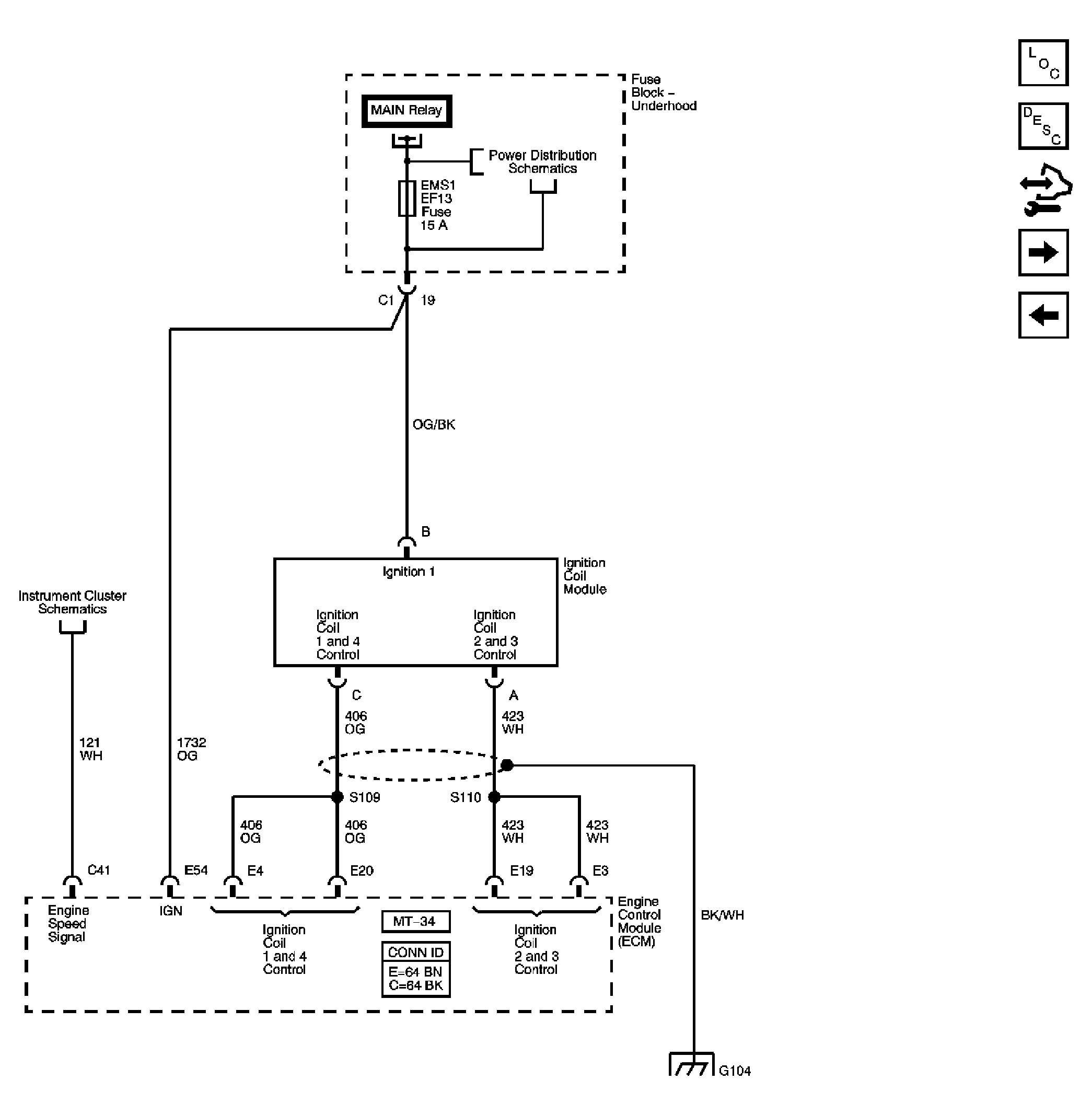

Fig 6: Ignition Coil Module

Courtesy of GENERAL MOTORS CORP.

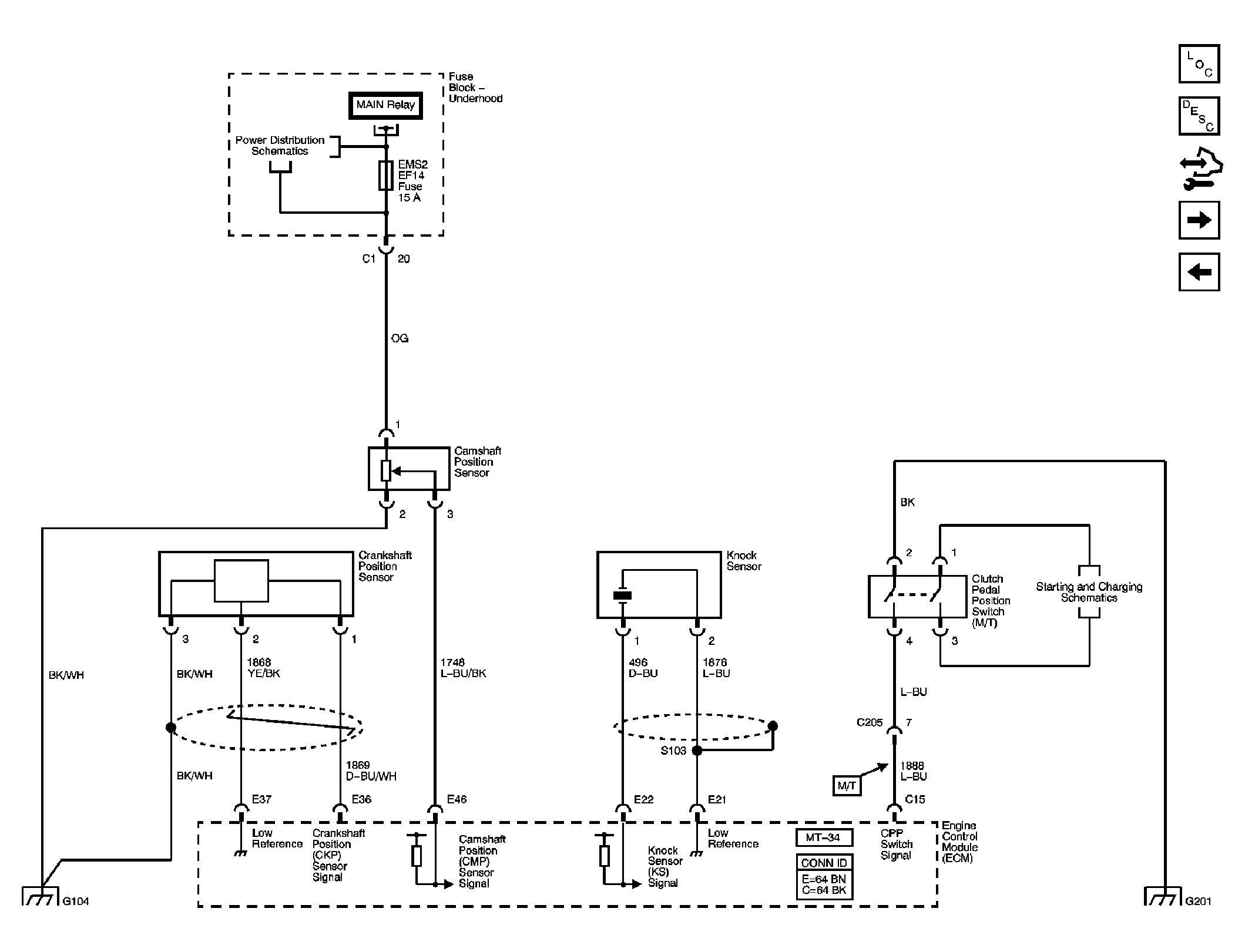

Fig 7: CKP, CMP, Knock Sensors, Clutch Pedal Position Switch

Courtesy of GENERAL MOTORS CORP.

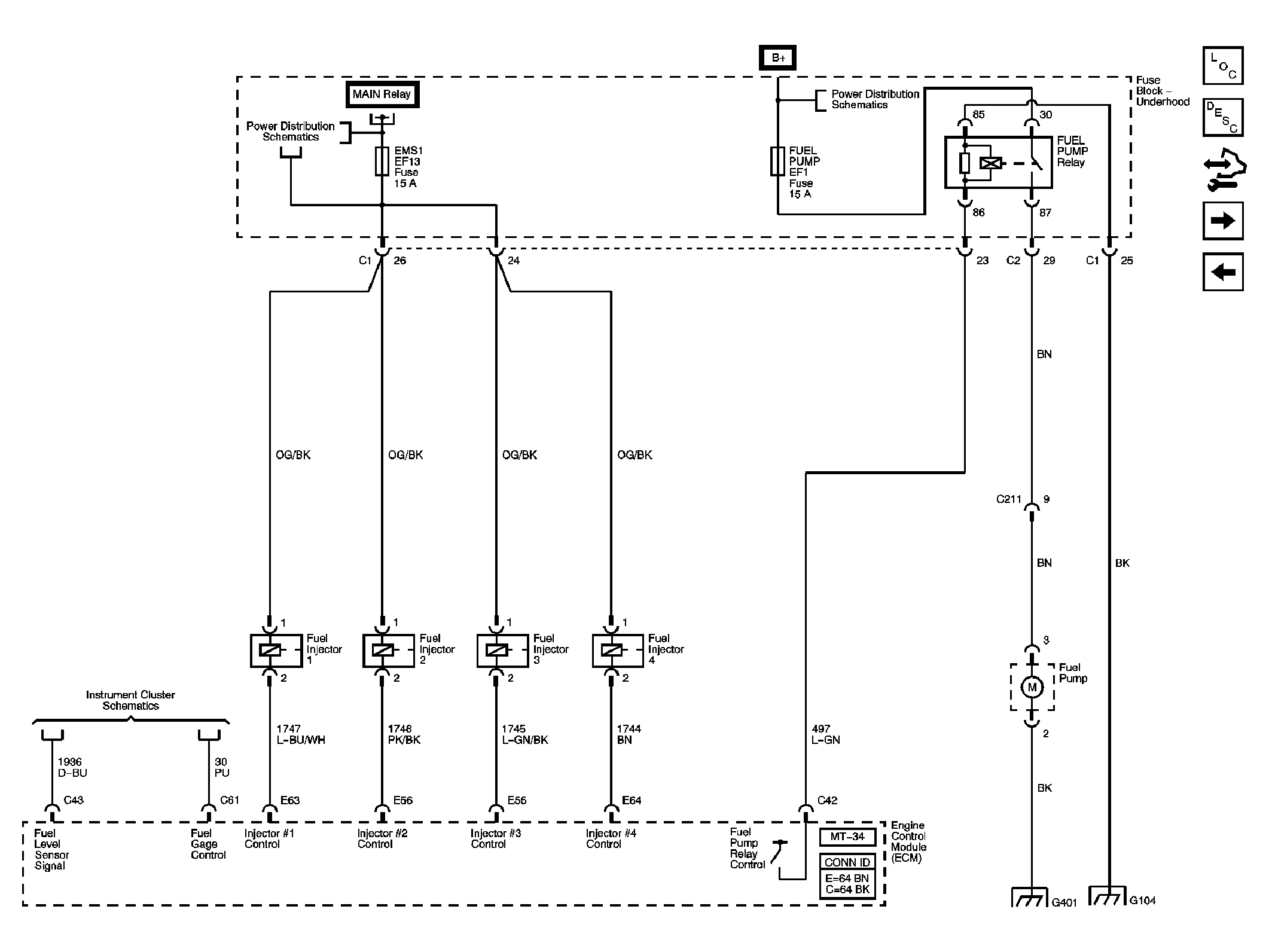

Fig 8: Fuel Pump and Injectors

Courtesy of GENERAL MOTORS CORP.

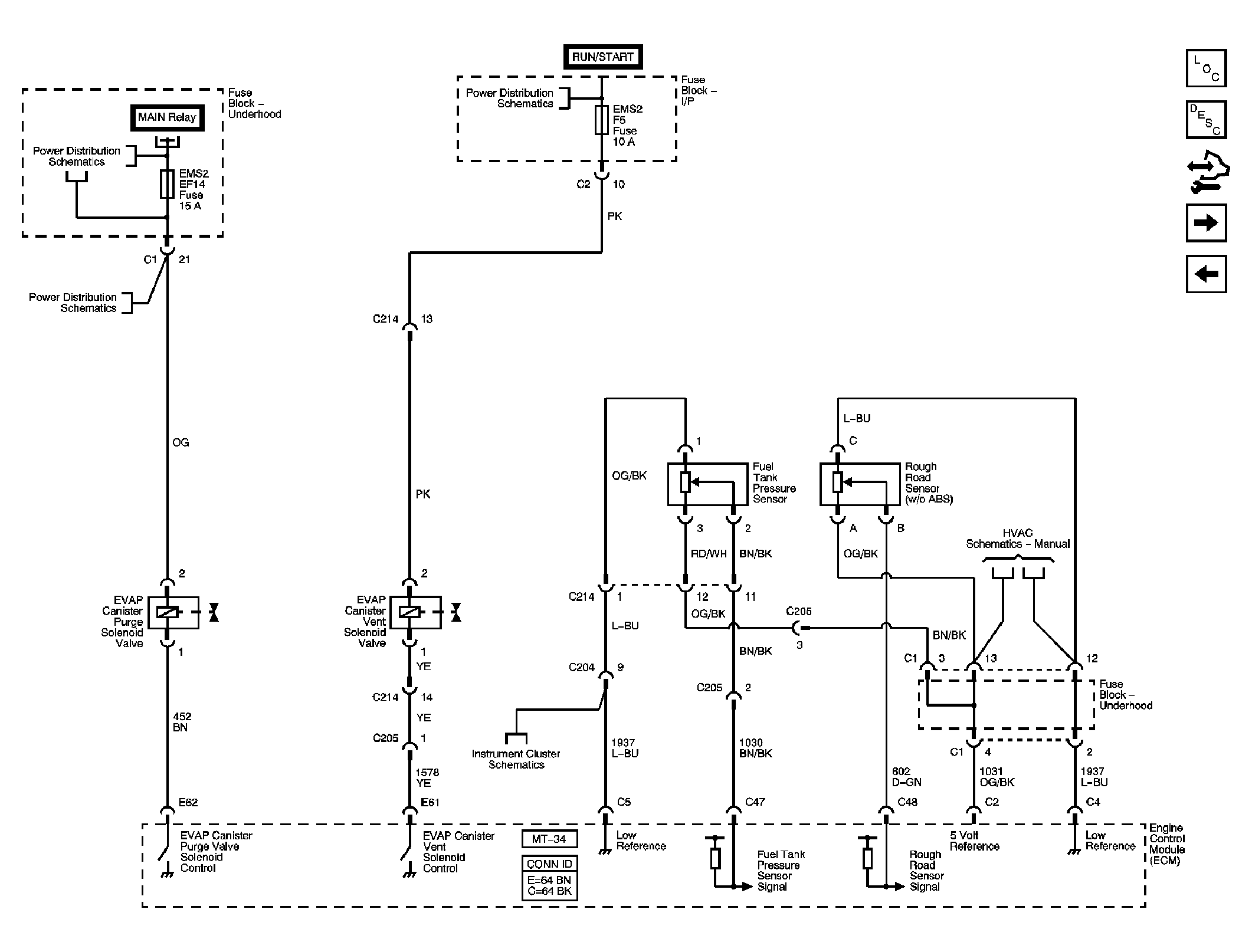

Fig 9: EVAP Valves, FTP, Rough Road, A/C Refrigerant Pressure Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 10: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
