Engine Controls Schematics (Hatchback)

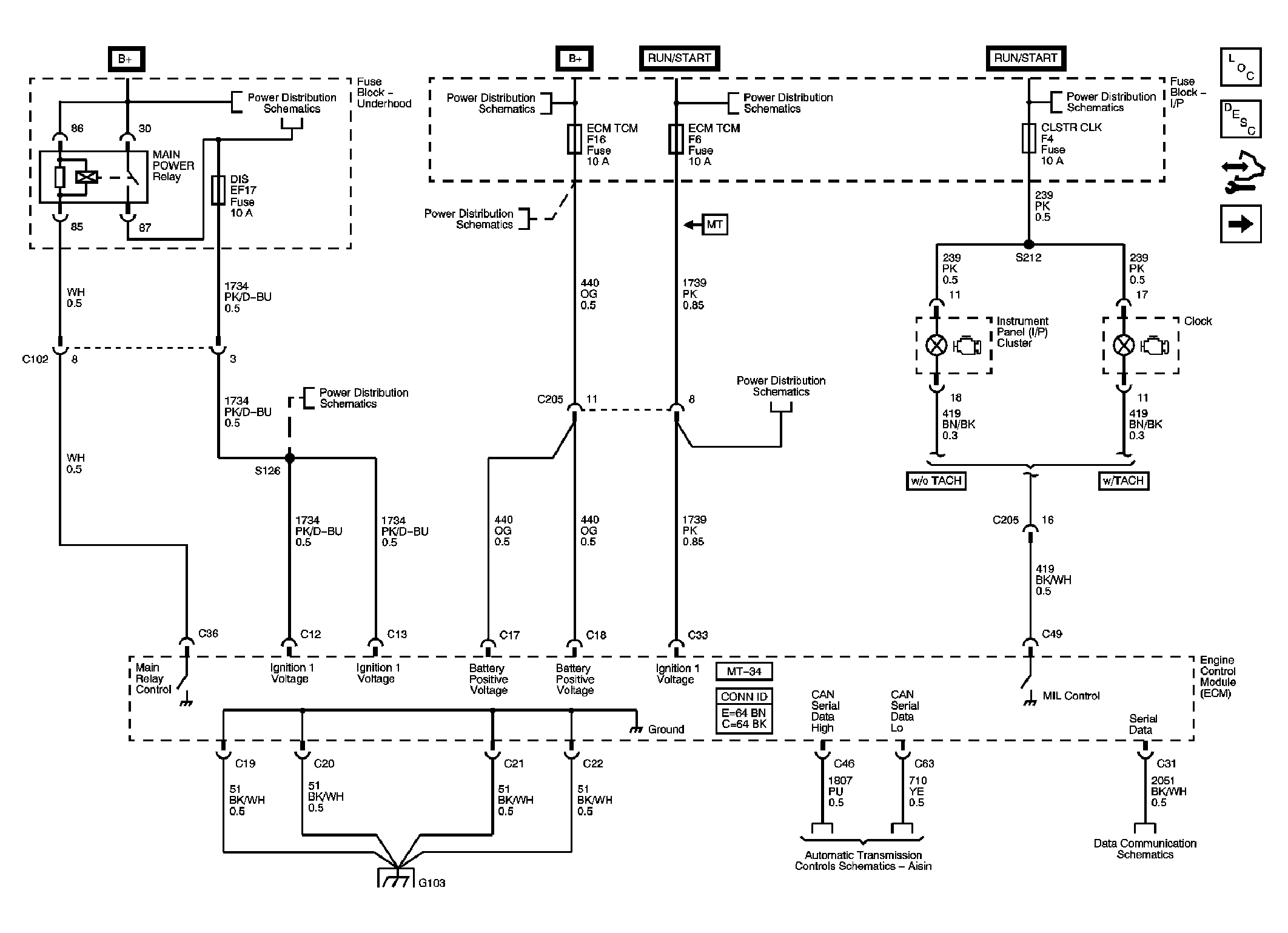

Fig 1: Power, Ground and MIL
GM1902441Courtesy of GENERAL MOTORS CORP.
Fig 2: Engine Controls Data Sensors
GM1680155Courtesy of GENERAL MOTORS CORP.

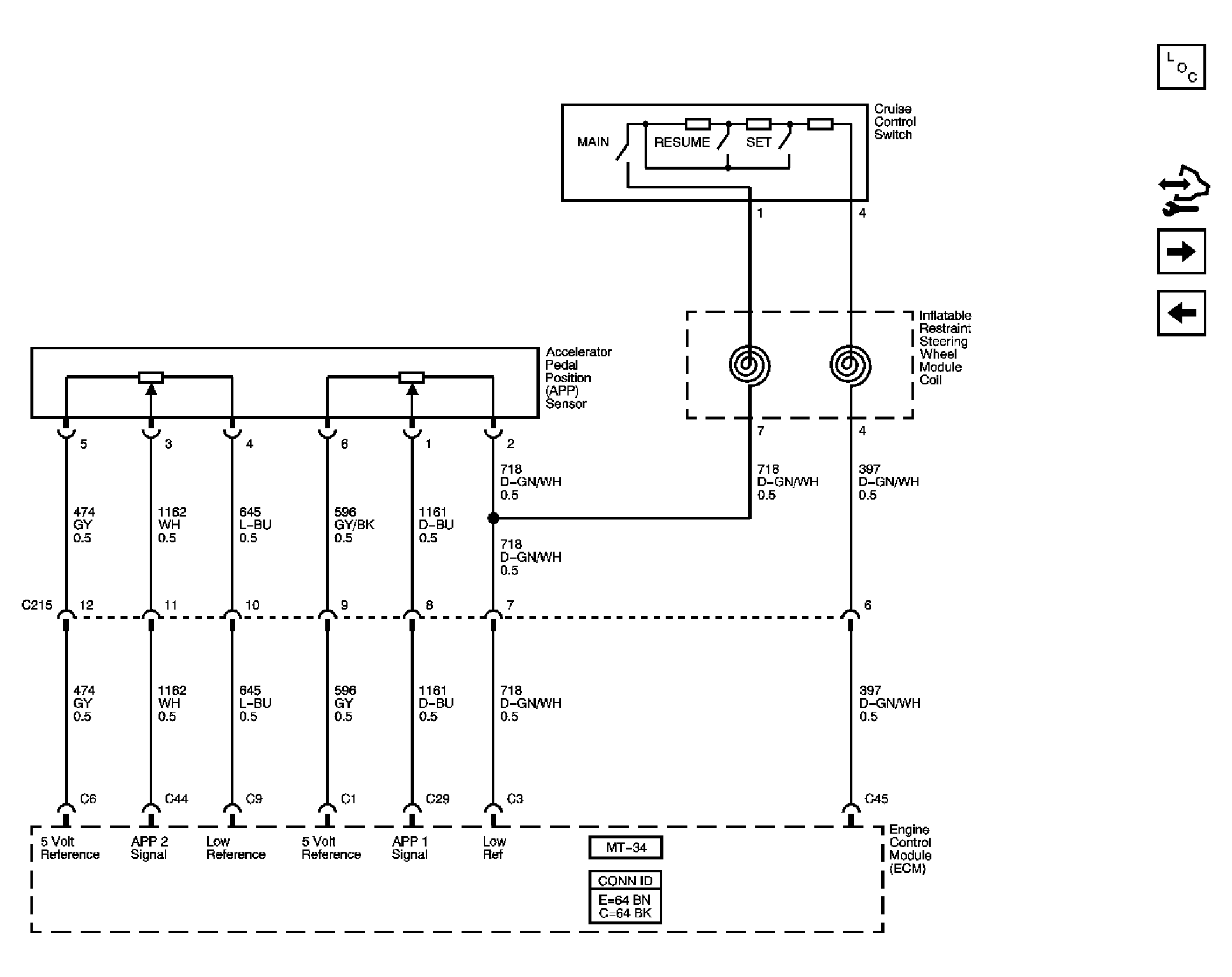

Fig 3: Accelerator Pedal Position (APP) Sensor
GM1808646Courtesy of GENERAL MOTORS CORP.
Fig 4: Engine Controls Electronic Throttle Control
GM1680160Courtesy of GENERAL MOTORS CORP.

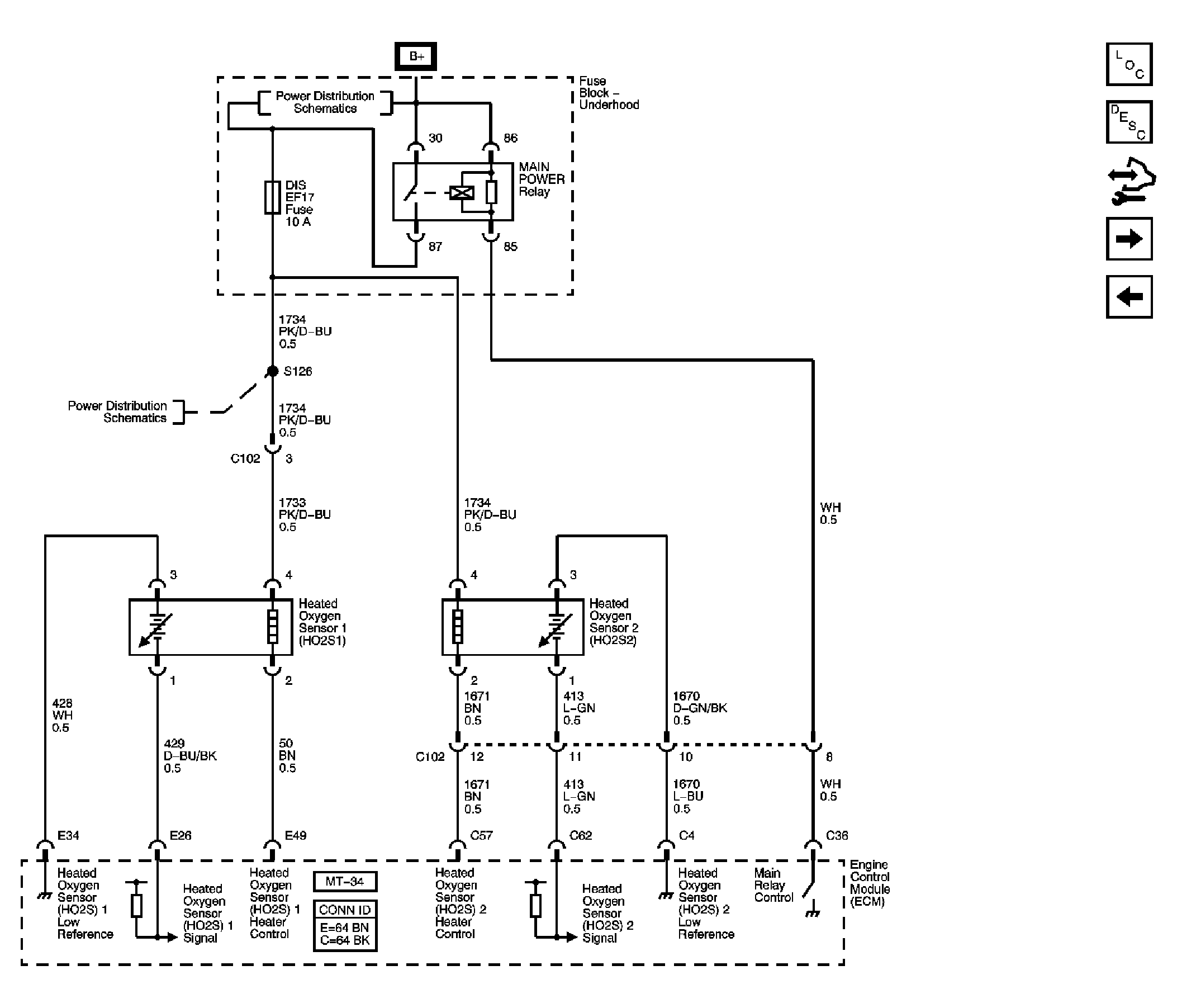

Fig 5: Oxygen Sensors
GM1902444Courtesy of GENERAL MOTORS CORP.
Fig 6: Engine Controls Ignition System
GM1680228Courtesy of GENERAL MOTORS CORP.
Fig 7: Engine Controls Ignition Sensors
GM1680234Courtesy of GENERAL MOTORS CORP.
Fig 8: Engine Controls Fuel Injectors
GM1680238Courtesy of GENERAL MOTORS CORP.
Fig 9: Engine Controls EVAP Controls
GM1680241Courtesy of GENERAL MOTORS CORP.
Fig 10: Engine Controls Intake, Exhaust Valves
GM1680246Courtesy of GENERAL MOTORS CORP.
Fig 11: Engine Controls Subsystem References
GM1680249Courtesy of GENERAL MOTORS CORP.
