Installation Procedure

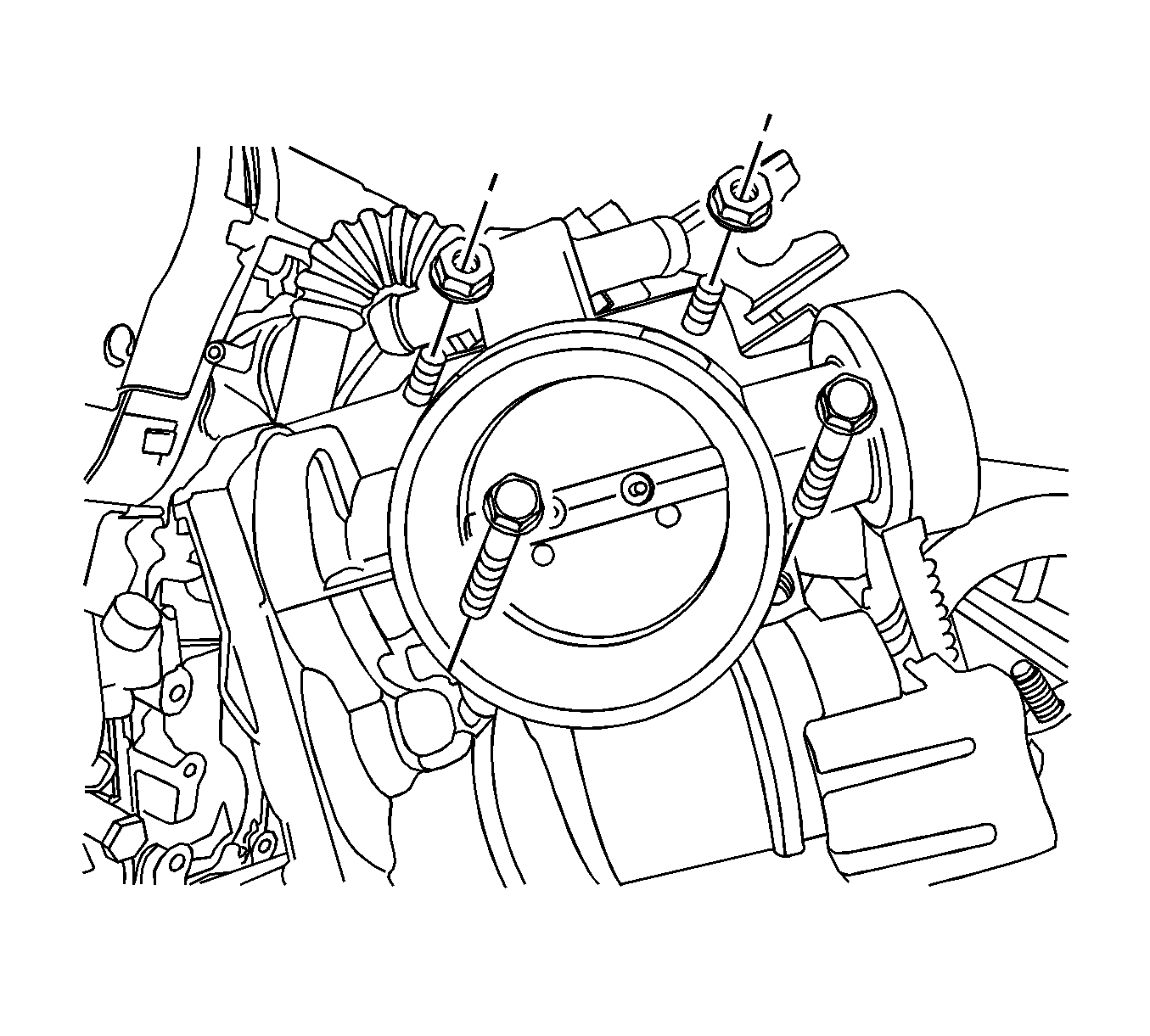

    Fig 1: Throttle Body Retaining Bolts
    GM1917304Courtesy of GENERAL MOTORS CORP.
    NOTE: Use care when cleaning the old gasket from the aluminum surfaces in order to prevent damage to the sealing surfaces.
  1. Clean the gasket mating surface on the intake manifold.
    2. IMPORTANT: If the electronic throttle control valve is removed from the throttle body, the throttle body may be cleaned in a cold immersion type cleaner. Do not clean the electronic throttle control valve with any type of solvent or cleaner.
  2. Clean the throttle body.
  3. Install the electronic throttle body assembly with a new gasket.
    4. NOTE: Refer to Fastener Notice .
  4. Install the electronic throttle body retaining nuts and bolts.

    Tighten:  Tighten the throttle body retaining bolts and nuts to 15 N.m (11 lb ft).

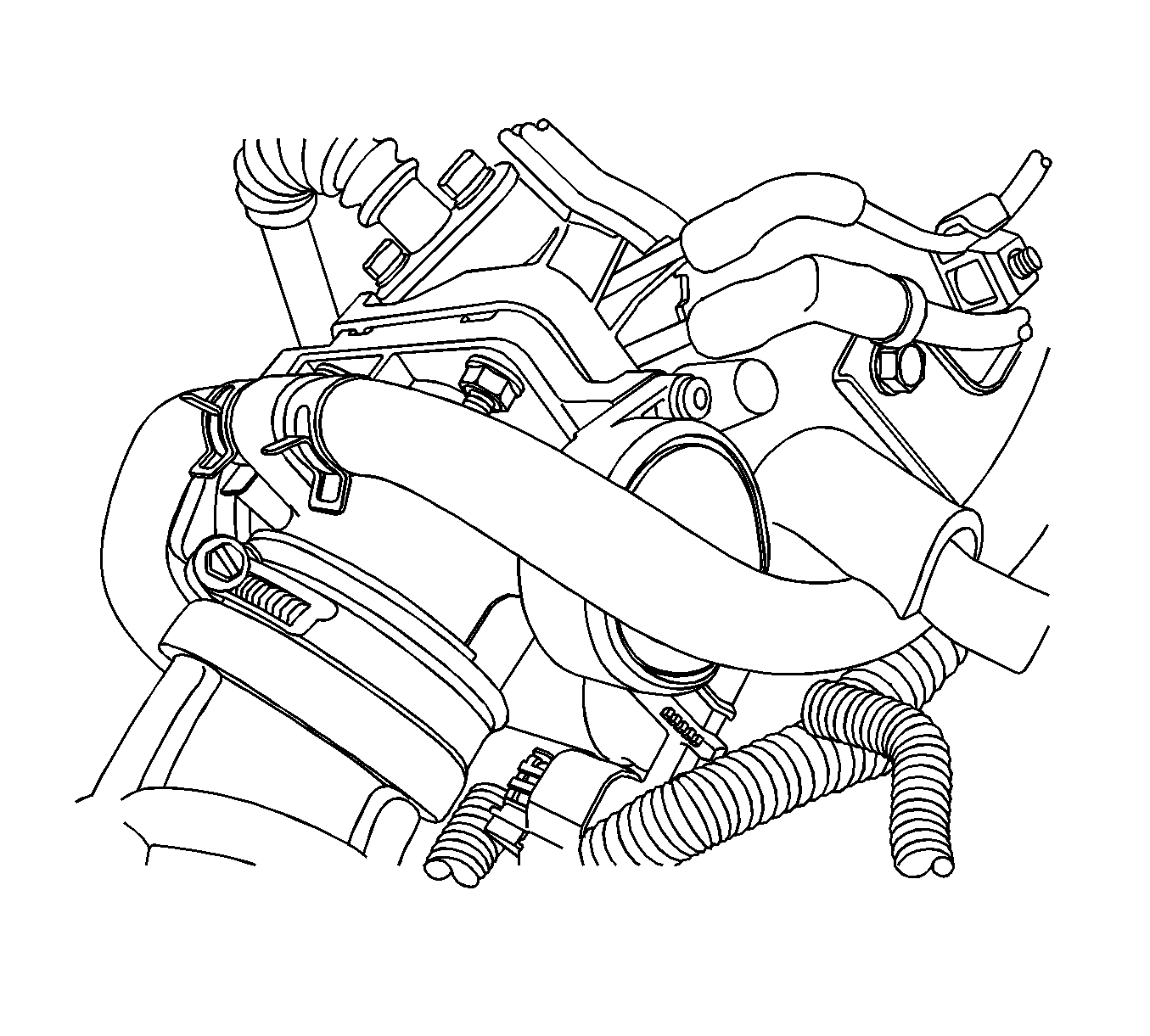

    5. Fig 2: Coolant Hoses At Throttle Body
    GM1917288Courtesy of GENERAL MOTORS CORP.
  5. Connect the electronic throttle body electrical connector.
  6. Install the throttle body coolant hoses.

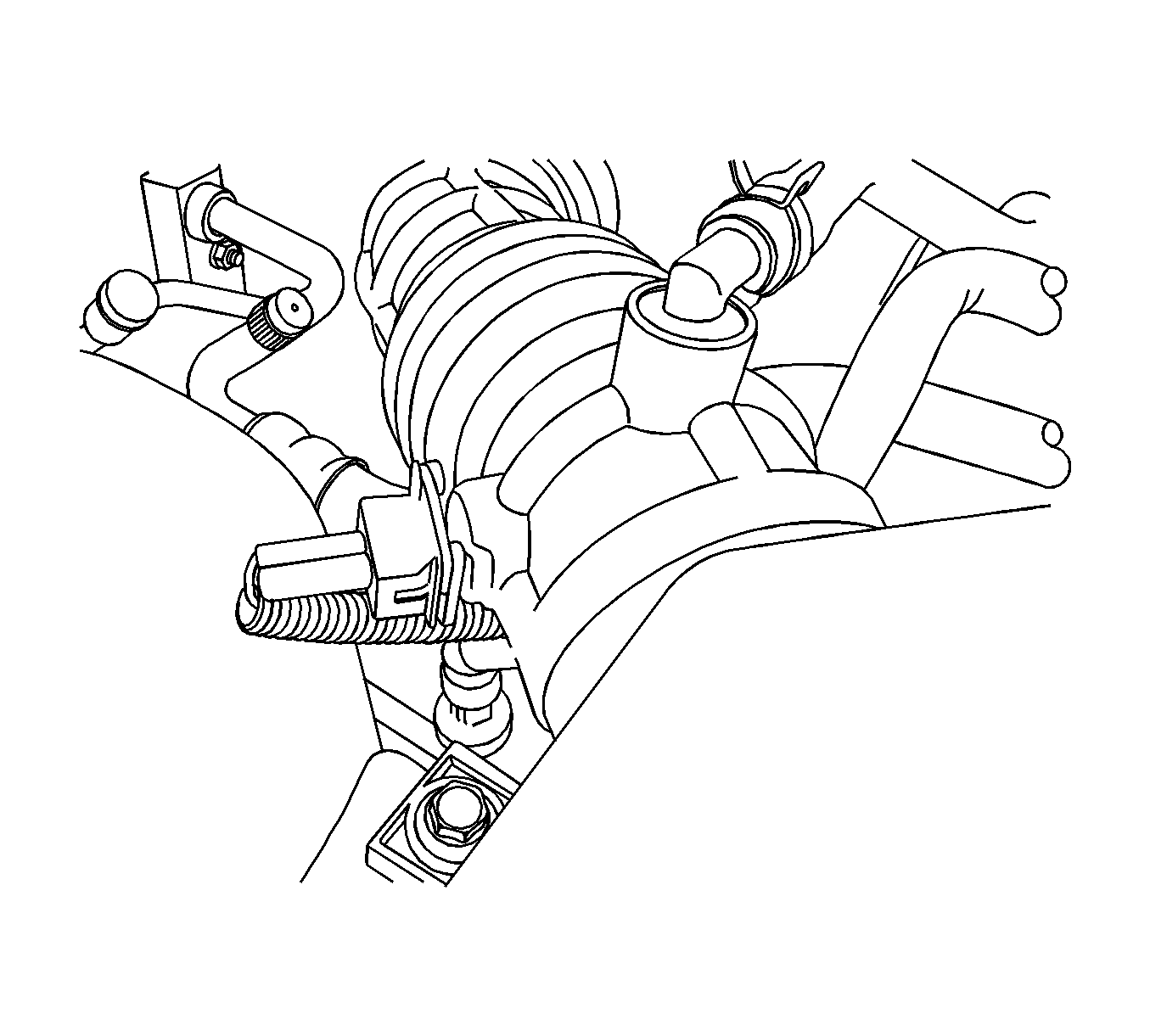

    7. Fig 3: Intake Air Temperature Sensor Connector
    GM1915906Courtesy of GENERAL MOTORS CORP.
  7. Install the air cleaner inlet duct to the throttle body.
  8. Connect the negative battery cable.
  9. Fill the cooling system.
