Removal Procedure

    CAUTION: Refer to Relieving Fuel Pressure Caution .
  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .

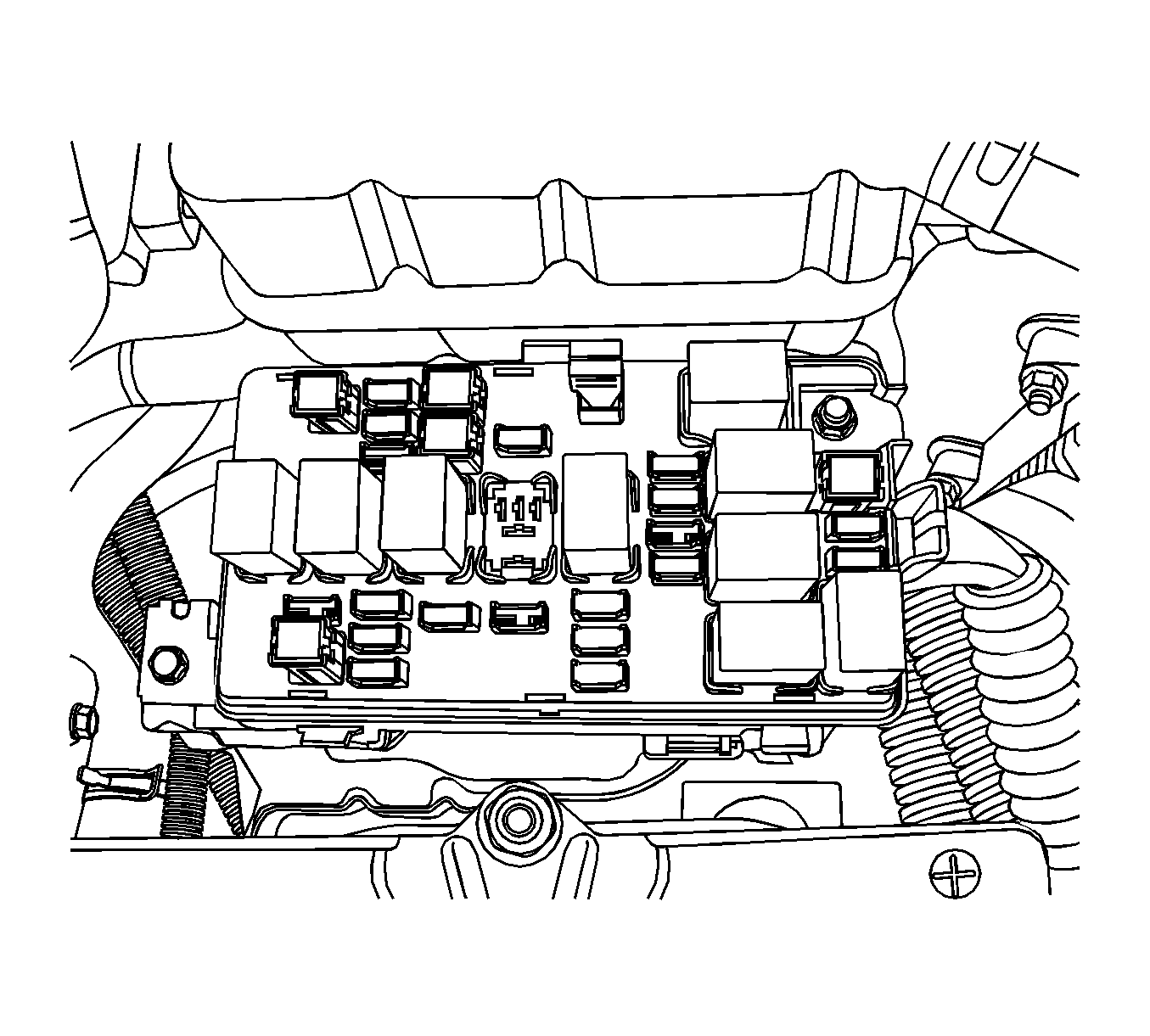

    2. Fig 1: Engine Fuse Box
    GM1917384Courtesy of GENERAL MOTORS CORP.
  2. Remove the fuel pump assembly. Refer to Fuel Pump Replacement .

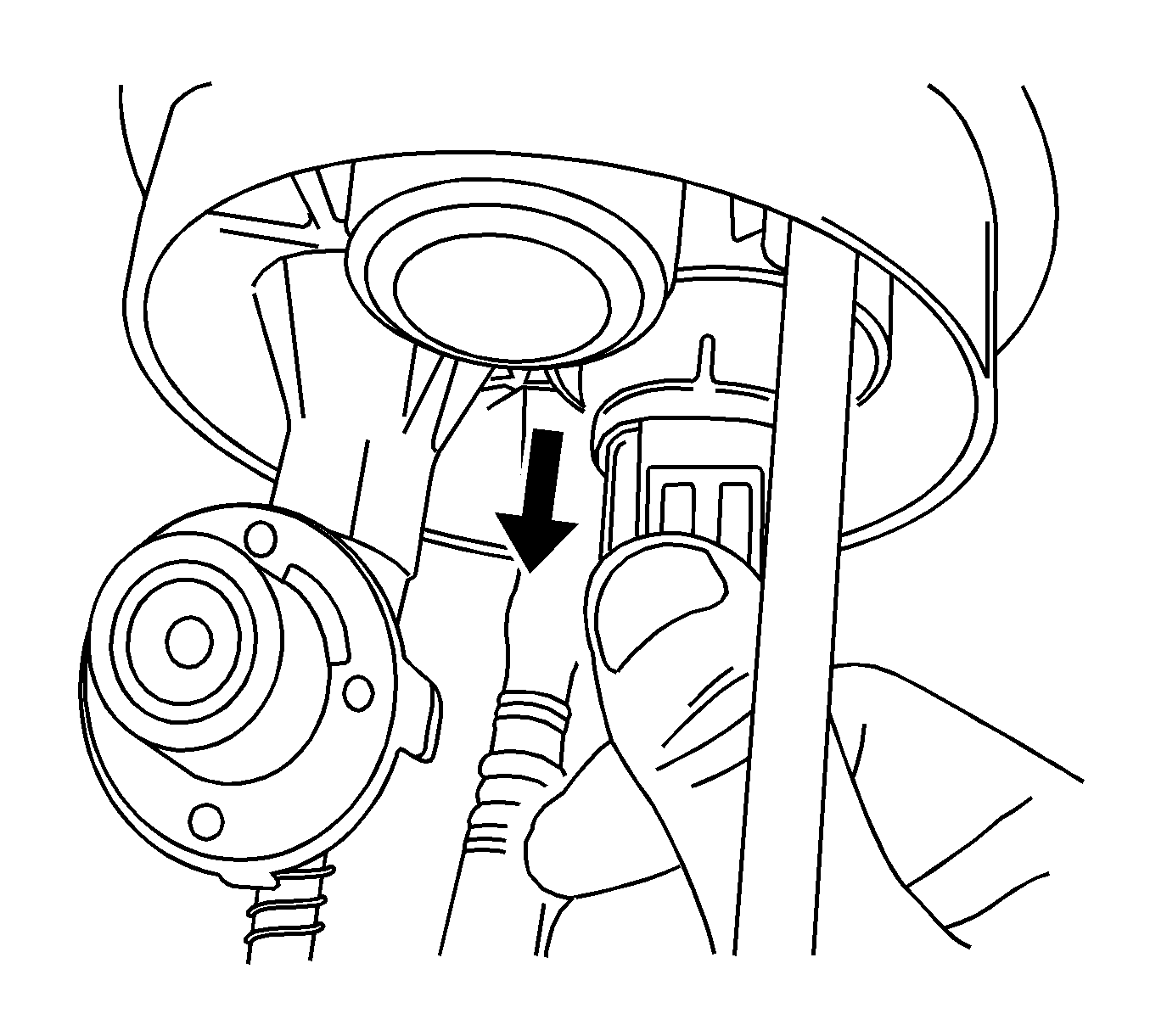

    3. Fig 2: Insulator Connector
    GM1919514Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the insulator connector

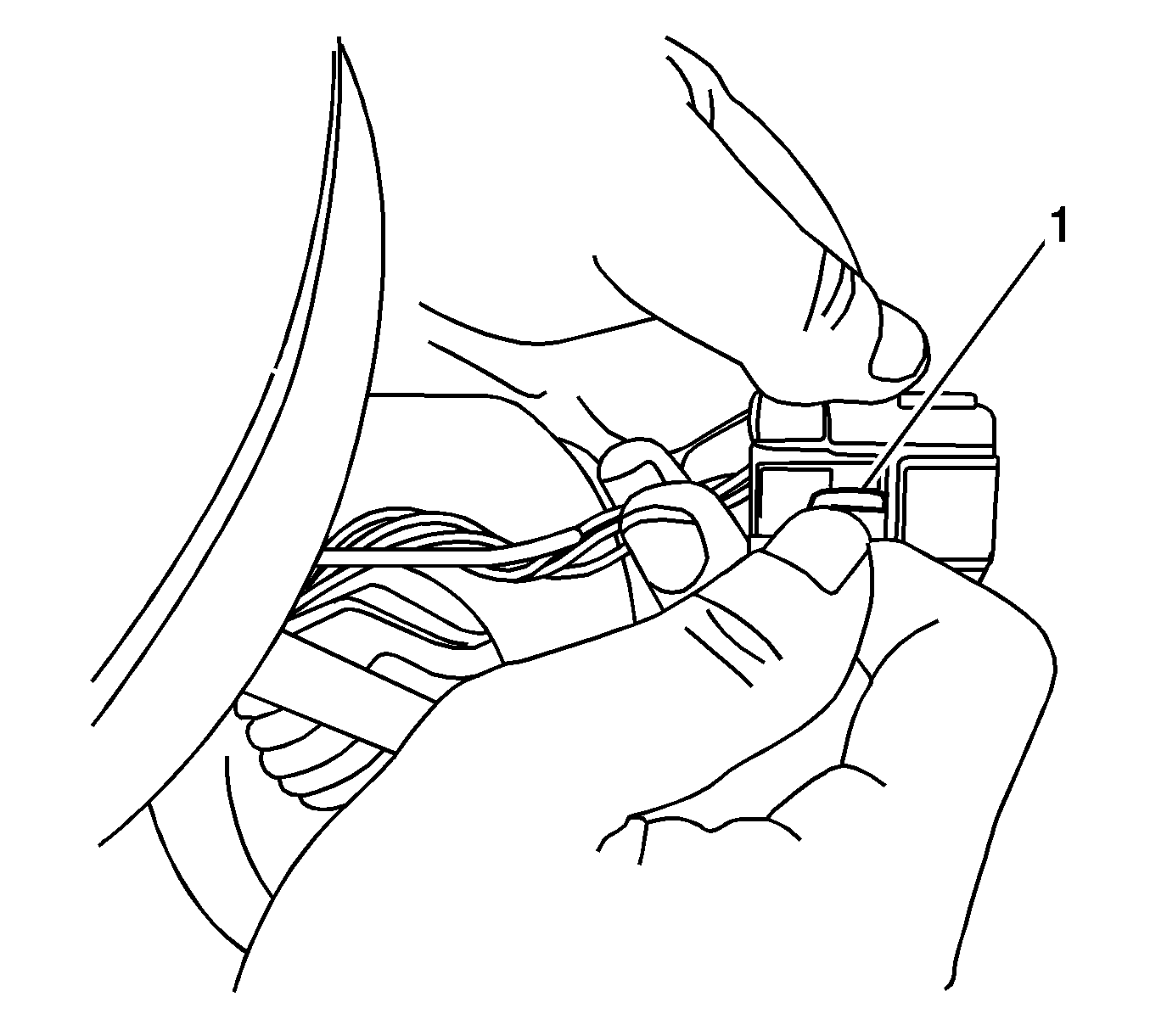

    4. Fig 3: Terminal Wedge
    GM1919594Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The wedge may be disconnected with severe force but can be reconnected.
  4. Push the terminal wedge (1) in the insulator connector
    5. Fig 4: Fuel Level Sensor & Sender Housing
    GM1919642Courtesy of GENERAL MOTORS CORP.
  5. Remove the fuel level sensor (1) from the sender housing (2).
  6. Remove the sender housing.

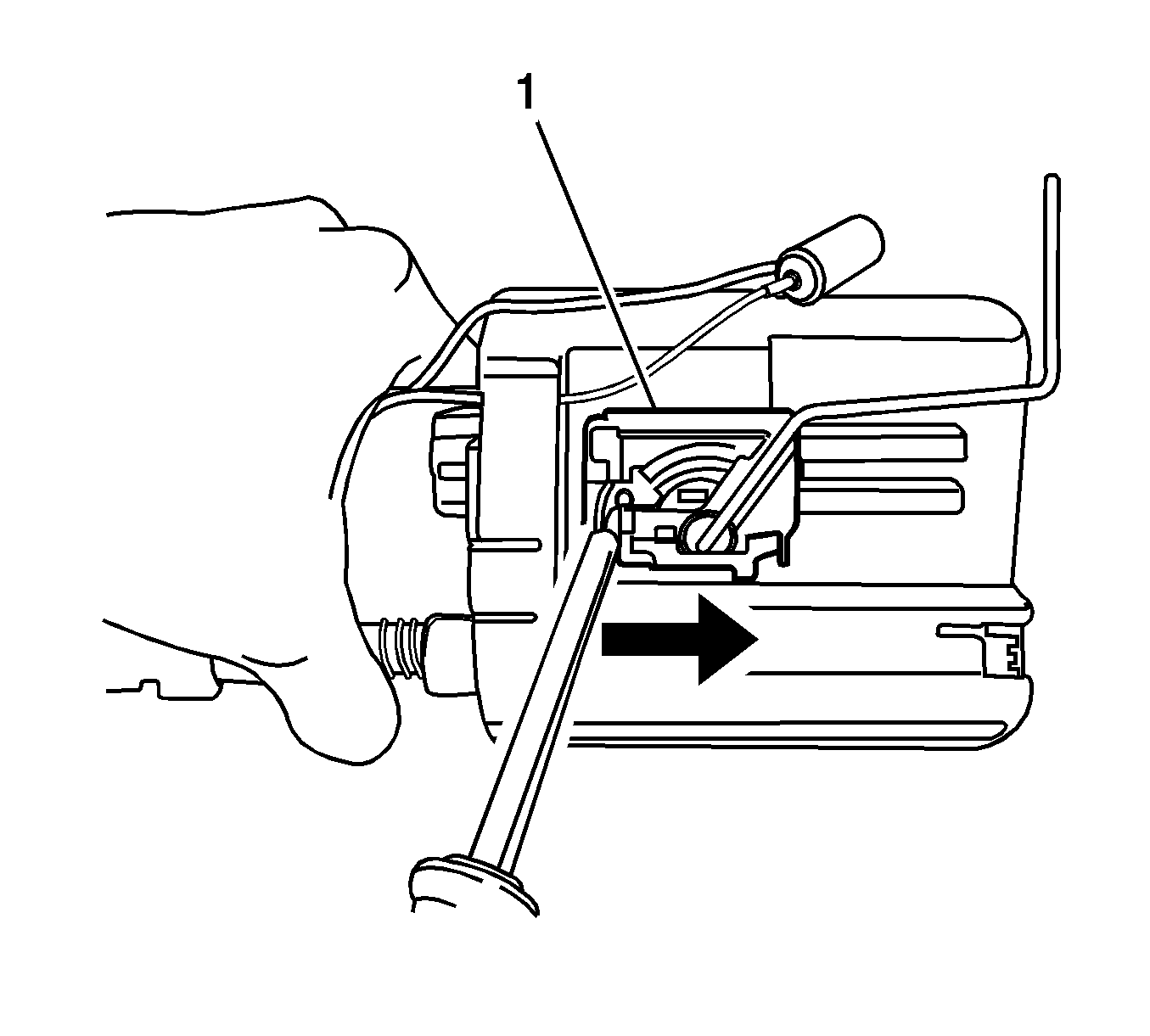

    7. Fig 5: Fuel Sender Assembly
    GM1919898Courtesy of GENERAL MOTORS CORP.
  7. Remove the fuel sender assembly (3).
