Installation Procedure

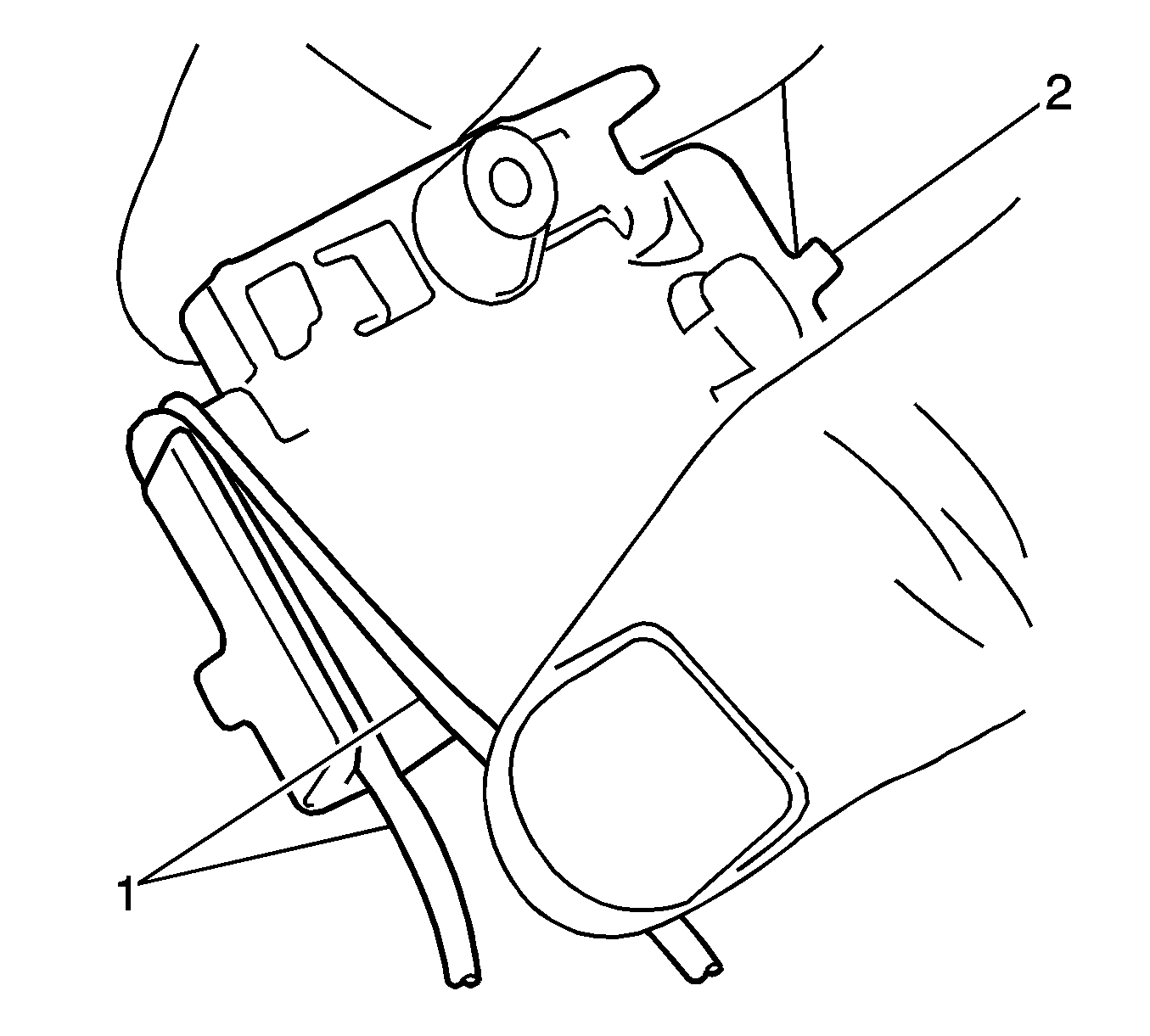

    Fig 1: Wire & Sender Assembly
    GM1919904Courtesy of GENERAL MOTORS CORP.
  1. Install the wires (1) into the sender assembly (2).
    2. Fig 2: Sender Assembly & Fuel Pump Assembly
    GM1919906Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the sender assembly and the fuel level sensor are installed properly. If not the fuel gauge and fuel level warning indicator will not function properly.
  2. Install the sender assembly onto the fuel pump assembly (1).
  3. Install the fuel level sensor onto the sender housing.
  4. Connect the wire into the insulator connector.

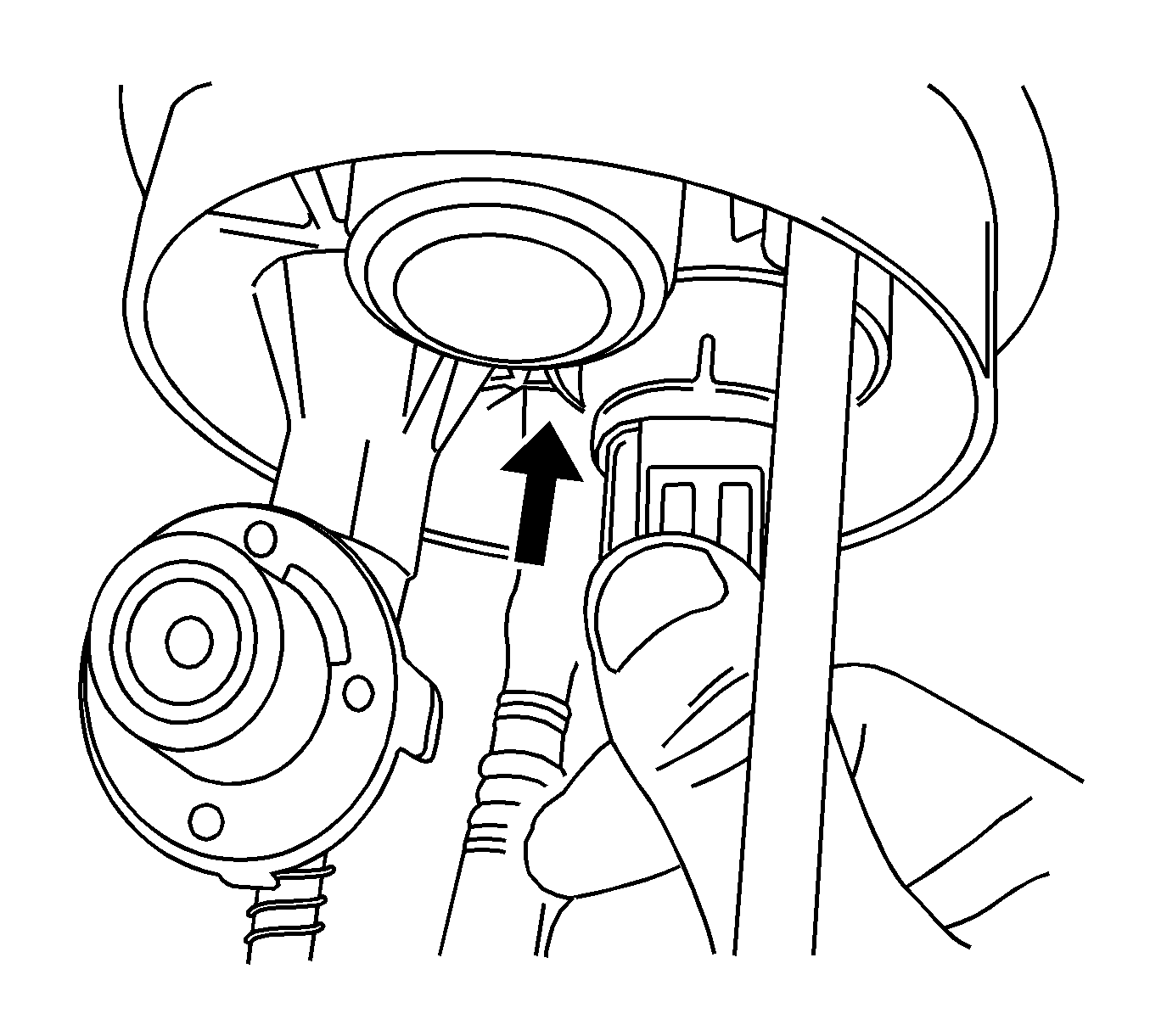

    5. Fig 3: Insulator Connector
    GM1919920Courtesy of GENERAL MOTORS CORP.
  5. Connect the insulator connector
  6. Install the fuel pump assembly into the fuel tank. Refer to Fuel Pump Replacement .
