1st Timing Chain and Chain Tensioner Components

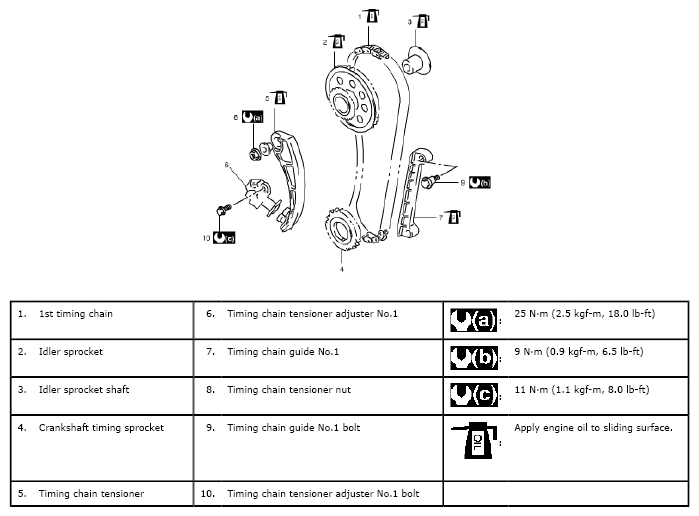

Fig 1: 1st Timing Chain & Chain Tensioner Replacement Components With Torque Specifications
G04846809Courtesy of SUZUKI OF AMERICA CORP.
