Radiator Cooling Fan Low Speed Control System Check: Wiring Diagram

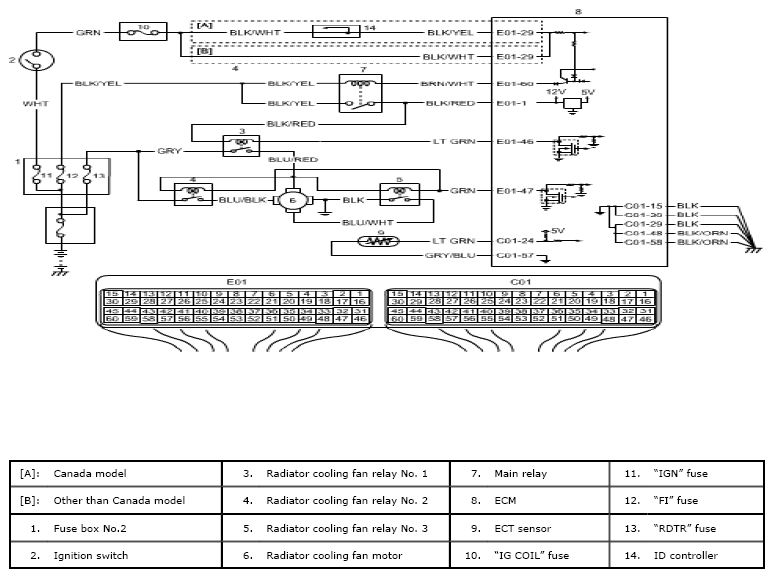

Fig 1: Radiator Cooling Fan Low Speed Control System - Circuit Diagram
G05471944Courtesy of SUZUKI OF AMERICA CORP.
