Resistance Check
- Remove ECM from its bracket referring to ENGINE CONTROL MODULE (ECM) REMOVAL AND INSTALLATION

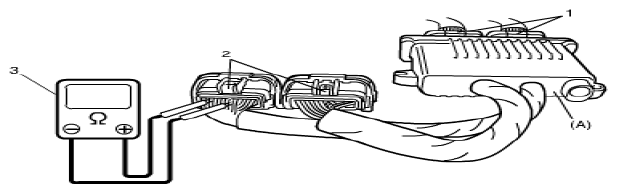

.CAUTION: Never touch terminals of ECM itself or connect voltmeter or ohmmeter (3).
- Connect special tool to ECM connectors (1) securely.NOTE: Do not connect the other connector of special tool to ECM.
Special Tool
(A): 09933-06320
- Check resistance between each pair of terminals of special tool connectors (2) as listed in the following table.
CAUTION:
- Be sure to connect ohmmeter probe from wire harness side of coupler.
- Be sure to turn OFF ignition switch for this check.
- Resistance in the following table represents that measured when parts temperature is 20 °C (68 °F).
RESISTANCE SPECIFIED CONDITION
| Terminals | Circuit | Standard resistance | Condition |
|---|---|---|---|
| E01-60 to E01-29 | Main relay | 160 - 240 Ω | Battery disconnected and ignition switch turned ON |
| E01-15 to E01-29 | Fuel pump relay | 160 - 240 Ω | - |
| C01-16 to E01-1/16 | No. 3 fuel injector | 10.8 - 18.2 Ω | - |
| C01-17 to E01-1/16 | No. 4 fuel injector | ||
| C01-13 to E01-1/16 | EVAP canister purge valve | 22 - 26 Ω | - |
| C01-2 to E01-1/16 | No. 2 fuel injector | 10.8 - 18.2 Ω | - |
| C01-1 to E01-1/16 | No. 1 fuel injector | 10.8 - 18.2 Ω | - |
| E01-50 to E01-1/16 | Throttle actuator control relay | 160 - 240 Ω | - |
