Fuel Pump and Its Circuit Check: Wiring Diagram

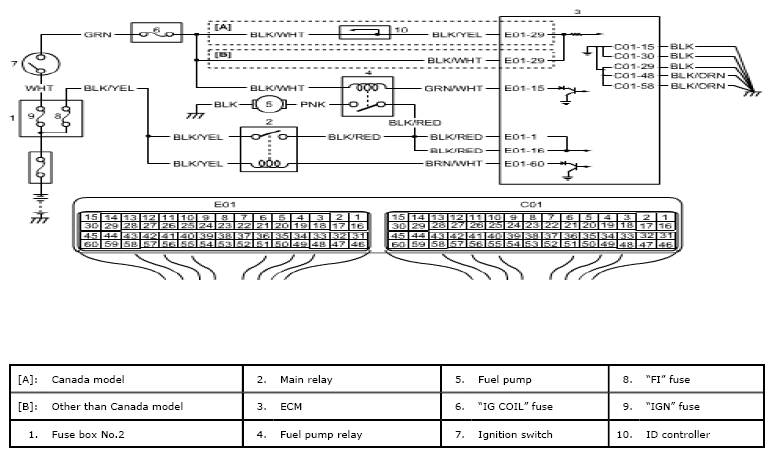

Fig 1: Fuel Pump Circuit Diagram

G05471938

Courtesy of SUZUKI OF AMERICA CORP.
