DTC P2122 / P2123: Throttle / Pedal Position Sensor / Switch "D" Circuit Low / High: Wiring Diagram

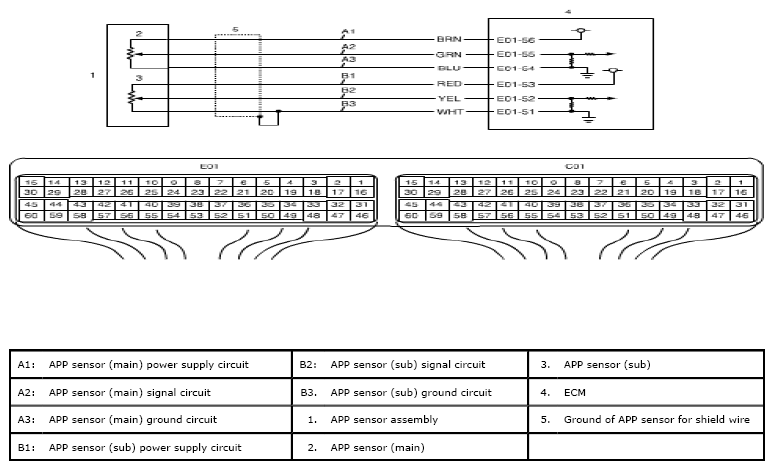

Fig 1: Throttle / Pedal Position Sensor / Switch - Circuit Diagram
G05471901Courtesy of SUZUKI OF AMERICA CORP.
