DTC P1116: Engine Coolant Temperature Circuit Performance at Engine Soaking: Wiring Diagram

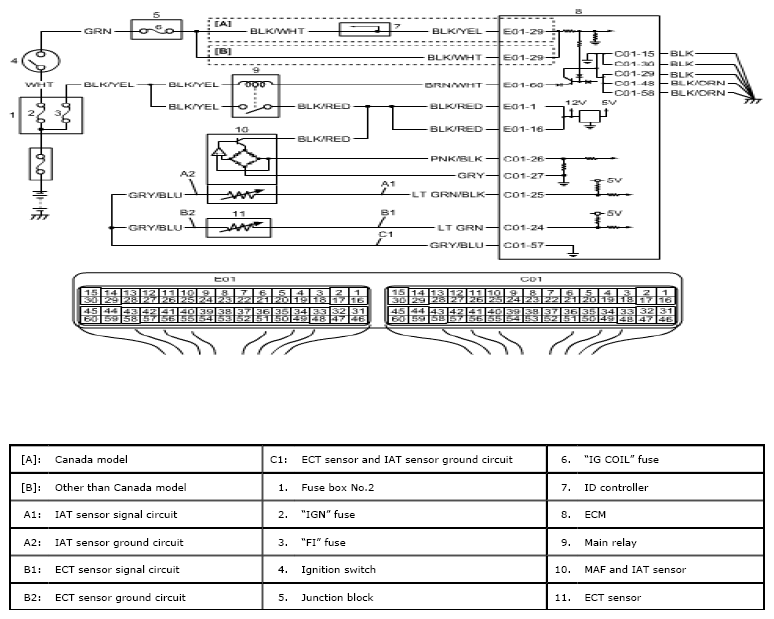

Fig 1: Engine Coolant Temperature - Circuit Diagram
G05471899Courtesy of SUZUKI OF AMERICA CORP.
