DTC P0660 / P0662: Intake Manifold Tuning Valve Control Circuit Open / High: Wiring Diagram

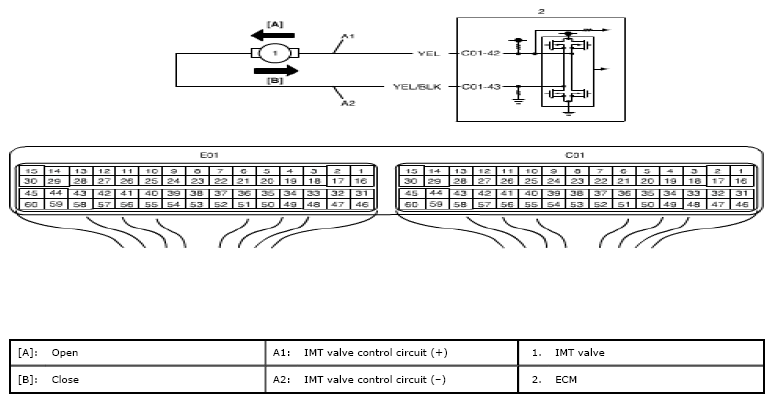

Fig 1: Intake Manifold Tuning Valve Control - Circuit Diagram
G05471898Courtesy of SUZUKI OF AMERICA CORP.
