DTC P0500: Vehicle Speed Sensor "A": Wiring Diagram

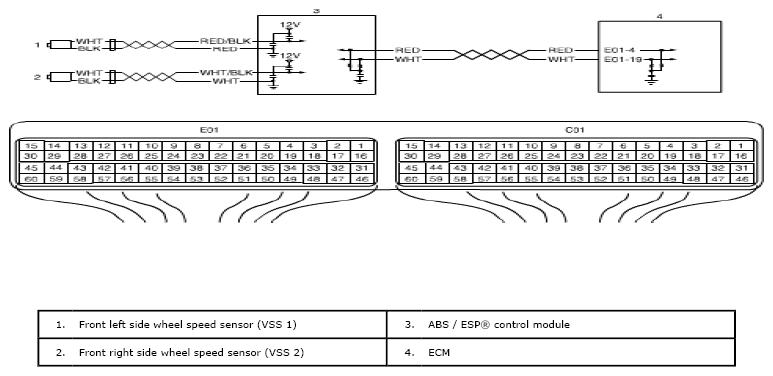

Fig 1: Vehicle Speed Sensor - Wiring Diagram

G05471894

Courtesy of SUZUKI OF AMERICA CORP.
