DTC P0480: Fan 1 Control Circuit: Wiring Diagram

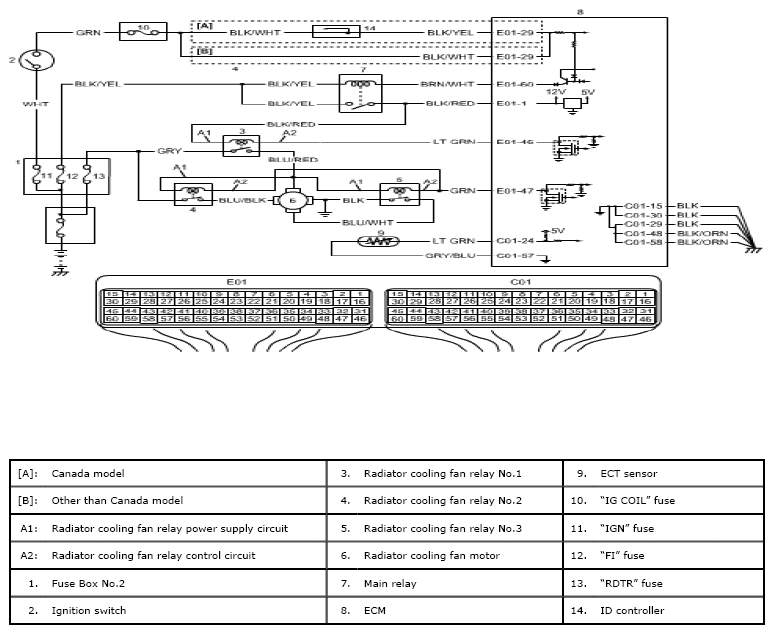

Fig 1: Fan 1 Control - Circuit Diagram
G05471889Courtesy of SUZUKI OF AMERICA CORP.
