DTC P0122 / P0123: Throttle / Pedal Position Sensor / Switch "A" Circuit Low / High: Wiring Diagram

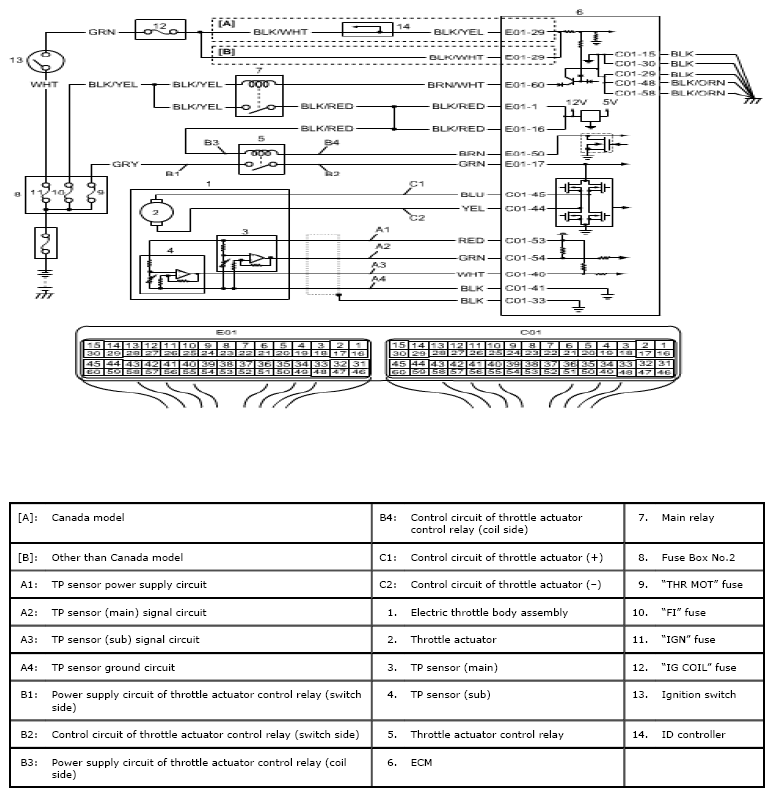

Fig 1: Throttle / Pedal Position Sensor - Circuit Diagram
G05471880Courtesy of SUZUKI OF AMERICA CORP.
