DTC P0030: HO2S Heater Control Circuit (Sensor-1, Bank-1): Wiring Diagram

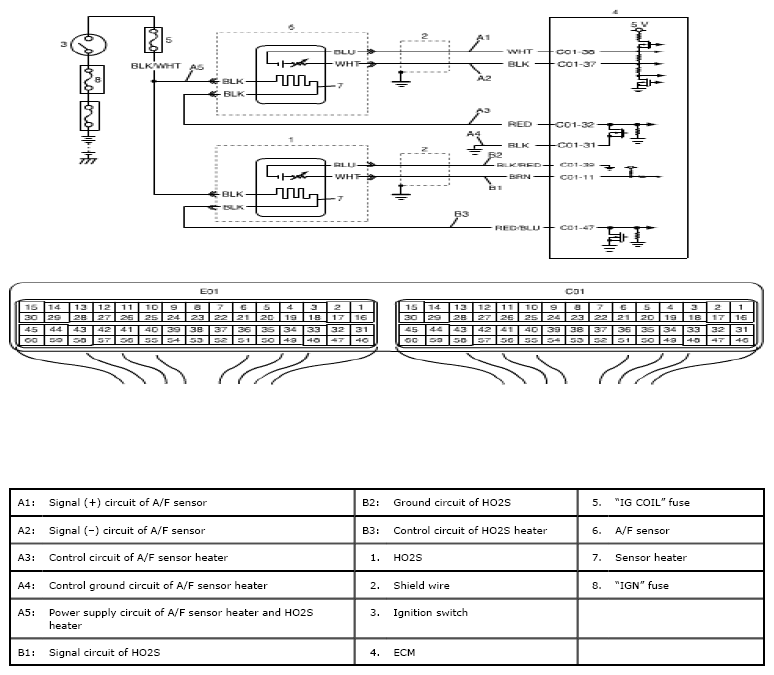

Fig 1: HO2S Heater Control - Wiring Diagram
G05471875Courtesy of SUZUKI OF AMERICA CORP.
