A/C Condenser Cooling Fan Control System Inspection: Wiring Diagram

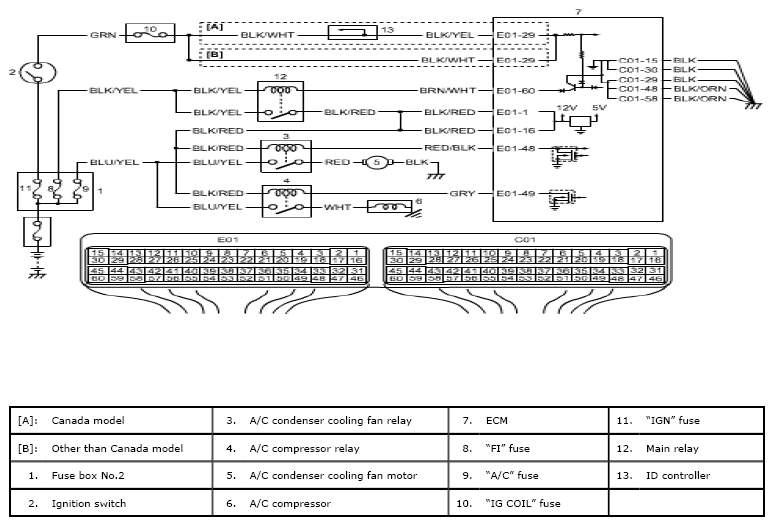

Fig 1: A/C Condenser Cooling Fan Control - Circuit Diagram
G05471941Courtesy of SUZUKI OF AMERICA CORP.
