Blower Speed Selector Inspection

Blower Speed Selector Inspection




Reference: HVAC Control Unit Removal and Installation

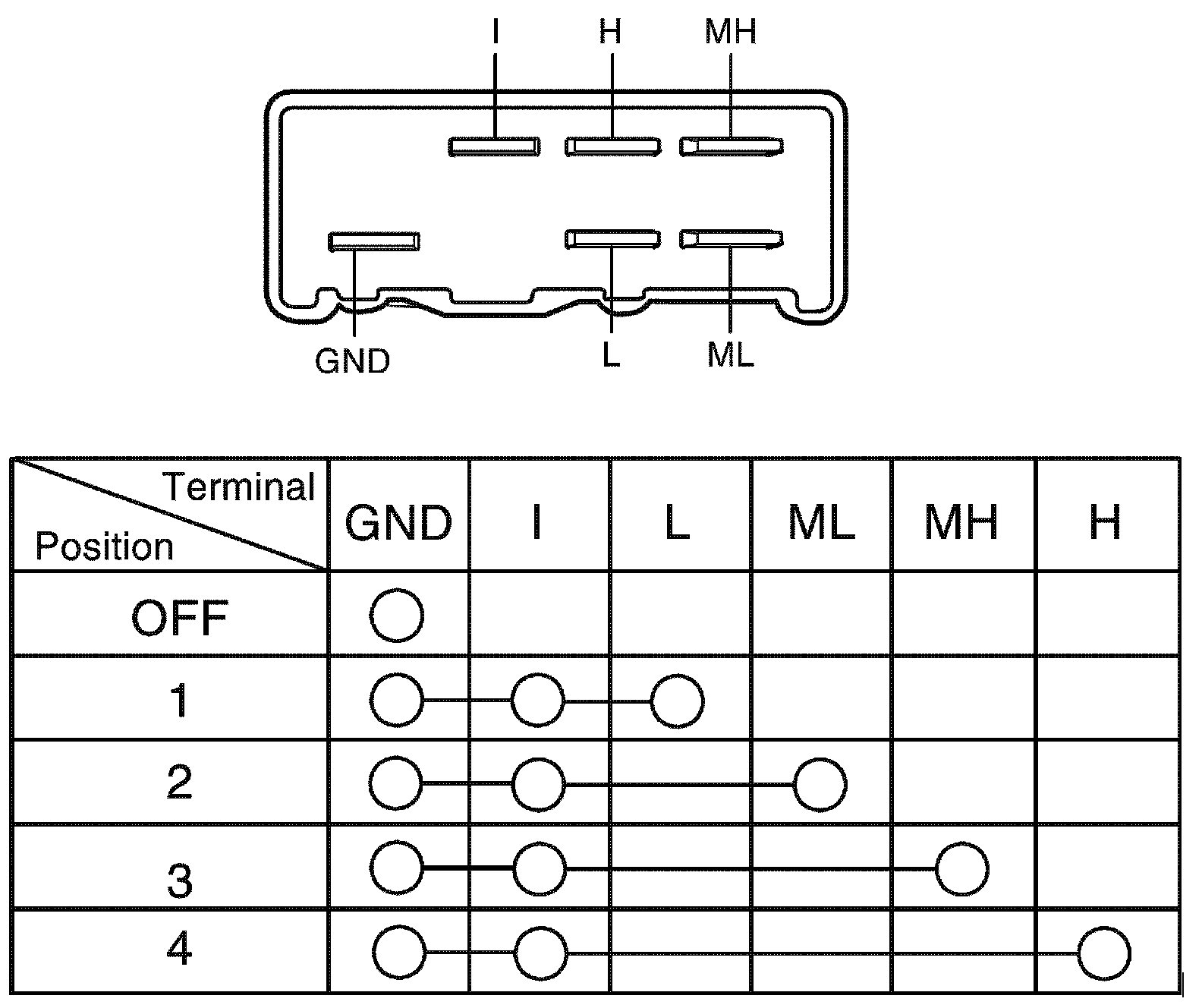

Check blower speed selector for each terminal to terminal continuity. If check result does not meet the following conditions, replace HVAC control unit.
