Tire Pressure Monitoring System

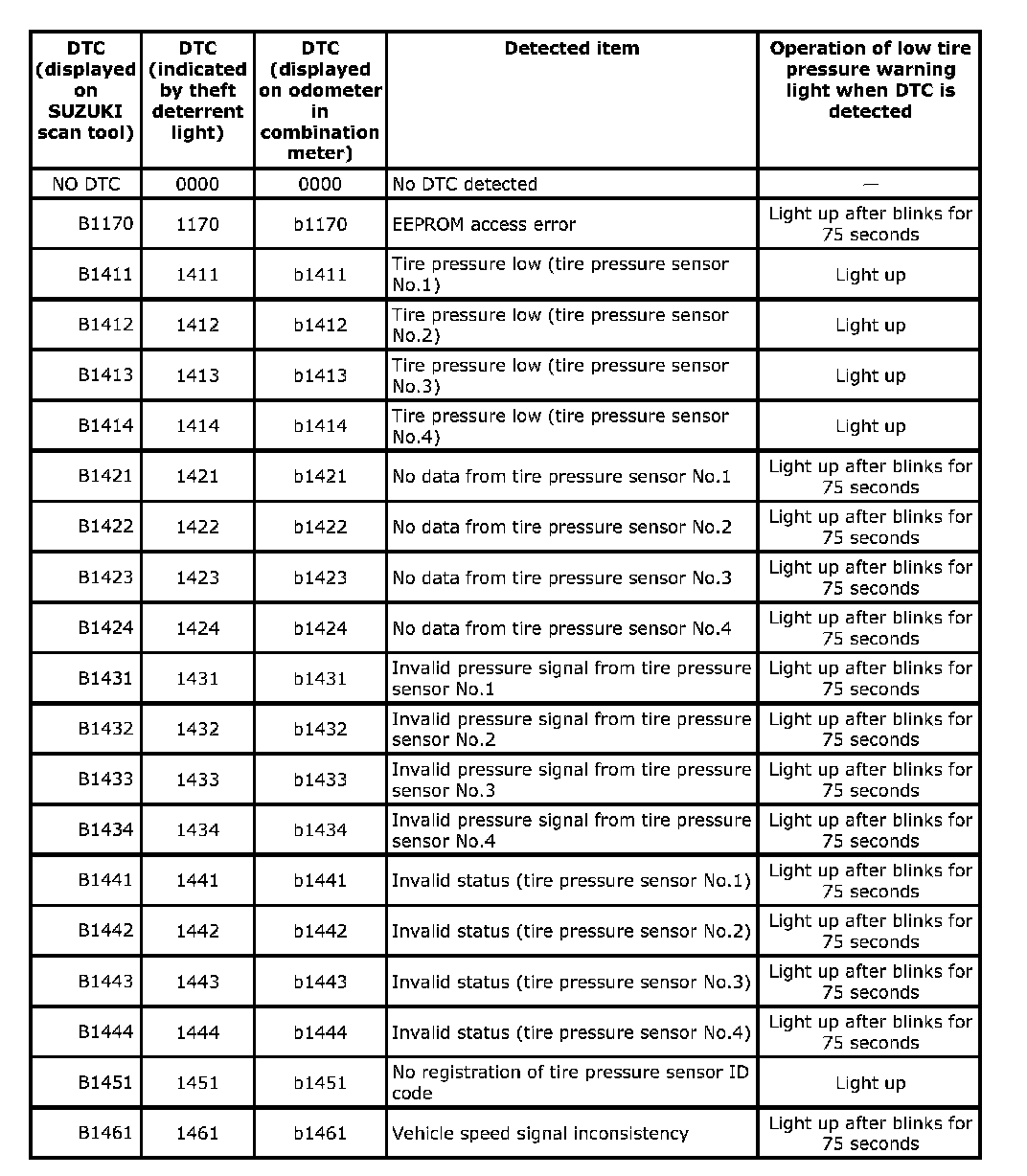

DTC Table

CAUTION: Be sure to follow TPMS Check for DTC diagnosis, noting Precautions in Diagnosing Troubles.

B1170-B1461:

NOTE: Each tire pressure sensor is numbered and that number is assigned in the order as its ID code is registered in BCM. It does not indicate the tire position (LF, RF, LR and RR). Check what number of the tire pressure sensor is assigned to which tire, referring to How to Identify Tire Pressure Sensor Number.
