Immobilizer Control System

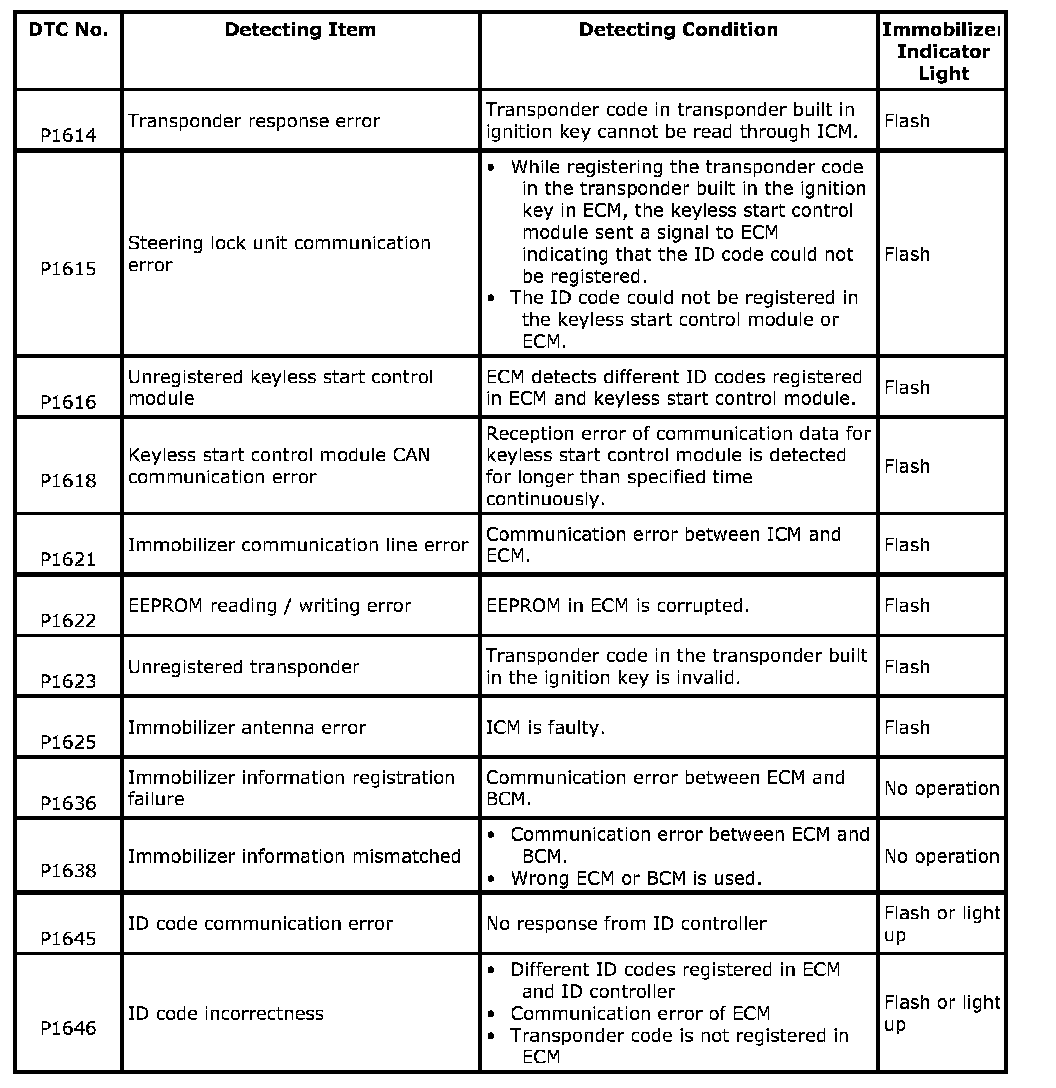

DTC Table

ECM

NOTE: ECM detects DTC. ICM does not.

P1614-P1646:





NOTE: If any DTC other than the above DTCs is detected, refer to DTC Table.
