For Notchback Model

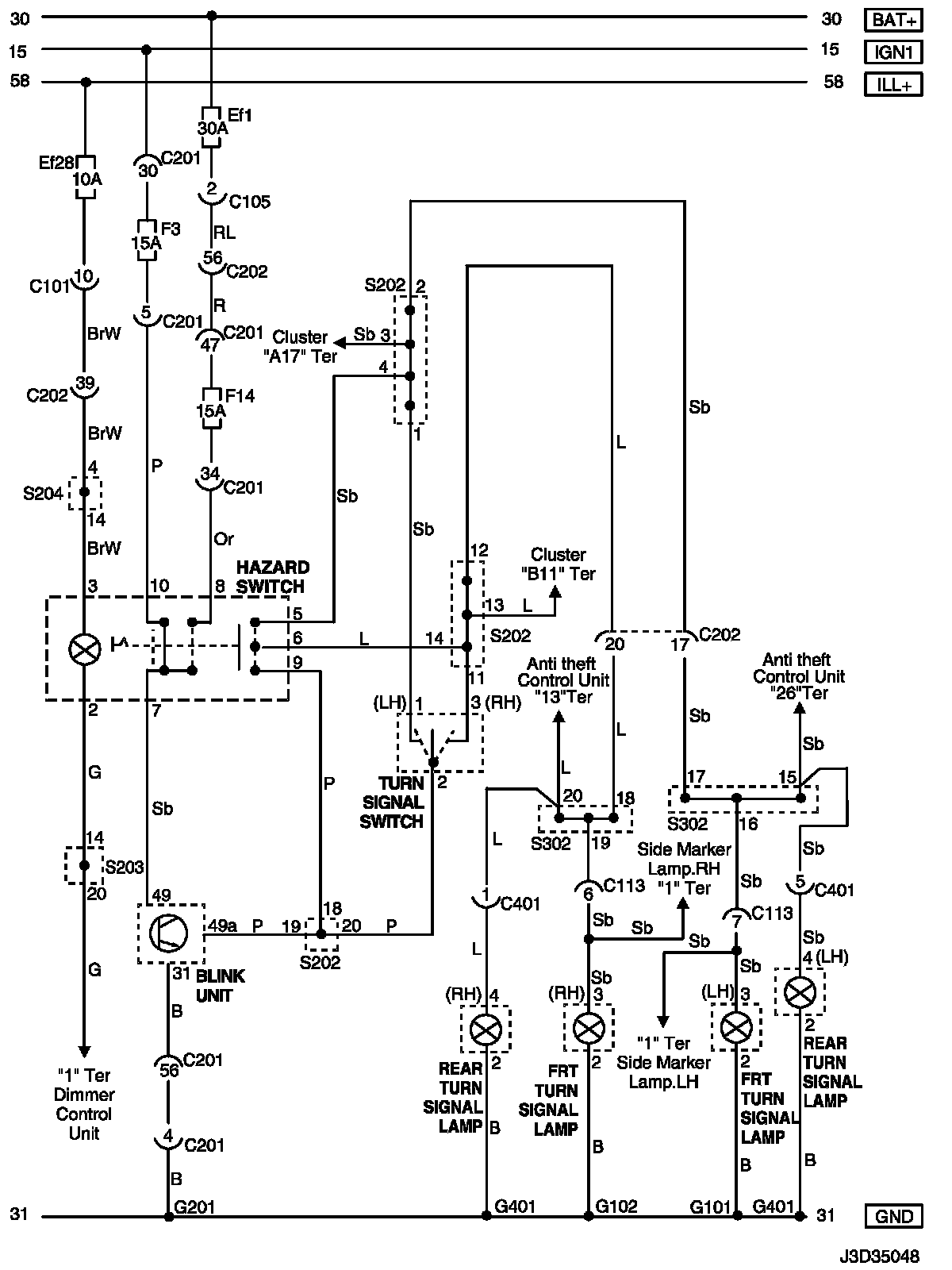

Hazard and Turn Signal Lamp Circuit Wiring Diagram(For NOTCHBACK Model)
Hazard and Turn Signal Lamp Circuit Wiring Diagram (For NOTCHBACK Model):
Connector Information
Connector Information:

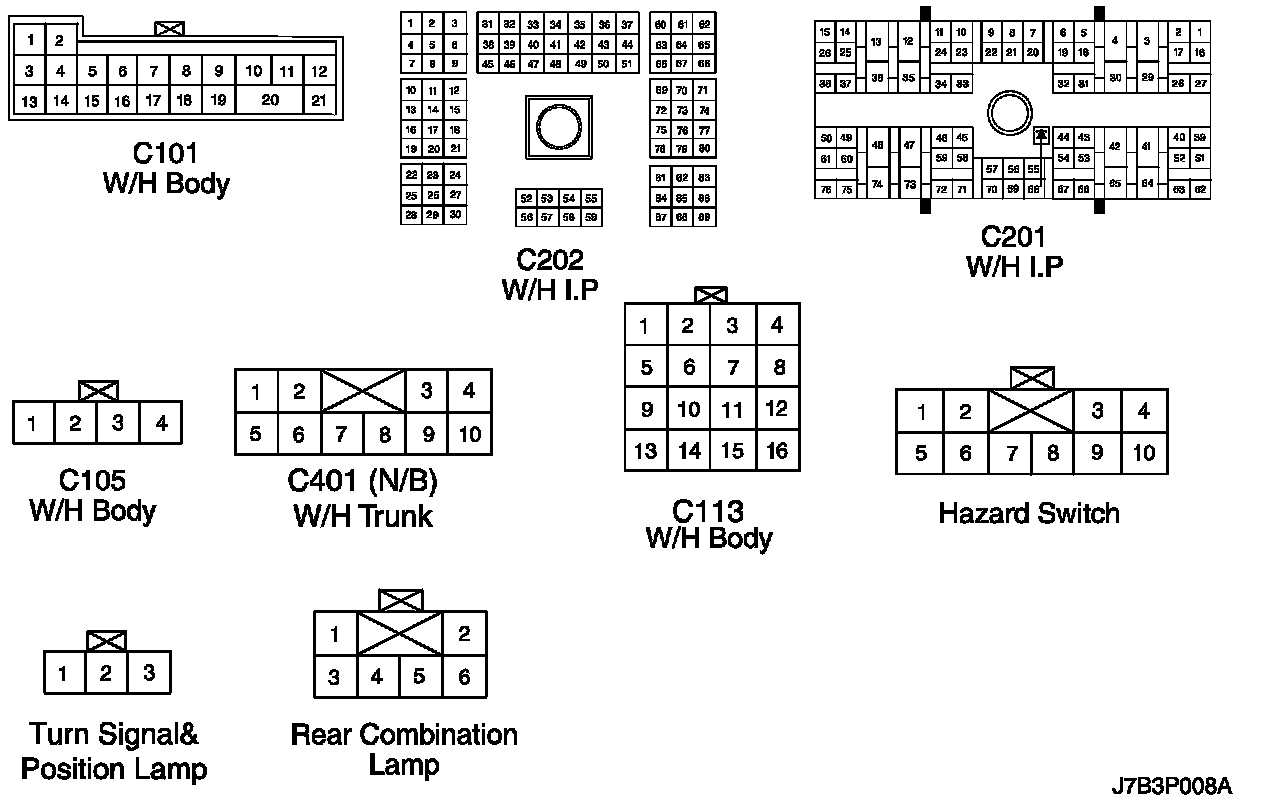

Connector Identification Symbol and Pin Number Position
Connector Identification Symbol and Pin Number Position:

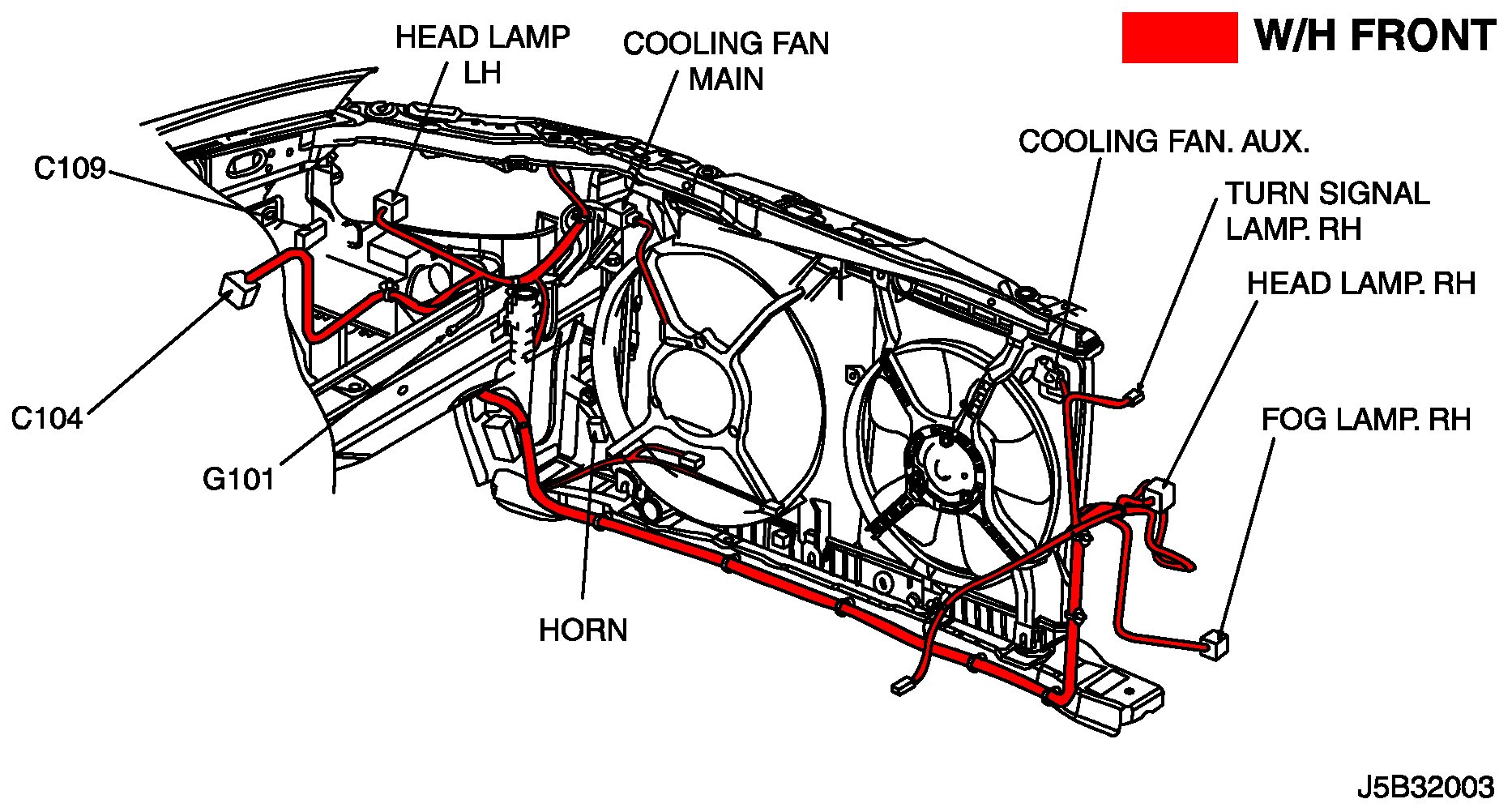

Position of Connectors and Grounds
Position of Connectors and Grounds - W/H Front:
Splice Pack
S202:
S203:
S204:
S302 (Notchback):
