Power Supply, Ground, PNP Switch, Brake Switch and Solenoid Valve Circuit

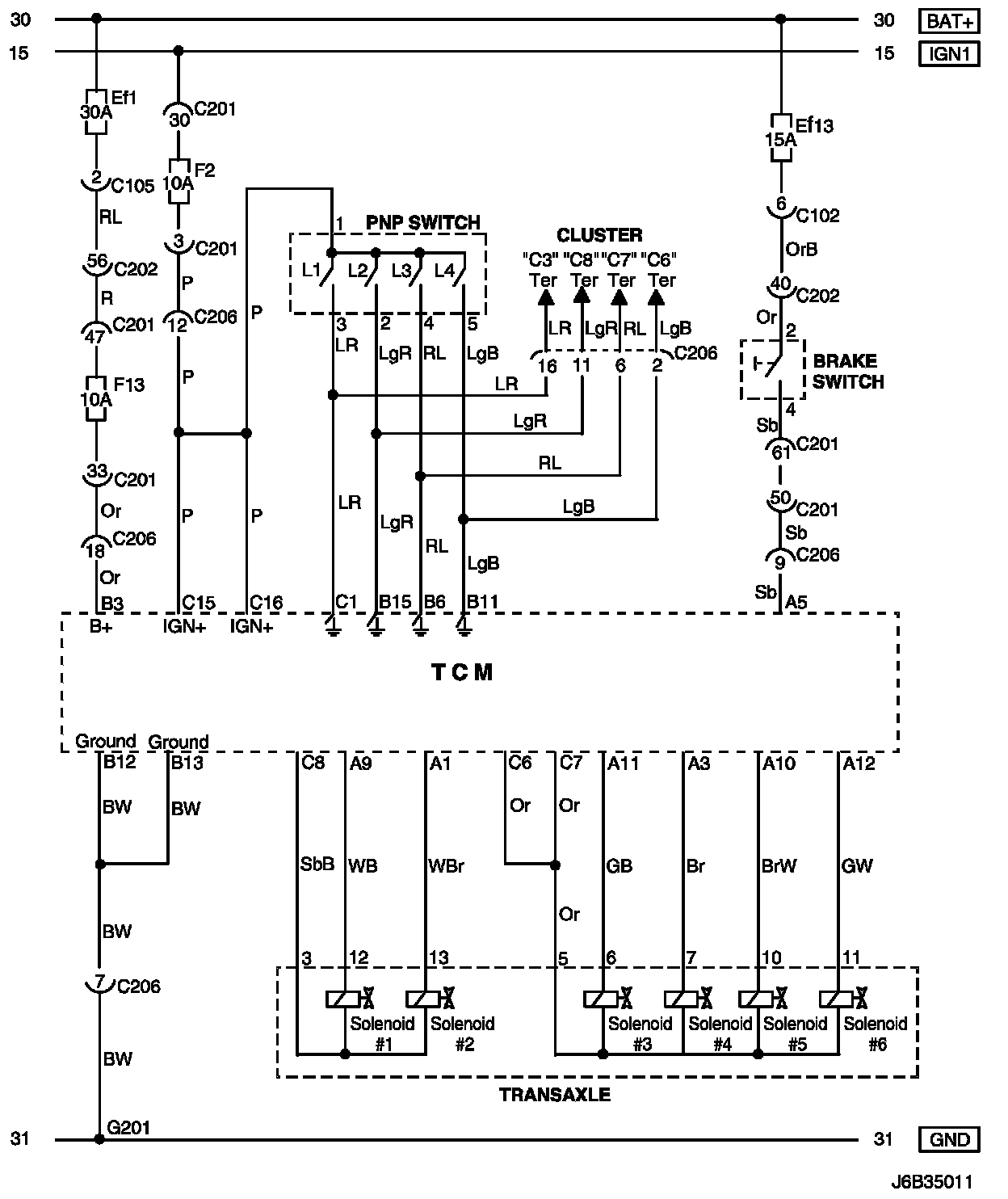

Power Supply, Ground, PNP Switch, Brake Switch and Solenoid Valve Circuit:

Connector Information:

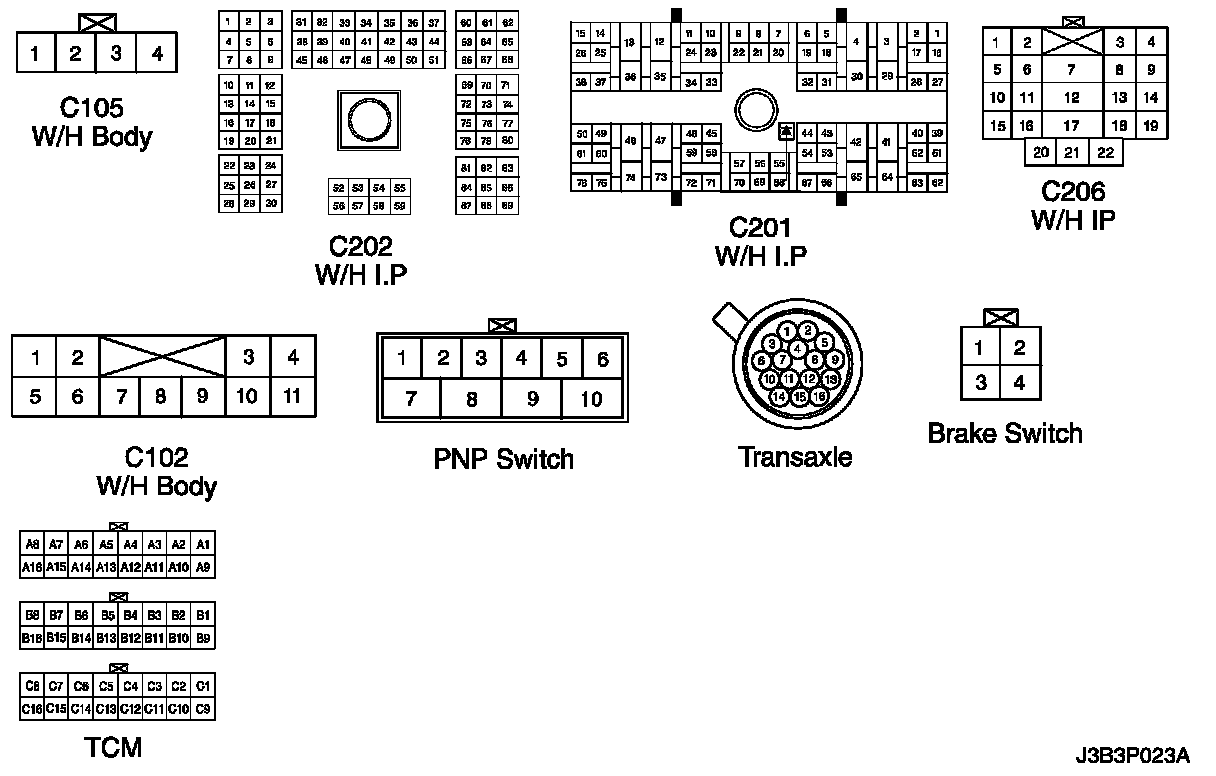

Connector Identification Symbol and Pin Number Position:

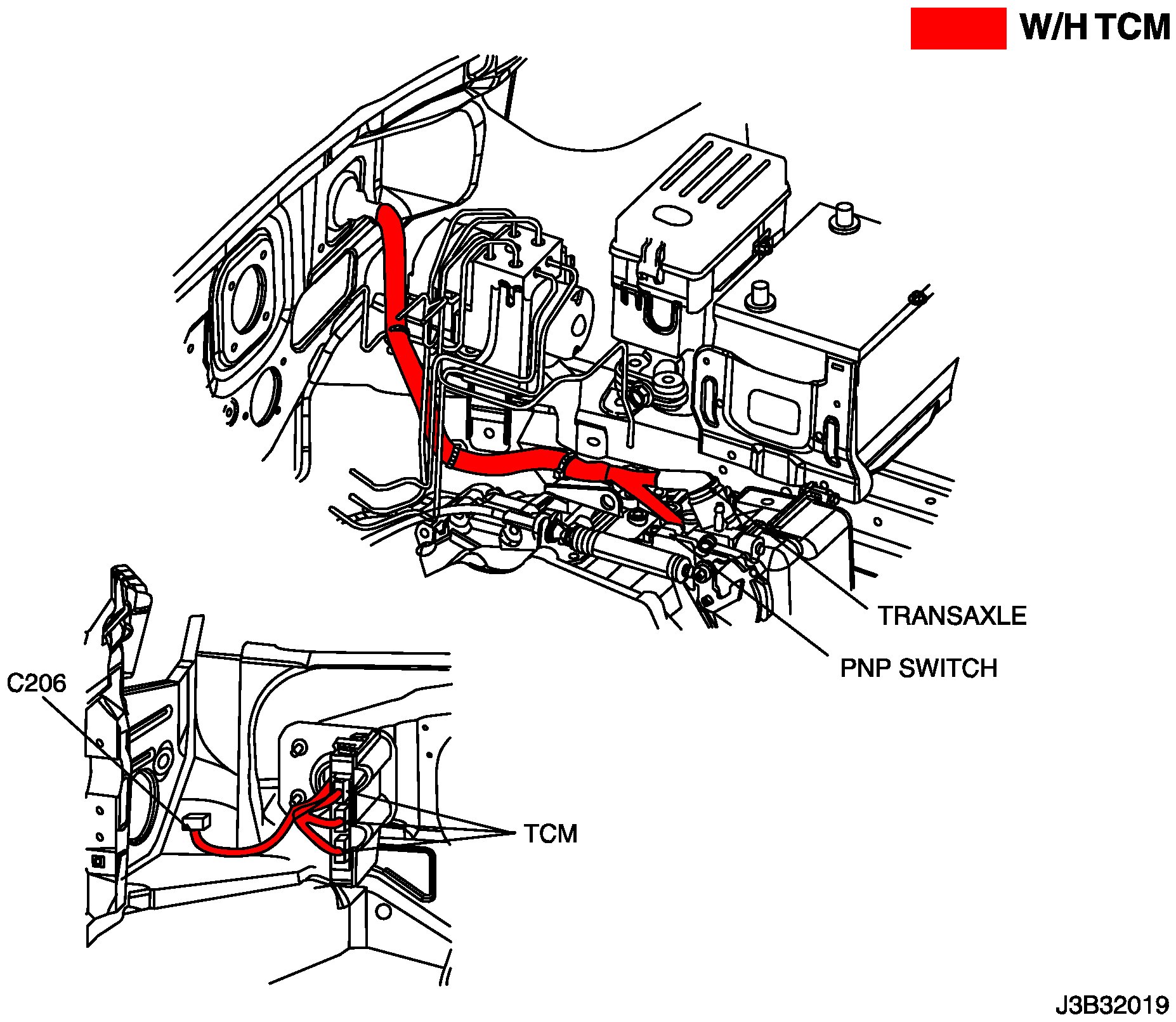

Position of Connectors and Grounds - W/H TCM:

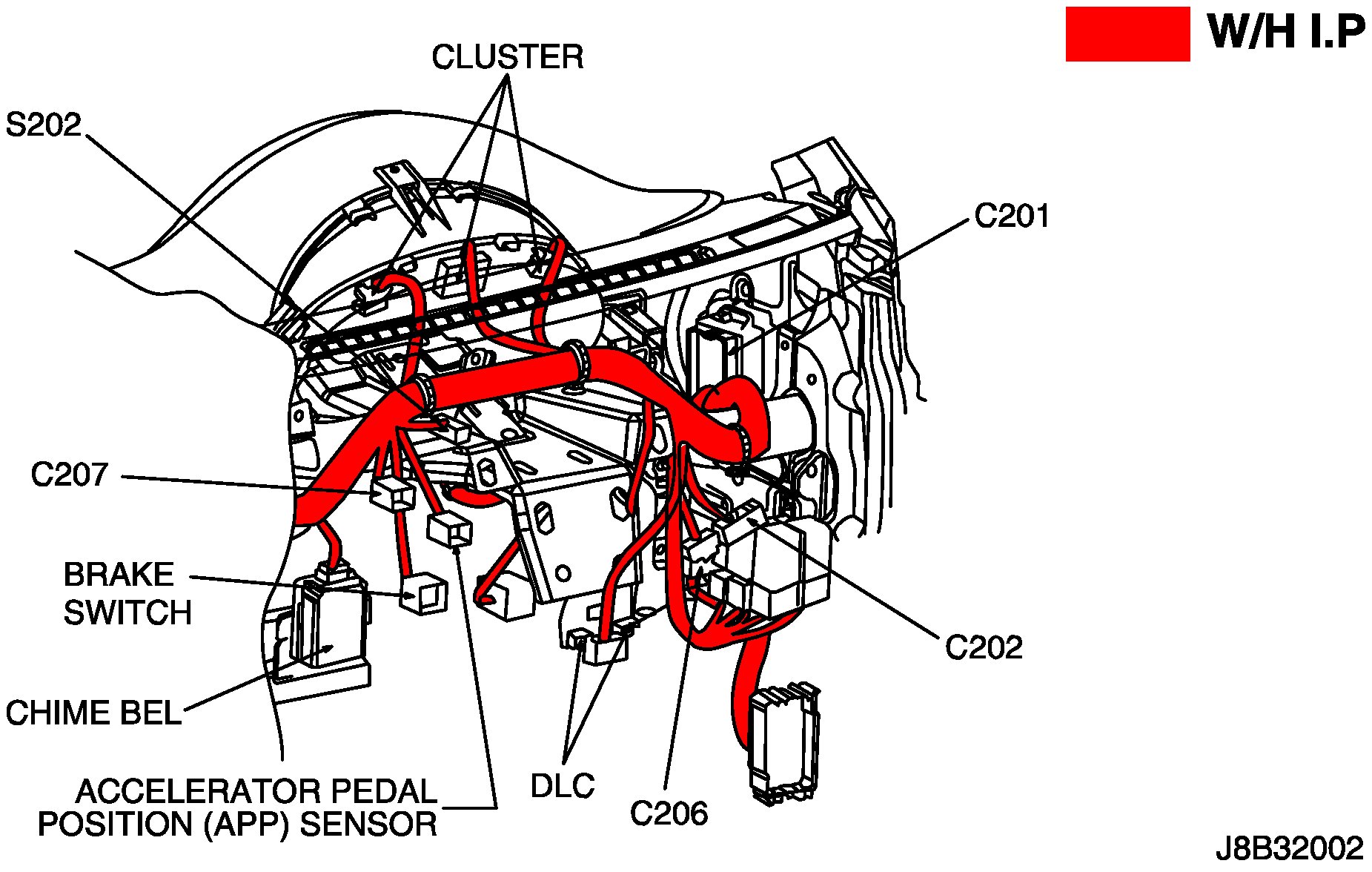

Position of Connectors and Grounds - W/H Instrument Panel (View 1):

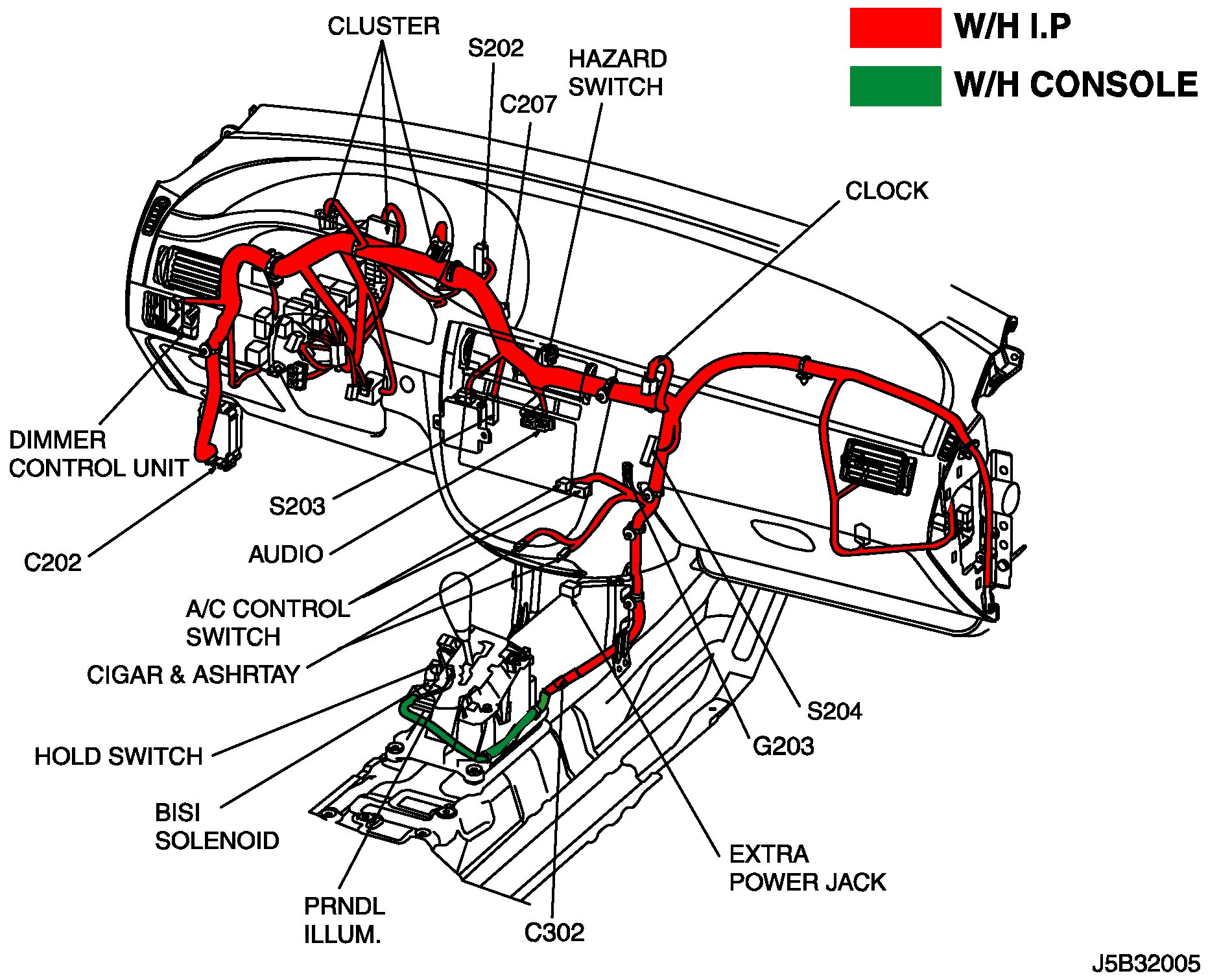

Position of Connectors and Grounds - W/H Instrument Panel (View 2):
