For Hatchback Model

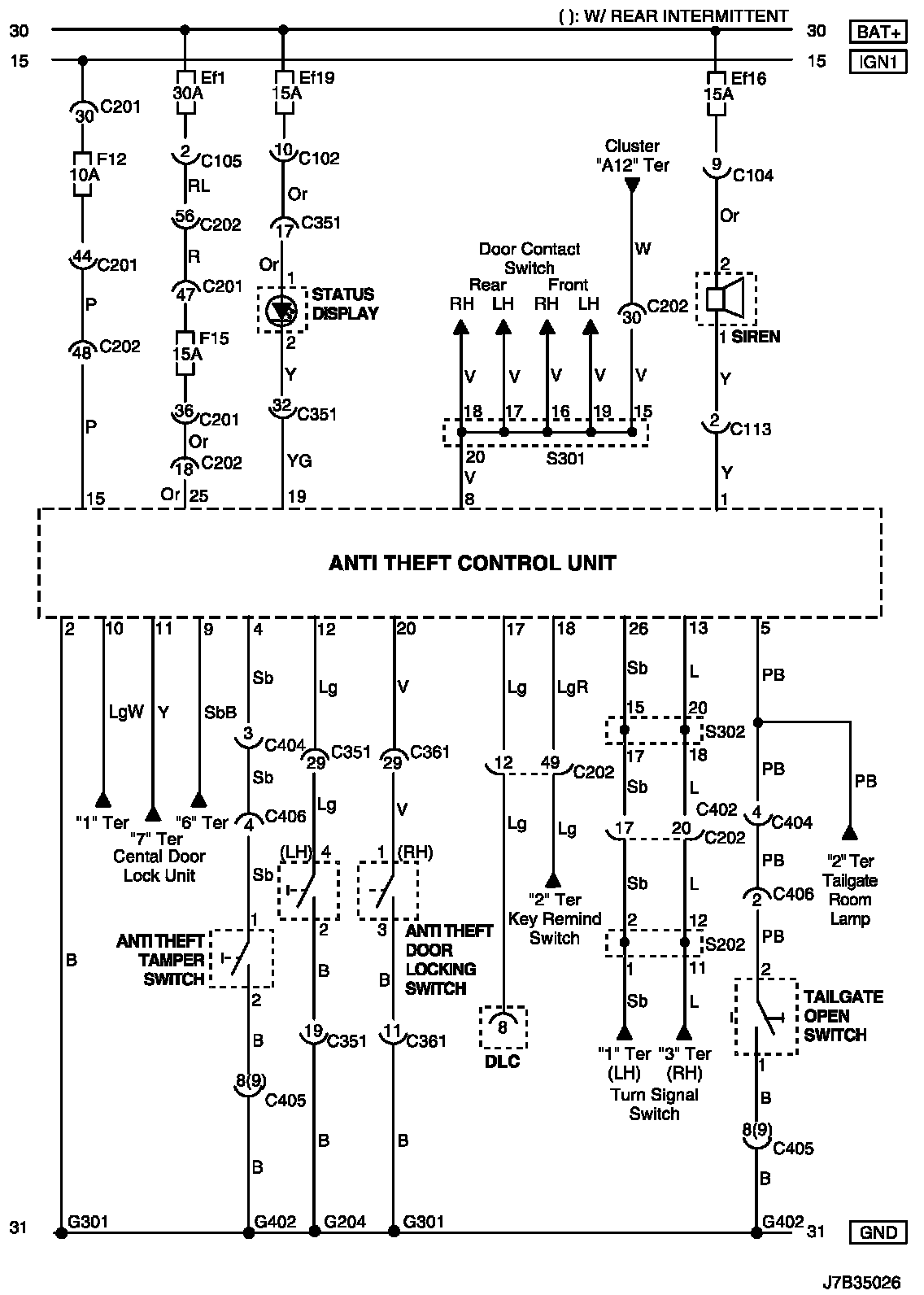

(For HATCHBACK Model)Anti Theft Control System Circuit Wiring Diagram (For HATCHBACK Model):

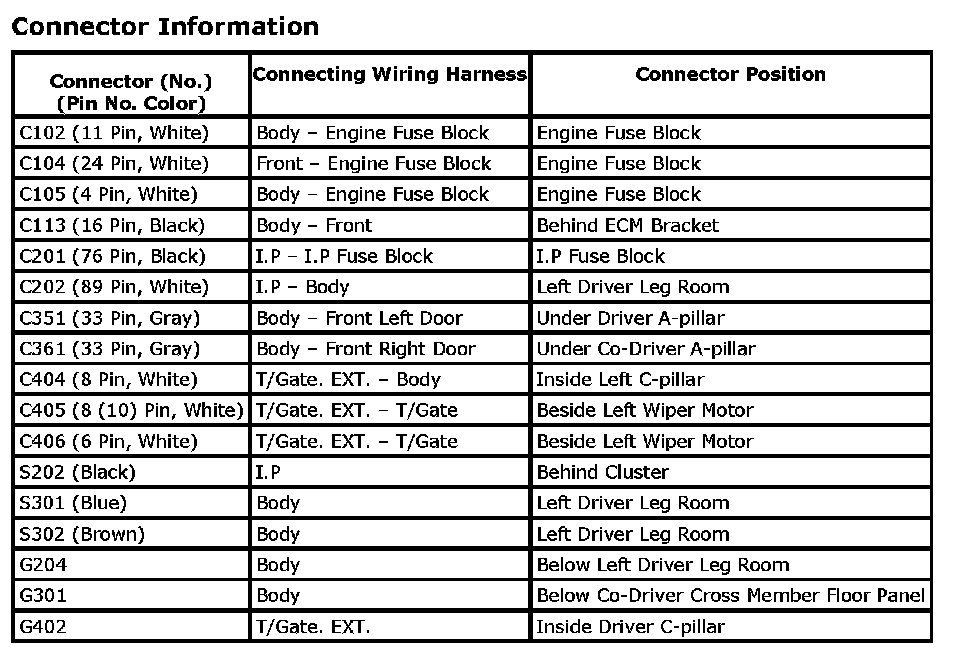

Connector Information
Connector Information:

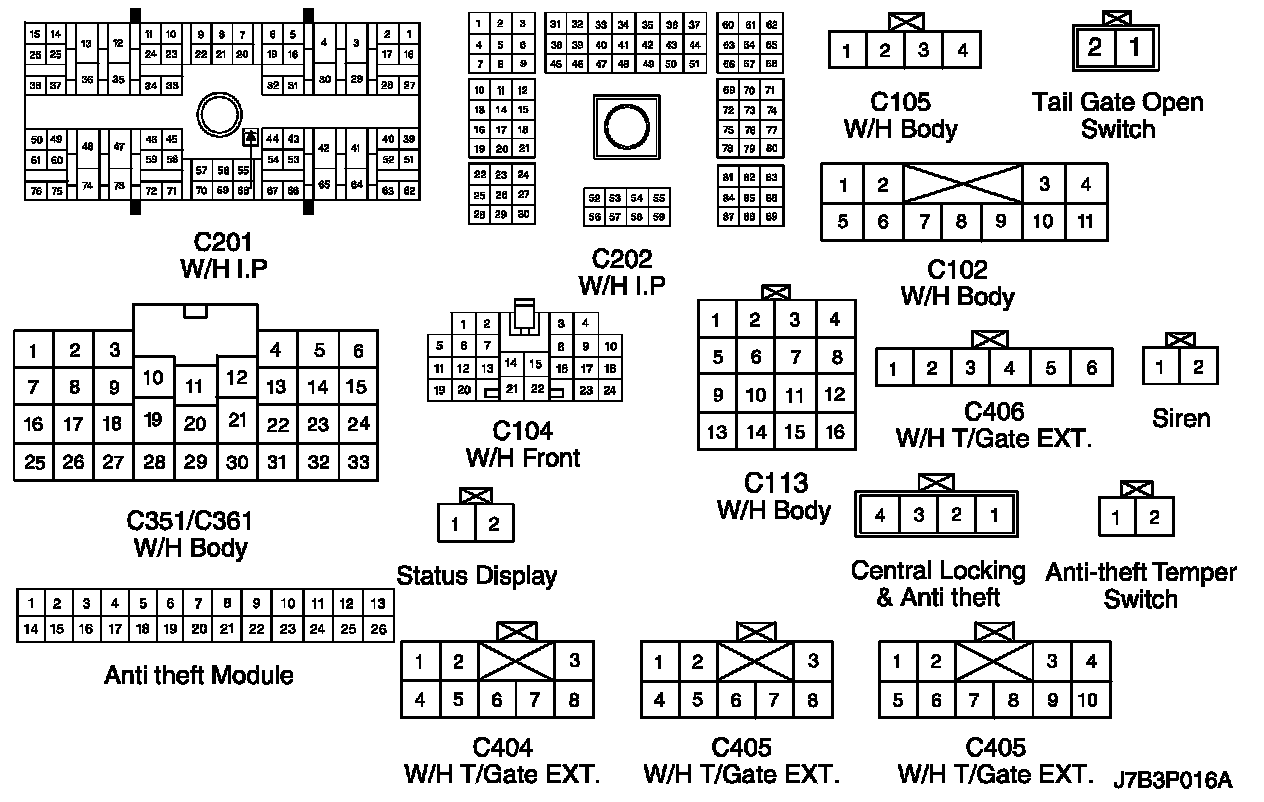

Connector Identification Symbol and Pin Number Position
Connector Identification Symbol and Pin Number Position:
Position of Connectors and Grounds

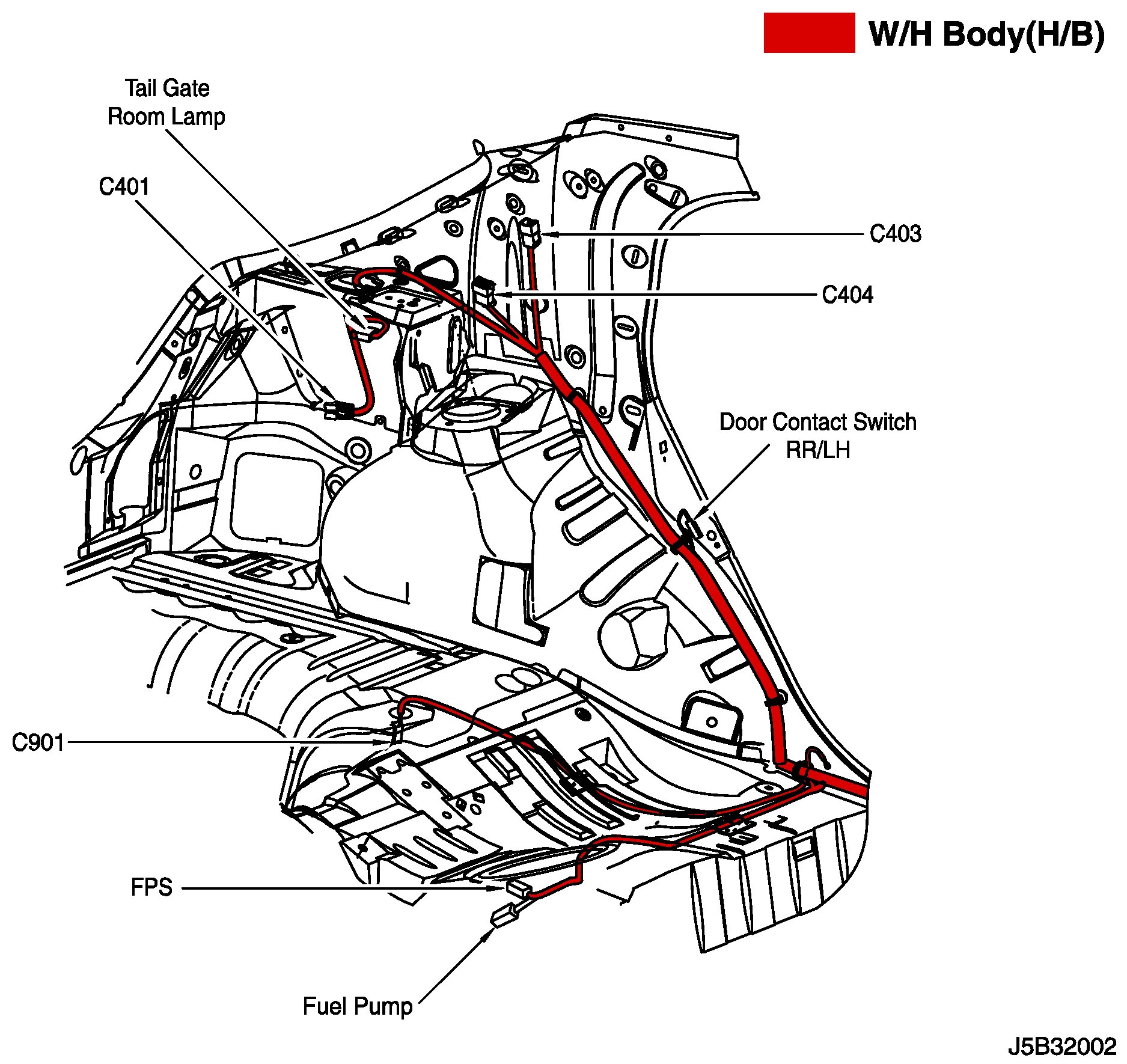

Position of Connectors and Grounds - W/H Body:

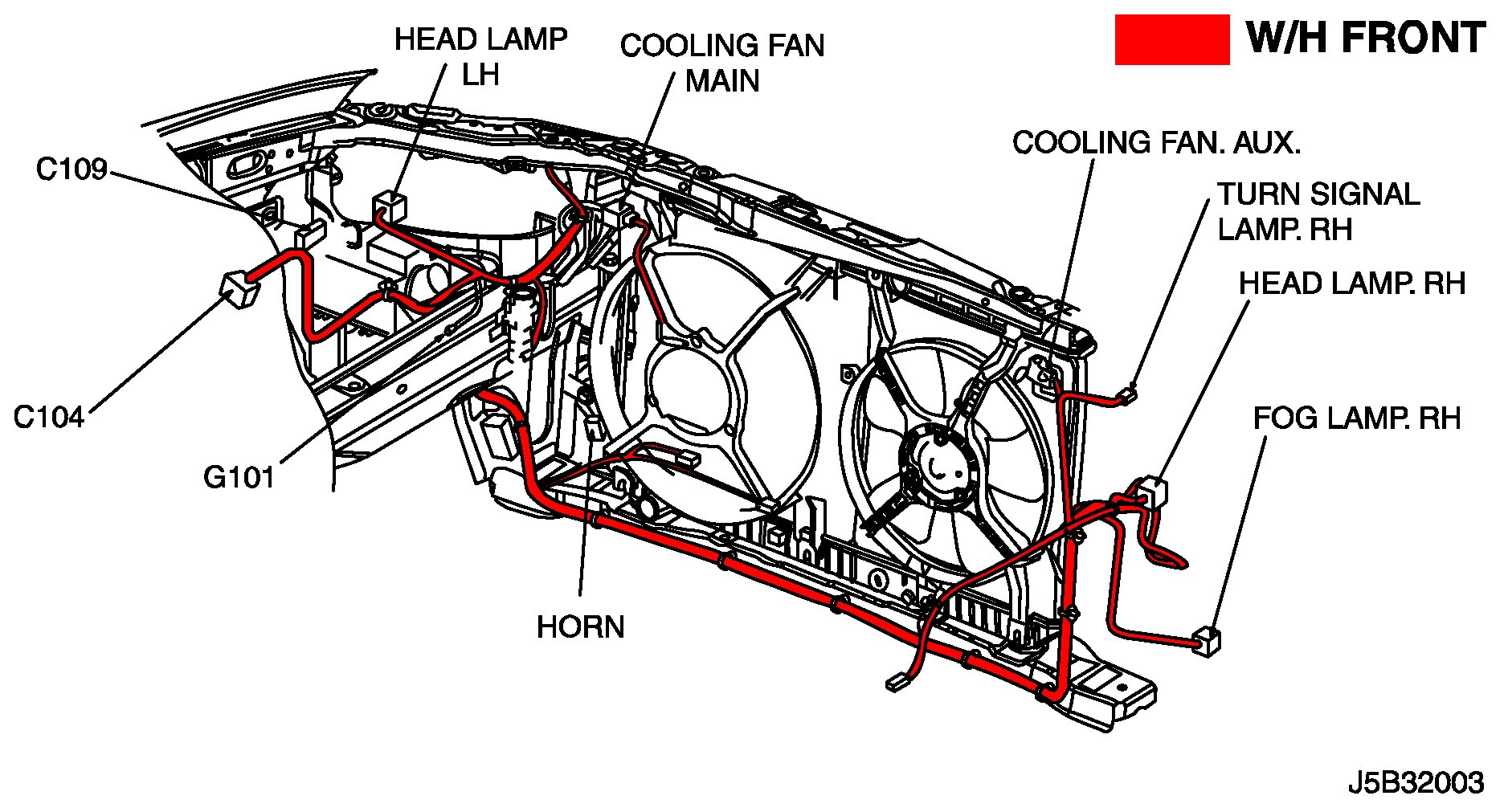

Position of Connectors and Grounds - W/H Front:
Splice Pack
S202:
S301 (Hatchback):
S302 (Hatchback):
