Suspension Control Arm Removal and Installation: Removal

Hoist vehicle and remove wheel.
Uncaulk drive shaft nut (1).
Depress foot brake pedal and hold it. Remove drive shaft nut (1).

Fig 1: Identifying Drive Shaft Nut
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect tie-rod end from steering knuckle referring to TIE-ROD END REMOVAL AND INSTALLATION .
Loosen ball joint nut (1).

Fig 2: Identifying Ball Joint Nut
Courtesy of SUZUKI OF AMERICA CORP.
Remove suspension control arm bolts (1).

Fig 3: Identifying Suspension Control Arm Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect ball joint from steering knuckle (2) with puller and then remove suspension control arm (2).

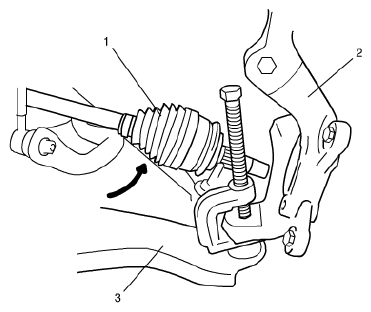

Fig 4: Disconnecting Ball Joint From Steering Knuckle With Puller
Courtesy of SUZUKI OF AMERICA CORP.
