Front Wheel Hub Assembly Removal and Installation: Installation

Insert new hub bolt (1) in hub hole. Rotate hub bolt slowly to assure that serrations are aligned with those made by original bolt.

Fig 1: Installing Hub Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Apply grease to end face of inner ring (2) before front wheel nub (1) installation.
CAUTION: Do not apply the grease to the encoder section to avoid the encoder malfunction.

"A": Grease 99000-25010 (SUZUKI Super Grease A)

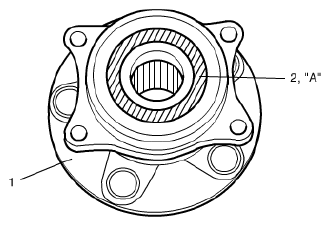

Fig 2: Applying Grease To End Face Of Inner Ring
Courtesy of SUZUKI OF AMERICA CORP.
Install wheel hub (1) and dust cover (2) to steering knuckle.
Tighten wheel hub housing bolts (3) to specified torque
Tightening torque

Wheel hub housing bolt (a): 50 N.m (5.0 kg-m, 36.5 lbf-ft)

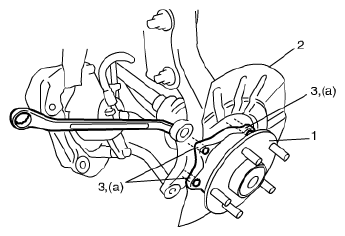

Fig 3: Tightening Wheel Hub Housing Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install brake disk and brake caliper.
Tighten caliper carrier bolt to specified torque.
Tightening torque

Caliper carrier bolt: 85 N.m (8.5 kg-m, 61.5 lbf-ft)
Install front wheel spindle (if equipped).
Depress foot brake pedal and hold it there. Tighten new drive shaft nut (1) to specified torque.
Tightening torque

Drive shaft nut (a): 220 N.m (22.0 kg-m, 159.5 lbf-ft)

CAUTION: Never reuse drive shaft nut (1).
Caulk drive shaft nut (1) as shown.

Fig 4: Caulking Drive Shaft Nut
Courtesy of SUZUKI OF AMERICA CORP.
Tightening wheel nuts to specified torque.
Tightening torque

Wheel nut: 100 N.m (10.0 kg-m, 72.5 lbf-ft)
