Front Suspension Construction

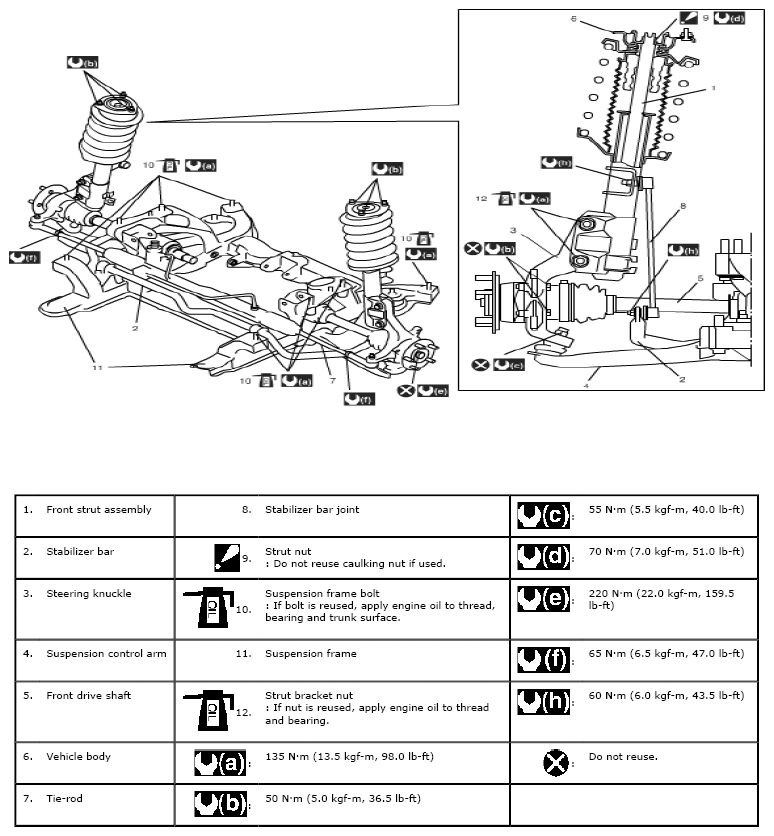

Fig 1: Identifying Front Suspension Components With Tightening Torques
G05472804Courtesy of SUZUKI OF AMERICA CORP.
