System and Wiring Diagram
WARNING:
This page is about a different car, the 2007 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

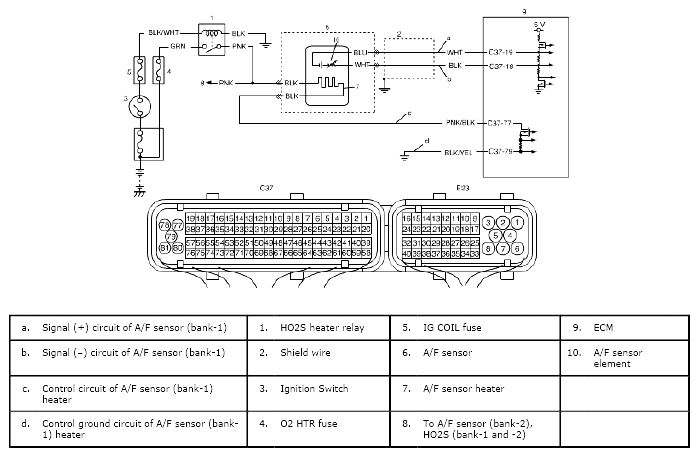

Fig 1: O2 Sensor Positive Current Control Circuit/Open (Sensor-1, Bank-1) Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
