DTC P0111: Intake Air Temperature Sensor Circuit Performance: Wiring Diagram

WARNING: This page is about a different car, the 2007 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

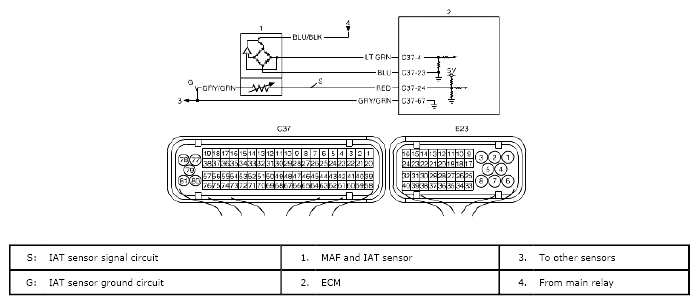

Fig 1: Identifying Intake Air Temperature Sensor Circuit Performance Wiring Diagram
G04824624Courtesy of SUZUKI OF AMERICA CORP.
