Reference waveform No.30

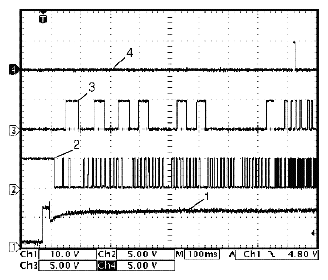

Start (1), CKP sensor (2), CMP sensor (3) and ignition coil No.1 (4) signals:
WAVEFORM REFERENCE
| Measurement terminal | CH1: C37-28 to C37-81 CH2: C37-47 to C37-81 CH3: C37-66 to C37-81 CH4: C37-15 to C37-81 |
| Oscilloscope setting | CH1: 10 V/DIV, CH2: 5 V/DIV, CH3: 5 V/DIV, CH4: 5 V/DIV TIME: 100 ms/DIV |
| Measurement condition | Engine is at cranking. |
