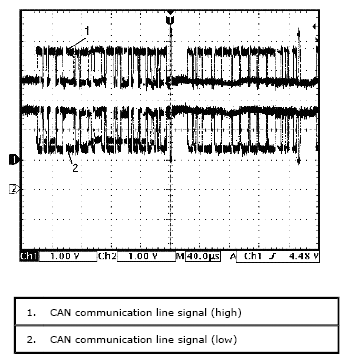

Reference waveform No.27
CAN communication line signals:
WAVEFORM REFERENCE
| Measurement terminal |
CH1: E23-9 to C37-81
CH2: E23-17 to C37-81 |
| Oscilloscope setting |
CH1: 1 V/DIV, CH2: 1V/DIV
TIME: 40 μs/DIV |
| Measurement condition |
Ignition switch is at ON position.
(Signal pattern is depending on communication data.) |
Courtesy of SUZUKI OF AMERICA CORP.
